| Prod Model: |
CLW Fire truck |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
Isuzu Water &Foam Fire Truck, Fire Fighting Truck |
| Fire Truck Tire: |
10.00-20 11.00-20 10.00r20 Fire Truck |
| Fire Truck Brand: |
Dongfeng, Faw, Sinotruk, Foton, Shacman |
| Fire Truck Horse Power: |
266HP 290HP 340HP 375HP 420HP |
| Fire Truck Type Of Upper Body: |
Water, Water Foam Tank, Dry Powder |
| Fire Truck Water Volume: |
5cbm, 6cbm, 7cbm, 5m3 7m3, 10m3 |
| Fire Truck Certification: |
ISO9000, CCC, Ts16949, EPA, EEC, RoHS, CE |
| Shipping: |
RO-RO |
| Warranty: |
1 Year for 3 Key Parts |
| Market: |
Global |
| Type: |
Tanker |
| Certification: |
CE |
| Volume: |
3001-5000L |
| Emission Standard: |
Euro 2 |
| Transmission Type: |
Manual |
| Engine Type: |
4 Stroke |
| Fuel: |
Diesel |
| Drive Wheel: |
4?รก2 |
| Horsepower: |
251-350hp |
| Condition: |
New |
| Payload: |
15t |
Product Description

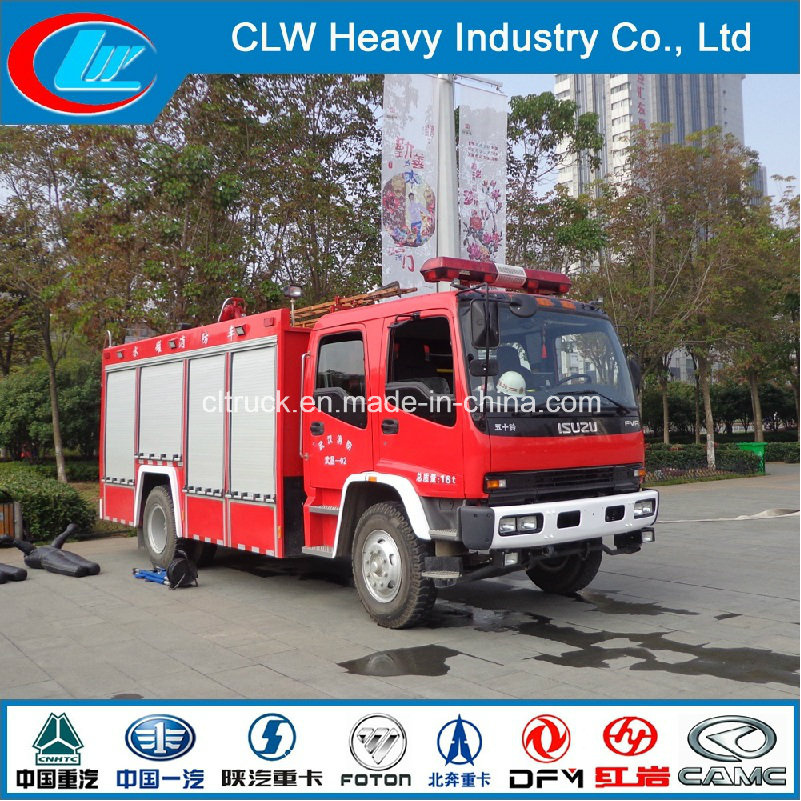

ISUZU Water &Foam Fire truck
Quick details of the Fire Fighting Truck:
1, ISUZU 4X2 fire truck
2, Gross Weight: 18750kg
3, Overall Dimension: 6205X1900X2700 mm
3, Cabin: 2 rows, 4 doors
4, Front/rear suspension: 1015/1830
5. Drive Mode: 4X2 LHD/RHD, Diesel Engine
6. Water and Foam: 6: 2, Gunshot>55 meters distance
We can offer 4X2, 6X4, 8X4,Isuzu dongfeng, Sinotruk, Foton, Shacman, Faw, CAMC, JMC, etc fire trucks.
Any require please don't hesitate to contact Yuki :+8618858011948/+8613872880232
Technique Parameters
| Description | ISUZU Water Fire Fighting Truck |
| Drive Model | 4X2 |
| Chassis | QL1050 |
| Capacity | Water:2000L |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 6205X1900X2700 |
| Wheel base (mm) | 3360 |
| Overhang (front/rear) (mm) | 1015/1830 |
| Wheel track (front/rear) (mm) | 1504/1425 |
| Approach/Departure angle(°) | 24/13 |
| Weight in KGS | GVW. | 4085 |
| Curb Weight | 2050 |
| Max. driving speed(km/h) | 90 |
| Engine | Model | ISUZU Engine:4KH1-TC |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 130 HP |
| engine capacity(ml) | 2999 |
| Emission standard | Euro III |
| Gearbox | 5 forwards & 1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 150 |
| Tire | 7.00R15tire , 6 + 1(spare) |
| Brakes | dual circuit compressed air brake |
| Cab | four doors, double row |
|
| Water tank material | high quality steel plate, antiseptic treatment |
| PTO | Type: Sandwich type (full power PTO).
Handle: Manual control
Cooling type: Forced water cooling, Splash lubrication |
| Piping Systerm | Suction pipeline, outlet pipeline, residual water pipeline and cooling water pipeline |
| Fire Pump | 1 . Tank capacity: 2000L
2 . Fire pump model:CB10/20
3 . The flow rate of fire pump: 20L/S
4 . Pressure of fire pump : 1.0mpa
5 . Fire cannon mode PS20
6 . Fire cannon flow:20L/S
7. Water cannon shot range : ≥50m
8. Water cannon pressure: 1.0Mpa |
| Other Equipment | 1,one ingate, with fast lock and open device
2,one overflow safety device and air breather
3,one fluid level gauge
4,one drain outlet, with ball valve, stainless steel valve element
5,two water filling nozzle outside of the tanker
6,one inlet piping connect to water tank and pump |
Contact Information
Sale Manager: Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing & Shipping
1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
