| Prod Model: |
CLW iSUZU FIRE TRUCK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
Isuzu Water &Foam Fire Truck, Fire Fighting Truck |
| Fire Truck Tire: |
10.00-20 11.00-20 10.00r20 Fire Truck |
| Fire Truck Brand: |
Dongfeng, Faw, Sinotruk, Foton, Shacman |
| Fire Truck Horse Power: |
266HP 290HP 340HP 375HP 420HP |
| Fire Truck Type Of Upper Body: |
Water, Water Foam Tank, Dry Powder |
| Fire Truck Water Volume: |
5cbm, 6cbm, 7cbm, 5m3 7m3, 10m3 |
| Fire Truck Certification: |
ISO9000, CCC, Ts16949, EPA, EEC, RoHS, CE |
| Water Tank Capacity: |
2000L |
| Water And Foam Ratio: |
6: 2 |
| Gunshot: |
>55 Meters Distance |
| Type: |
Tanker |
| Certification: |
CE |
| Volume: |
3001-5000L |
| Emission Standard: |
Euro 2 |
| Transmission Type: |
Manual |
| Engine Type: |
4 Stroke |
| Fuel: |
Diesel |
| Drive Wheel: |
4?รก2 |
| Horsepower: |
251-350hp |
| Condition: |
New |
| Payload: |
15t |
Product Description

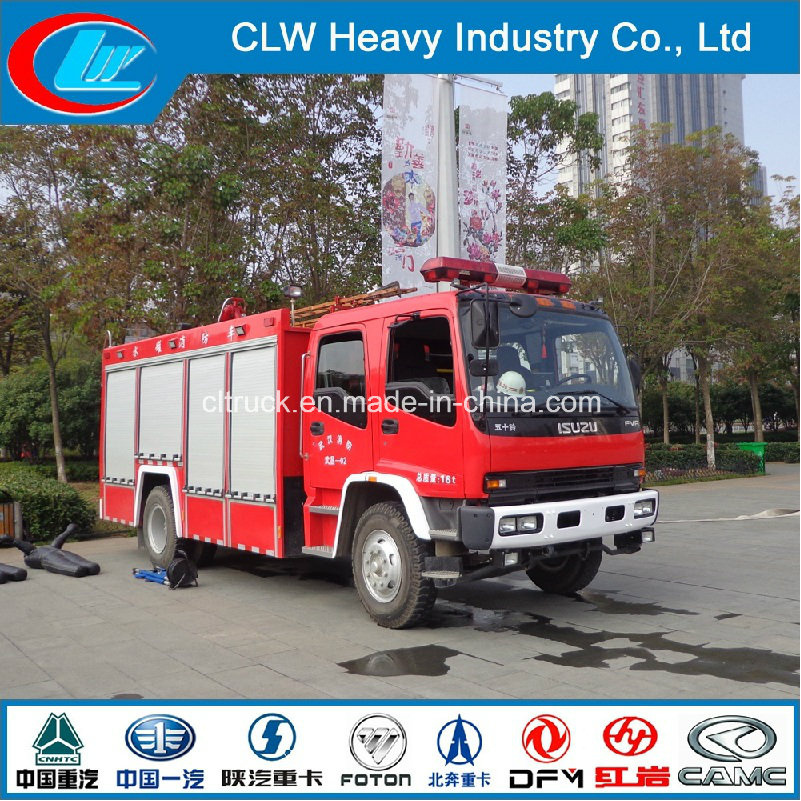

2015 NEW 4X2 water-foam fire Trucks ISUZU Fire Truck
Quick details of the Fire Fighting Truck:
1, ISUZU 4X2 fire truck
2, Gross Weight: 18750kg
3, Overall Dimension: 6205X1900X2700 mm
3, Cabin: 2 rows, 4 doors
4, Front/rear suspension: 1015/1830
5. Drive Mode: 4X2 LHD/RHD, Diesel Engine
6. Water and Foam: 6: 2, Gunshot>55 meters distance
We can offer 4X2, 6X4, 8X4,Isuzu dongfeng, Sinotruk, Foton, Shacman, Faw, CAMC, JMC, etc fire trucks.
Any require please don't hesitate to contact Yuki :+8618858011948/+8613872880232
Technique Parameters
| Description | ISUZU Water Fire Fighting Truck |
| Drive Model | 4X2 |
| Chassis | QL1050 |
| Capacity | Water:2000L |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 6205X1900X2700 |
| Wheel base (mm) | 3360 |
| Overhang (front/rear) (mm) | 1015/1830 |
| Wheel track (front/rear) (mm) | 1504/1425 |
| Approach/Departure angle(°) | 24/13 |
| Weight in KGS | GVW. | 4085 |
| Curb Weight | 2050 |
| Max. driving speed(km/h) | 90 |
| Engine | Model | ISUZU Engine:4KH1-TC |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 130 HP |
| engine capacity(ml) | 2999 |
| Emission standard | Euro III |
| Gearbox | 5 forwards & 1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 150 |
| Tire | 7.00R15tire , 6 + 1(spare) |
| Brakes | dual circuit compressed air brake |
| Cab | four doors, double row |
|
| Water tank material | high quality steel plate, antiseptic treatment |
| PTO | Type: Sandwich type (full power PTO).
Handle: Manual control
Cooling type: Forced water cooling, Splash lubrication |
| Piping Systerm | Suction pipeline, outlet pipeline, residual water pipeline and cooling water pipeline |
| Fire Pump | 1 . Tank capacity: 2000L
2 . Fire pump model:CB10/20
3 . The flow rate of fire pump: 20L/S
4 . Pressure of fire pump : 1.0mpa
5 . Fire cannon mode PS20
6 . Fire cannon flow:20L/S
7. Water cannon shot range : ≥50m
8. Water cannon pressure: 1.0Mpa |
| Other Equipment | 1,one ingate, with fast lock and open device
2,one overflow safety device and air breather
3,one fluid level gauge
4,one drain outlet, with ball valve, stainless steel valve element
5,two water filling nozzle outside of the tanker
6,one inlet piping connect to water tank and pump |
Contact Information
Sale Manager: Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing & Shipping
1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
FAQ
Q: What is your payment term?
A: We accept payment by T/T, L/C.
Q: How many trucks do you sell in 1 year?
A: Almost 20000-30000sets
Q: Is your factory a manufacturer or trading company?
A: We are the manufacturer, we are the biggest special trucks factory in China special truck base.
Q: Where is your factory located, can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park, suizhou city, Hubei Province, China, nearby Wuhan airport, we sincerely welcome you to visit!
Company Information
Our company is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
2015 NEW 4X2 water-foam fire Trucks ISUZU Fire Truck
We provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
2015 NEW 4X2 water fire Trucks ISUZU Fire Truck
WELCOME TO VISIT OUR FACTORY AND PLACE YOUR ORDER!
CLW Heavy Industry Co., Ltd is a top manufacturer producing over 800 kinds of special trucks.
CLW Heavy Industry Co., Ltd cooperates with famous enterprises, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON, CAMC, and etc.
CLW Heavy Industry Co., Ltd takes customer's satisfaction as the top requirement. All of the trucks and semi-trailer were sold to Kenya, Ethiopia, Nigeria, Tanzania, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle-east, South-east-Asia, African, South-African, Australia and so forth.
CLW Heavy Industry Co., Ltd export's turnover has reached 20million dollars and our products have been sold to more than 50 countries.
CLW Heavy Industry Co., Ltd Special automobile Co., Ltd also provide products as follows:
1. LPG Tank/LPG Skid Station/LPG Truck Trailer/ Fuel Tanker Truck
2. Tractor
3. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Van truck / Blasting equipment transporter/ Refrigerated truck
7. Cement Powder Tank truck/ Bulk cement truck
8. Garbage compactor truck, sealed garbage truck
9. Sweeper Truck
10. Concrete mixer truck/ asphalt distributor truck/concrete mixer pump truck
11. High-altitude truck/truck with crane
12. Chemical liquid transportation truck
13. Flat transportation truck/wrecker truck
14. Seage suction truck/Fecal suction truck
15. Semi Trailer Semi-trailer Semitrailer
16. All the spare part and accessories of the special truck and LPG products.
And so on
