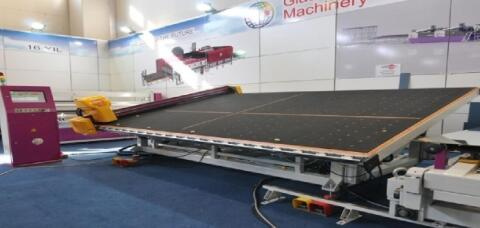

Integrated Glass Cutting Table
Price: |
US $ 12000-55000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |
Prod Model: |
NFI CT 3725 |
Power: |
380V |
Cutting Thickness: |
3-25mm |
Max Glass Cutting Size: |
2440mm*3660mm |
Cutting Speed: |
160m/Min |
Type: |
Glass Cutting Machine |
Certification: |
ISO |
Control System: |
PLC |
Product Description
Glass cutting machine Characteristic- Mn bridge steel (Q345A ), perfect surface treatment
- Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched
- Cutting pressure automatic adjusted according to glass thickness
- Cutter head 360 degree rotating
- Climbing wheels on the cutter head for protecting the cutter assembly and the glass
- Water proof surface panel, stainless steel side covered, water and deformation resisting
- High quality felt, perfect level, anti-static
- Automatic side locating system, pneumatic mechanical and photoelectric joint locating
- Self-lubricating guide rail
- Air filter for keeping the oil clean
- Air float and belt transmit
Linear guide rail Automatic oiling for transmission systemThe main performance of motion Controller (Galil)- Running fast, smooth operation, high precision control, the controller modular structure.
- Line cutting mode, optical positioning cutting mode, cutting mode directly by the option set free. Process can readily achieve automatic cutting mode with the dry run mode.
- After a full glass pressure store, disposable cutting thickness specifications of the input pressure to save, you can directly used.
- Machining path display real-time tracking and timely recording moving coordinate axis status, I / 0 status, fault diagnosis and alarm automatically record.
- Receive a variety of processing documents, accept standard G code Optima and other nesting software, AUTOCAD DXF file, the system comes with graphics editing software(Exactly the same way with Bottero editor).
- Security can be set under the knife away. Editing files can not trimming, improve the utilization of glass.
- Gallery nesting program, selected from the gallery shaped, set the relevant parameters, the number of processing, automatic nesting, generate toolpaths.
- Compensation: Tool eccentricity compensation, backlash compensation, pitch compensation.
- Optical positioning function (accurately determine the actual position of the glass), according to the actual position and the deflection angle, automatic adjustment of the cutting.
- Can be realized by setting options in English interface switching, and imperial, metric programming. Easy to use foreign users.
- Various protection: Includes soft and hard limit, blade pressure limit, external emergency stop control, etc.
- Speed increase / decrease buttons timely optimize machine cutting speed.
- Man-machine interface is simple and elegant, simple parameter adjustment, less need for the operator to modify the parameters, simple and intuitive, requiring low operating personnel.
- Find edge speed, back to zero faster.
- Cutting speed: 160m / min.
- Has a relatively rich graphics library, you can expand the gallery.
- Shaped scanning high precision, simple graphics can be saved directly processed.
- Cutting interface displayed directly cut a small piece size (with the OPTIMA software).
- Opened directly from within the software optimization software.
- Under the pipeline mode automatically wrap view of optimization software program, continuous processing.
- Fast patrol side positioning feature, you can grab a one-time patrol edge signal, improve work efficiency.
-

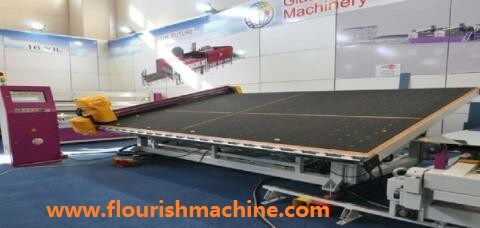

Integrated glass cutting machine/table photo

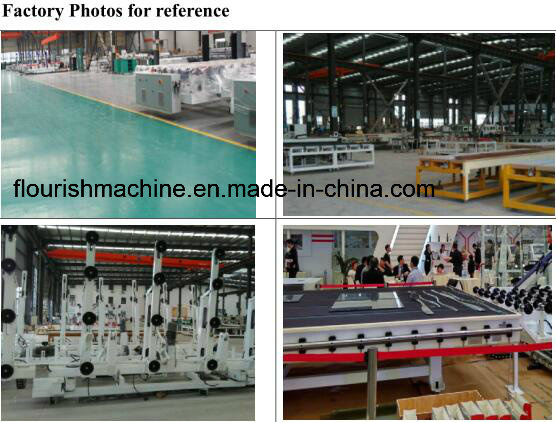

Nanjing Flourish International Company established in 2015, composed of three glass machine production factories and three glass processing factories with more than 20 years production and research, has developed into a giant group company integrating glass machinery and glass R&D, manufacturing and trade, is a leading enterprise in glass processing equipment and glass manufacturing. We stick to customer first, service foremost principle, providing excellent product at very competitive and reasonable prices. We focus both on good product quality and also heartfelt after sales service.
Our glass machine includes glass cutting machine (including whole line: Glass loading table, glass cutting table and glass break off table as well as integrated multi-function glass cutting table), glass washing machine both horizontal washing machine and vertical washing machine, glass edging machine, such as straight line bearing structure edging machine and straight line chain type edging machine as well as double edger and four side edging line, whole lamination machine including glass washing machine, glass pre-pressing machine, pneumatic sucker, film combination table and autoclave used for both architectural and auto glass production, bending furnace of single wagon, double wagons, triple wagons and series wagons, insulation machine/IGU line with full accessories, digital UV flat bed printing machine, silk screen printing machine and infrared drying line and 3D art machine etc, glass engraving machine, sandblast machine, glass drilling machine and acid etched machine as well as glass frosting machine, water jet, etc. Through over 20 year's development, we believe we can provide expert consultancy for both newly established glass processing factories and those old renovation glass processing factories to help them success in reputation and profits. All of our machines are certified by ISO9001, CE, etc.
Our three glass processing factories are located in Jinan, Nanjing and Wuxi, we produce building/architectural glasses such as tempered glass, laminated glass, insulating glass, tempered laminated glass, tempered insulated glass, lowe insulated glass, silkscreen/serigraph glass, colorful ceramic glass, bulletproof glass, fireproof glass, frost glass, stained glass, patterned/figured glass, acid etched glass and various types of art glasses etc. Our glasses are widely used for glass faç Ade, glass curtain wall, handrails, elevators, ceilings, floors, partitions, windows and doors, balconies, railways, sound barriers, bathrooms, furniture and electric appliance etc., Our glass service has also expanded to hardwares like spiders, spigots, hinges and locks, as well as handrail hardwares. We are certified by ISO9001, China national safety authentication of "CCC", CE certification, Australia AS/NZS2208 and USA SGCC standards etc.
All of our products are well exported to almost all countries and regions such as Germany, France, Italy, Netherlands, Belgium, the United States, United Kingdom, Holland, Singapore, Honking, Malaysia, Canada, Vietnam, India, Dubai, Kenya, South Africa and some other Middle East and Asian counties etc.
We sincerely welcome you to contact us for more information regarding glass machine and glasses or accessoris. We will provicde expert advice for you in terms of factory layout, machine/glass procurement, glass installations. etc., Our goal is to get win-win result.
