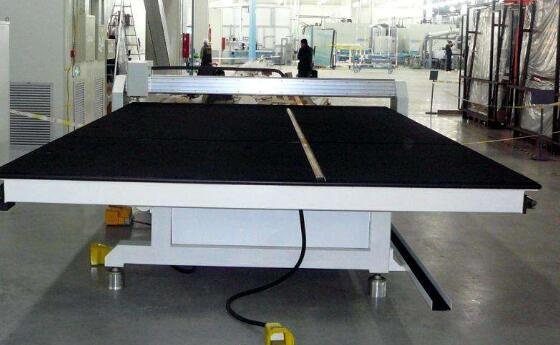

Semi-Auto Glass Cutting Table 2621

Semi-Auto Glass Cutting Table 2621
Price: US $ 6000-9000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Max Cutting Speed (M/Min): 0-200 (Adjustable)
Cutting Accuracy (mm/M): ± 0.20
Glass Cutting Thickness(mm): 2-25mm
Voltage (V): 220V/380V (Three Phases)
Min. Glass Size: 20*20mm
Overall Dimension: 2800*2300*1500mm
Weight: 2800kg
Type: Glass Cutting Machine
Control System: PLC

Product Description




Introduction
Thanks to advanced foreign technology and imported components, the machine can be used for precise and fast cutting of different shapes of glasses and mirrors in accordance with programmed Auto CAD drawings. Due to good strong steel plates, the machine is featured with rigid structure, which guarantees high cutting precision and fast cutting speed. It can be used to cut different glasses and mirrors used for building, furniture, mirror, round shape, clock and artwork glass etc. It's a good choice for you to use our cutting machine due to its good function, advanced technology and sound cutting performance.

CharacteristicsAir filter for keeping the oil clean
Table size2600*2100mm
Thickness of cutting glasses3~19mm
Accuracy≤0.15mm
Speed0~180M/min(adjust as you need)
Machine size3100(L)*2400(W)*1400(H)mm
Height900±30mm
TransmissionX,Y,Z axis is Japanese YASKAWA and KHK Precision gear device
Cutting setadopt air press and spring; 360 degree's cutting head turn, up and down cutting. Available of any shapes of glass
Oil supplyautomatic oiling device. Oil hydraulic adjustable.
Positioning deviceoptical scanning positioning system
Personnel requirementsrequirements: knowing basic knowledge of cutting and computer operation

,,XY,.CNC,.

Put glasses onto the cutting table and move glass to the cutting position. The cutting head will move in X and Y axis to imitate cutting, after imitating success, the real cutting will be performed. Its CNC controlled and is driven by advance servo motor.

Machine weight: 1300kg

:≤±0.10mm/m

Parallel: ≤±0.10mm/m

PVC:1.5-3MPa

Table PVB harness: 1.5-3MPa

:15

Cutting precision: 0.15mm

:60/()

Cutting speed: 60m/min

:

Rail: imported rails

:

Electric components: Schneider

:B0HLE

Cutting tool: Germany BOHLE

:

Control system: Xionghong

:CAD,

Software: CAD software, servo motor
