| Prod Model: |
Ceramic Infrared Heating Tube |
| Infrared Heater: |
Ce Certified Infrared Ceramic Heating Lamps for SA |
| Body: |
Carbon Silicone Ceramic Material |
| Heating Wire: |
Nickel Chrome Wire |
| MOQ: |
1 Piece |
| Warranty: |
1 Year |
| Diameter: |
8mm-20mm |
| Voltage: |
220V-240V |
| Wattage: |
Customized |
| Radiant Heater: |
Far Infrared Ray |
Product Description
CE Certified Infrared Ceramic Heating Lamps for SaunaSimple Intruction for far infrared ceramic heater1. This is a pipe heater, tube heater. Black body and white body are available. 2. This is the most advanced fast heating element.
It's better than quartz heater.
It absorbs far infrared ray, wavelength of 3 μ~ 50 μ is optional.
3. It is often used in Sauna Room and as drying heating element for Drying machine.
4. Diametr of tube heater, 10mm, 12mm, 14mm, 16mm, 20mm.
Special diameter, we can produce them as your requirement, customized far infrared ceramic radiant heater.
Detailed introduction for far infrared ceramic heater
The blackbody pipe heater is a kind of the most advanced fast heating element for heating and drying which is latest invented nowadays and praised as the pioneer of the heating and drying technology in the industrial and scientific communities. This product is suitable for being used in the shoe-making industry, industrial baking varnish, printing machinery, packing machinery, food roaster and household warmer, etc and achieves good results. So far our company has produced blackbody tubes with the tube diameters of 10mm,12mm, 14mm, 17mm and 20mm, whose total length and power can meet the requirements of customers.
Advantags of far infrared ceramic heater| 1 | faster heating drying time and save energy | 1-10 times faster, 30%-50% save energy |
| 2 | reduce equipment heating | more than half |
| 3 | no chance to open fire | safe and durable |
| 4 | heating distribution | uniform |
| 5 | no dust, no harmful gas | It's easy to maintain and replace |
| 6 | easily operation | automatic control with lower cost, higher efficiency |
Product specification sheets for Electric Tube Heater| Size (mm) | Voltage (customized) |
| Diameter | 12(φ) | 14(φ) | 17(φ) | 20(φ) |
| 316 | 200 | 200 (W) | 300 (W) | 400 (W) | 450 (W) |
| 416 | 300 | 300 (W) | 450 (W) | 550 (W) | 600 (W) |
| 516 | 400 | 400 (W) | 600 (W) | 700 (W) | 800 (W) |
| 616 | 500 |
| 750 (W) | 850 (W) | 1000 (W) |
| 716 | 600 |
| 850 (W) | 1000 (W) | 1200 (W) |
| 916 | 800 |
| 1100 (W) | 1300 (W) | 1500 (W) |
| 1116 | 1000 |
|
| 1700 (W) | 1900 (W) |
| 1316 | 1200 |
|
| 2000 (W) | 2300 (W) |
| 1616 | 1500 |
|
|
| 2800 (W) |
| 1916 | 1800 |
|
|
| 3300 (W) |

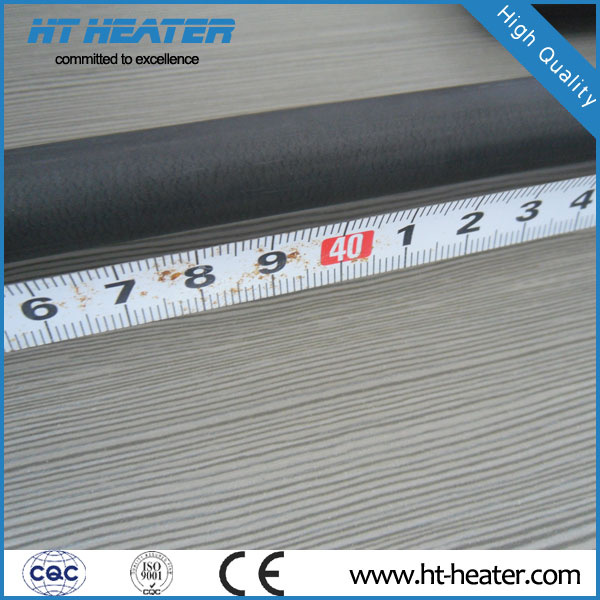

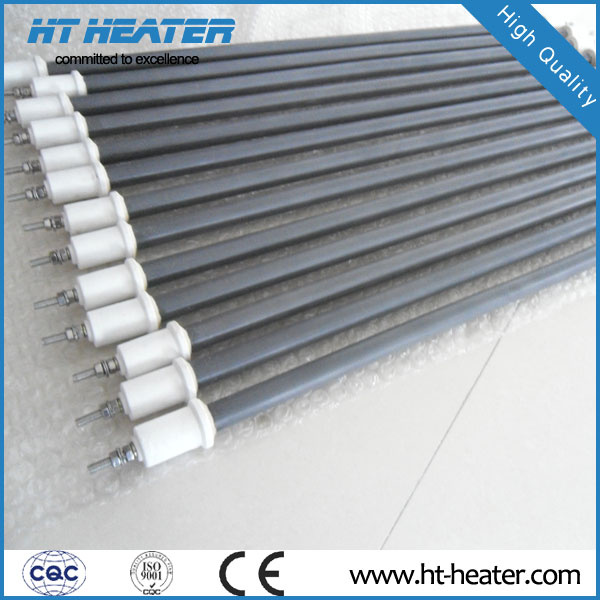

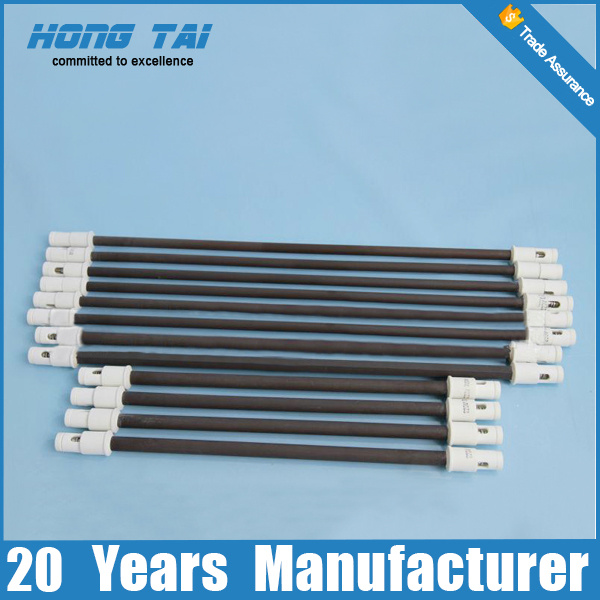

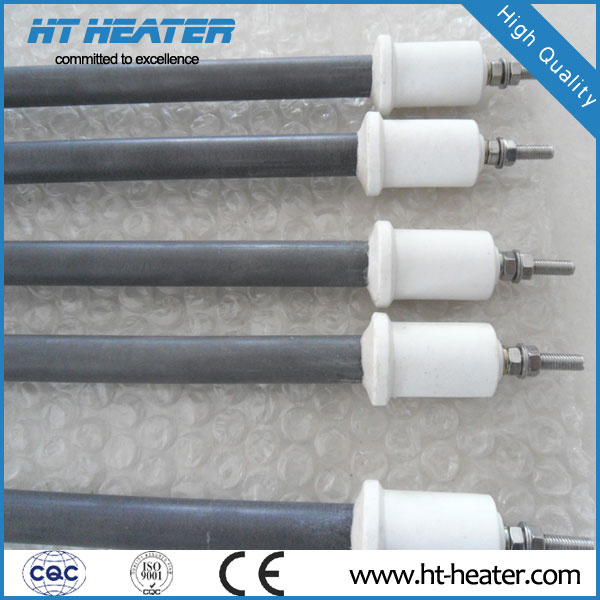

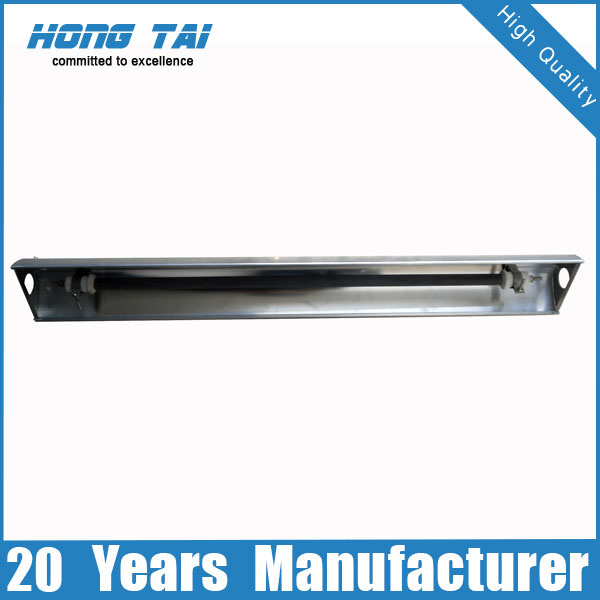

Show of far infrared ceramic heater

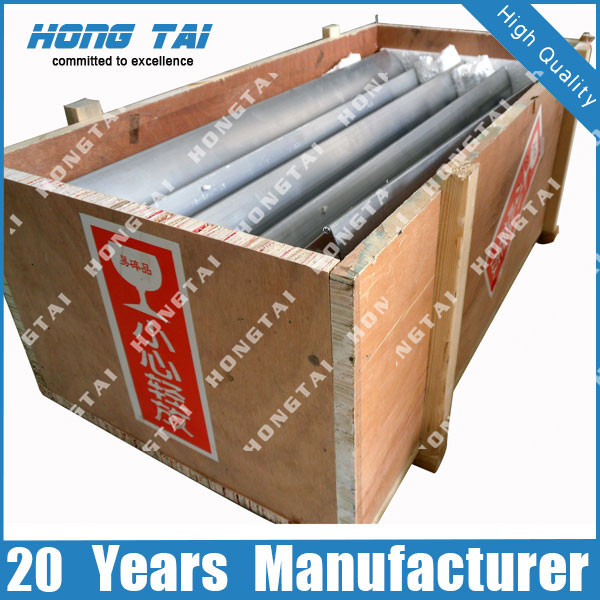

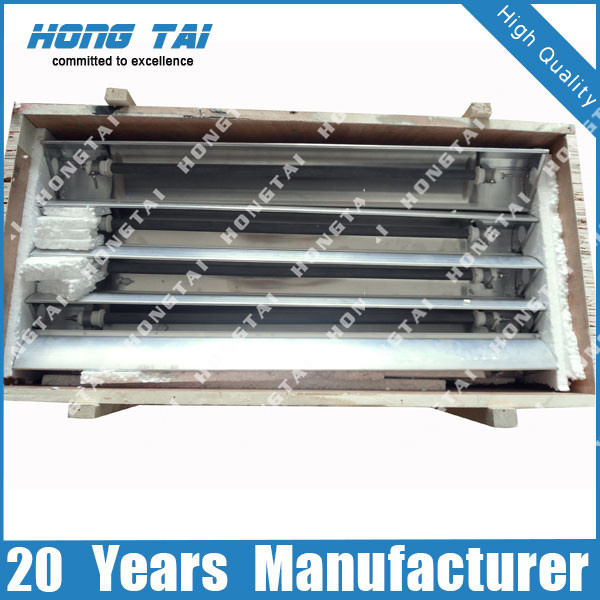

Package
