| Prod Model: |
HT-FIC Ceramic Tube Heater |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Infrared Heater: |
Ceramic Tube Heater |
| Diameters: |
10mm/12mm/14mm/17mm/20mm |
| Material: |
Ceramic |
| Far Infrared Ray: |
3~50 Um |
| Energy Saving: |
30%-50% |
| Reflection: |
Aluminum Case |
| Power: |
300W/500W |
| MOQ: |
1 Piece |
| Sauna Room: |
Heating and Drying |
| Paint: |
Automobile Bodywork |
| Application: |
Heater |
| Structure Material: |
Ceramic |
| Heat Transfer Surface: |
Tubular Heat Exchanger |
| Principle: |
Far Infrared Heating |
Product Description
Ceramic Tube HeaterFar Infrared Radiation Ceramic Tube Heater
Simple Intruction for far infrared ceramic heater
1. This is a pipe heater, tube heater. Black body and white body are available.
2. This is the most advanced fast heating element.
It's better than quartz heater.
It absorbs far infrared ray, wavelength of 3 μ~ 50 μ is optional.
3. It is often used in Sauna Room and as drying heating element for Drying machine.
4. Diametr of tube heater, 10mm, 12mm, 14mm, 16mm, 20mm.
Special diameter, we can produce them as your requirement, customized far infrared ceramic radiant heater.
Detailed introduction for far infrared ceramic heater
The blackbody pipe heater is a kind of the most advanced fast heating element for heating and drying which is latest invented nowadays and praised as the pioneer of the heating and drying technology in the industrial and scientific communities.
This product is suitable for being used in the shoe-making industry, industrial baking varnish, printing machinery, packing machinery, food roaster and household warmer, etc and achieves good results.
So far our company has produced blackbody tubes with the tube diameters of 10mm,12mm, 14mm, 17mm and 20mm, whose total length and power can meet the requirements of customers.
Advantages of Blackbody Tube
This product adopts blackboby radiation electrothermal tube, which is a kind of high
tech product developed by Yancheng Hongtai Company.With radiation penetrating function
it can make high polymer glue vibrate,dry from outside to inside,quicken temperature rise and shorten drying time,so it can be used for adhering sole with even better combinability ,even higher tension and even higher attachment
* Its heat treatment is 1~10 times faster than that in general way, and it can shorten heating time by a big margin and save electric energy by 30%~50% or so.
* The volume of the equipment can be reduced by more than half.
* It can not produce open fire and it has such characteristics as high safety and durability.
* The temperature of the heated thing is uniform.
* Without dust or harmful gas, it is easy to maintain and replace.
* Easy Operation, Automatic Control, Low Cost and High Efficiency.
Use of Blackbody Tubes
Drying:
Low-temperature Drying of Leather, Wood, Precious Metal, Plywood, Fibre, Printing and Dyeing Product, Film, Paint, Ceramic Glaze, Medicine, Paper, Printed Matter, Food, Fertilizer, Granule, Powder Product, Agricultural Products, (Taro Grass, Jew's-ear, Vegetable, Rice Hull...), Seafood , (kelp, Squid, Dried Scallop...) .
Baking Varnish and paint:
Baking Varnish of Car body, Motorcycle, Bicycle, Metal Furniture,Sewing Machine and Refrigerator, etc.
Heating:
Forming and Hardening, Processing and Preheating of Plastics, PS and ABS Fiber.
Sterilization:
Drug, Food, Packing Container, Dining Utensils (Dining Room, School, Army and Factory), Medical Apparatus and Instruments.
Heat Preservation /Dehumidifying:
Heat Preservation and Dehumidifying of Family, Office, Meeting Room, Auditorium, Factory, Storehouse, Shop, Hospital, X-ray Room, Darkroom, Classroom, Gymnasiums, Indoor Playground, Indoor Swimming Pool, Public Place of Entertainment, Garage, Farm and Chicken Farm, etc.
Adjustment:
Brewing of Wine and Soy Sauce, fermentation of Bread, Toasting of Biscuits and Processing of Sweets.
Others:Drying of Insulating paint, Film, Electronic Printed Base Board, Condenser and Drying of Sole Gluing are within the scope of specific application.

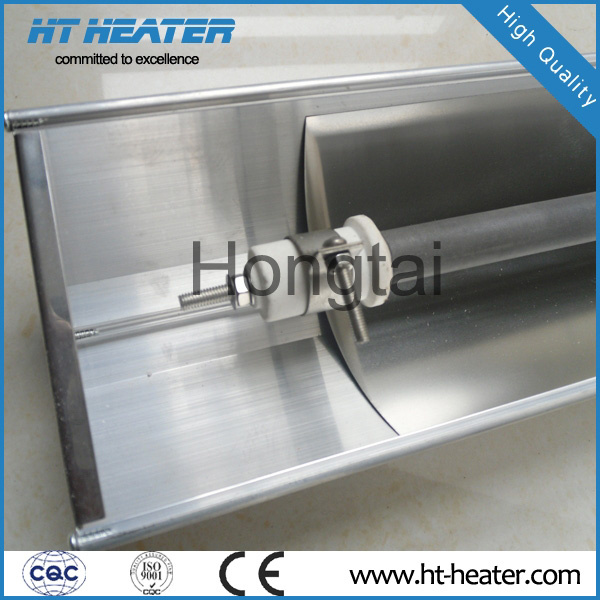

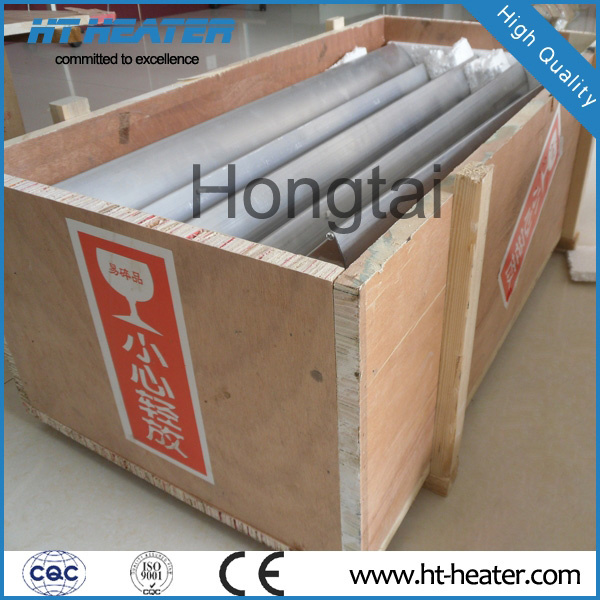

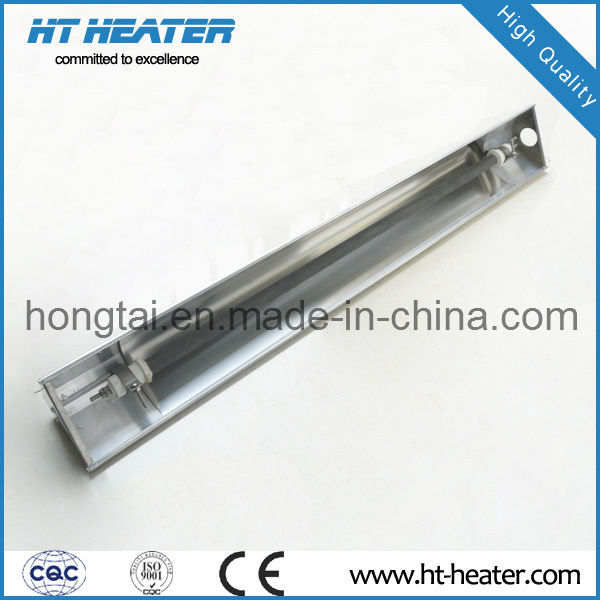

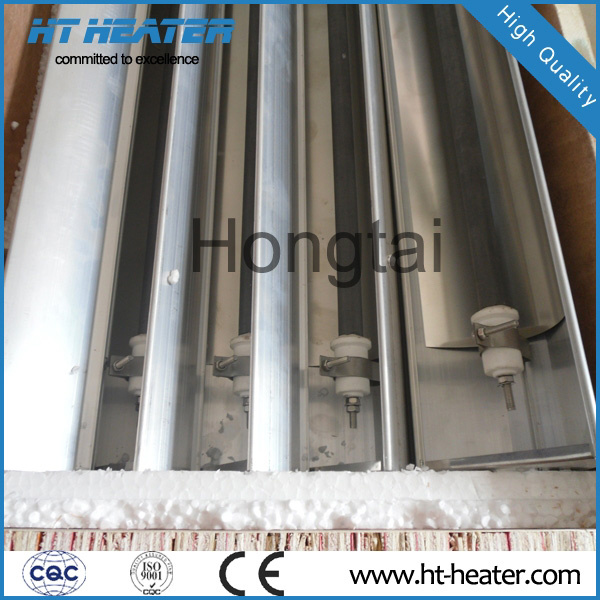

Pictures for far infrared radiant ceramic heater
|
Length ( mm ) |
Voltage ( 110V/220V/380V |
|
Diameter(mm) |
|
Overall(L1) |
Effective(L2) |
12(φ) |
14(φ) |
17(φ) |
20(φ) |
|
320 |
200 |
200 |
300 |
400 |
450 |
|
420 |
300 |
300 |
450 |
550 |
600 |
|
520 |
400 |
400 |
600 |
700 |
800 |
|
620 |
500 |
|
750 |
850 |
1000 |
|
720 |
600 |
|
850 |
1000 |
1200 |
|
920 |
800 |
|
1100 |
1300 |
1500 |
|
1120 |
1000 |
|
|
1700 |
1900 |
|
1320 |
1200 |
|
|
2000 |
2300 |
|
1620 |
1500 |
|
|
|
2800 |
|
1920 |
1800 |
|
|
|
3300 |
Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).
With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.
We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.
We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.
Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.
Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.
We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
