Prod Model: |
THR-IC-15 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2300*1080*510-910 mm |
X-RAY Examination Tray: |
available |
Dual-Regress Function: |
available |
CPR Function: |
available |
Wireless Monitoring System: |
available |
Warranty: |
one year |
Certificate: |
CE and ISO |
Motors: |
LINAK |
Castors: |
central control castors |
Night Light: |
available |
Material: |
Metal |
Folded: |
Folded |
Product Description

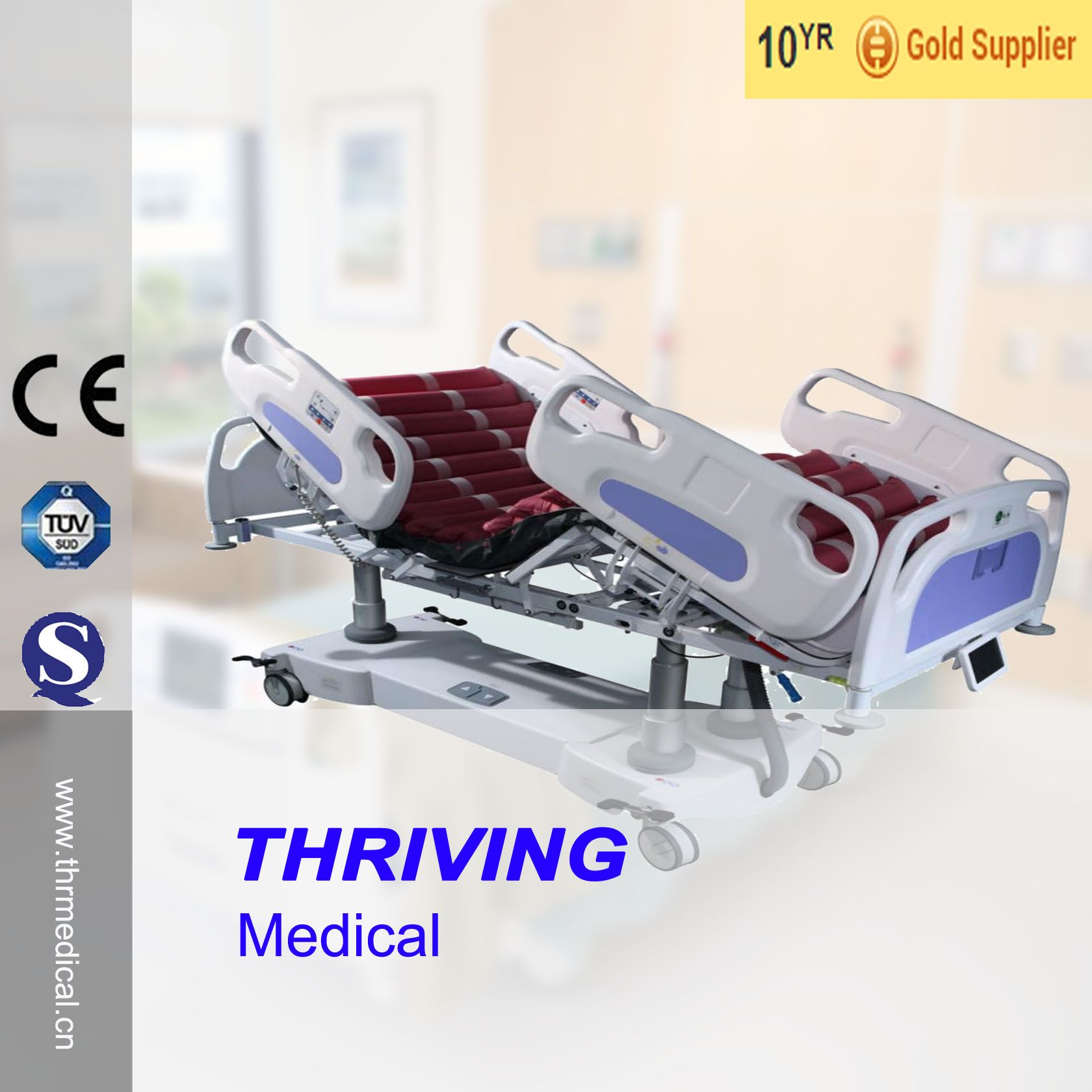

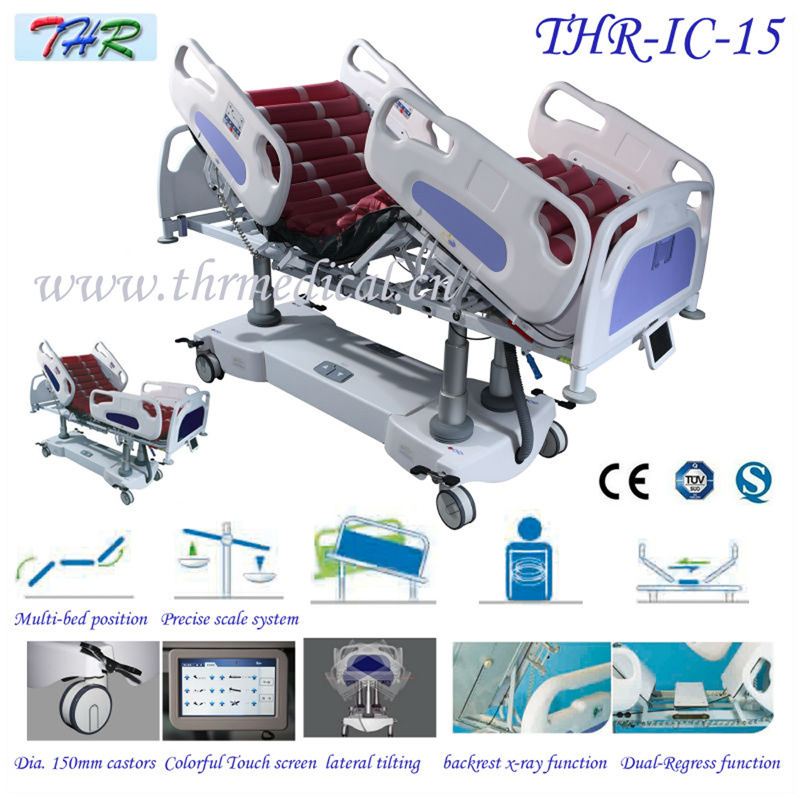

ICU Medical Bed(THR-IC-15)
Features:
1. The bed frame is made of high-quality carbon steel and painting is electrostatic spraying.
2. Completely transparent platform (HPL board) for x-ray examination.
3. X-ray examination tray for backrest to thigh-rest.
4. Five functions(electrically):
Height adjustment (490mm-890mm).
Angle of back-rest's inclination 0° - 75°.
Angle of thigh-rest's inclination 0° - 45°.
Trendelenburg position: 17°.
Anti-trendelenburg position: 17°.
5. Shank-rest board can be adjusted by gas spring: 40°.
6. Precise scale system: precision is 50g, absolute and differential weight can be measured.
7. Angle of the lateral tilt:30°.
8. Auto contour function: Allows back-board and thigh-board to be adjusted simultaneously.
9. Dual-Regress function: The total regress distance is bigger than 200mm, which can prevent the formation of pressure ulcers and avoid the wound spilt.
10. Removable head-board and foot-board (ABS).
11. ABS Separate side rails.
12. Four built-in side rail controllers for patient: Height adjustment, angle adjustments of backrest and thigh-rest, nursing bells.
13. Colorful Touch screen for caregiver: Electronic medical record, position adjustment, absolute weight and differential weight, angle of lateral tilt, time the Trendelenburg, Anti-Trendelenburg position and lateral tilt, lock out function.
14. One-key position of central control panel: cardiac chair/ fowler position/ CPR position/ examination position/ trendelenburg position.
15. Emergency stop function: The bed can be stopped at all times and positions for one button.
16. Bed Exit Alarm.
17. Agitation Alarm.
18. Backrest manual CPR: Adjust the backrest segment to 0°.
19. Thigh-rest manual CPR.
20. Backrest angle indicator.
21. Foot controller: adjust the platform height.
22. Fifths castor: move easily in a narrow space.
23. Night light (at the bottom of the bed).
24. Rechargeable battery back-up: Up to 72 hours of standby time in normal use and capable of 50 cycles in case of power failure.
25. Four roller bumpers.
26. Central brake and steering system.
27. Patient fixed accessories.
28. IV pole and four IV pole holder faucets.
29. Eight Drainage bag holders.
30. Waterproof ventilative memory foam mattress.
31. Protective pad for Lateral tilting (1 set, 5 pieces).
32. Extensional mattress.
33. Waterproof Grade IPX4.
Specifications |
DC Linear Actuators | 2 |
Lifting Columns | 2 |
Safety supporting load (include the mattress and the accessories) | 230kg |
Overall Length | 2300mm |
Overall Length with extended platform | 2500mm |
Overall Width | 1080mm |
Mattress Size | 2100mm × 840mm × 80mm |
Height Adjustment | 490mm-890mm | |
Angle of back rest segment inclination | | 0 ° - 75 ° | |
Angle of thigh rest segment inclination | | 0 ° - 45 ° | |
Angle of Shank rest segment inclination | | 0 ° - 40 ° | |
Trendelenburg/Anti-trendelenburg | | ± 17 ° | |
Angle of lateral tilting | | 30 ° | |
Weight system precision | | 50g | |
Backrest segment regress distance | | 120mm | |
Thigh-rest segment regress distance | | 90mm | |
Backrest x-ray cassette holder | | 420mm × 650mm | |
Diameter of Castors | | 150mm | |
Voltage | | 220~230V, 50Hz~60Hz Standard |
| | (110~127V, 50Hz~60Hz Option) |
Wireless monitoring system (wireless control software for nurse station) | | 1 | |
| |
Waterproof Mattress | | 1 | |
Night light | | 1 | |
X-ray examination tray for shank-rest | | 1 | |
IV pole | | 1 | |
