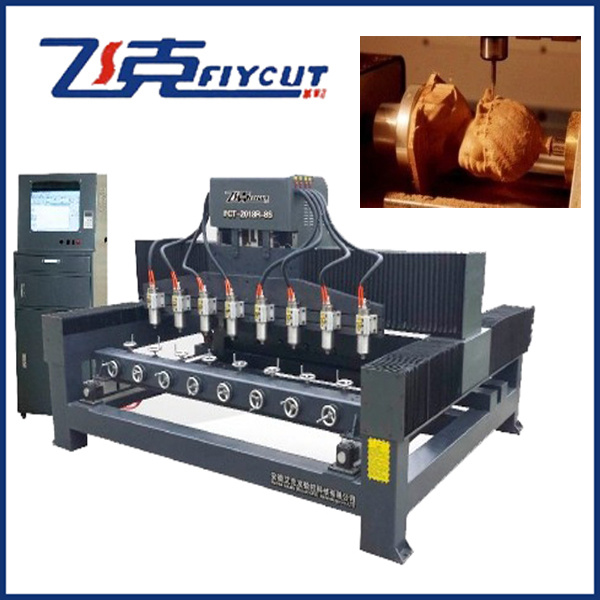

Hot Sale CNC Rotary Engraving Machine

Prod Model:	FCT-2018R-8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	1 Year
Spindle Layout:	Vertical
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	SGS
Spindle Number:	8

Product Description

Machine's Feature:

The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
The special instruments to eliminate welding stress, high-precision machining plan ensure the precision and no deformation.

The major machine body makes the stability and no shaking in high speed.
XYZ all apply imported screw, high precision gear frame and linear square guide, ensure te high accuracy.
The professional mechanical design, scientific sturcture and generous appearance.
XYZ axis use anti-dust system, prevent dust during woking, make sure the long lifespan of spare parts.
High quality driver motors, spindle motors, cables, inverters, etc.
High accuracy, high torsion and professional gear box without any gaps, ensure high engraving accuracy.
Professional CNC control system, the system can compatible with many kinds CAM software, such as Type3/Artcam/Pro-E/Mastercam.

Appliction:

Rotary engraving: Mking relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making etc.


Special configuration:
Special configurations: Customized model machine, imported spindles, servo motors, oil lubrication system, 6--12 spindle heads, etc.


Our service:

1. The machine comes with 1 year warranty;
When it exceed warranty period, if the machine's part need to be changed, we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine, welcome to customize or distribute our machines.

if you have any question,pls contact with me:
alice(overseas department manager)
Tel: +86 13966703473
Professionally produced engraving machine and laser machine factory

Model	FCT-2018R-8S
Rotary Diameter	Φ250
Rotary length	1500mm
Flat working size	2300*1500*200mm
Spindle power	Water cooling 2200W×8
Spindle rotation	6000--24000rpm
Motor driver	Chinese servo motor or France servo motor
Tool diameter	Φ3.175mm, Φ 6mm, Φ12.7 mm
Machine structure	Industry square tube structure, gantry moving
Transmission	XYZ TBI ball screw, Y double ball screw, double driver.
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	<0.03/300mm
Engraveing speed	10000mm/min
Data transmission	PC-connection directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	2500kg
