| Prod Model: |
FCT-1618C&W-4S |
| Markets: |
North America,Southeast Asia,Mid East |
| Working Size: |
1600X1800X200mm |
| Rotary Length: |
1300mm |
| Spindle Type: |
Water Cooling |
| Spindle Power: |
1500wx4 |
| Rotary Diameter: |
230mm |
| Motor: |
Setpper |
| Operating System: |
4 Axis DSP |
| Transmission: |
Xy Ball Screw, Y High Accuracy Gear Rack |
| Engraving Speed: |
800mm/Min |
| Net Weight: |
1000kg |
| Type: |
Engraving Router |
| Spindle Layout: |
Horizontal |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Customized: |
Customized |
| Color: |
Customized |
| Spindle Number: |
Four Spindles |

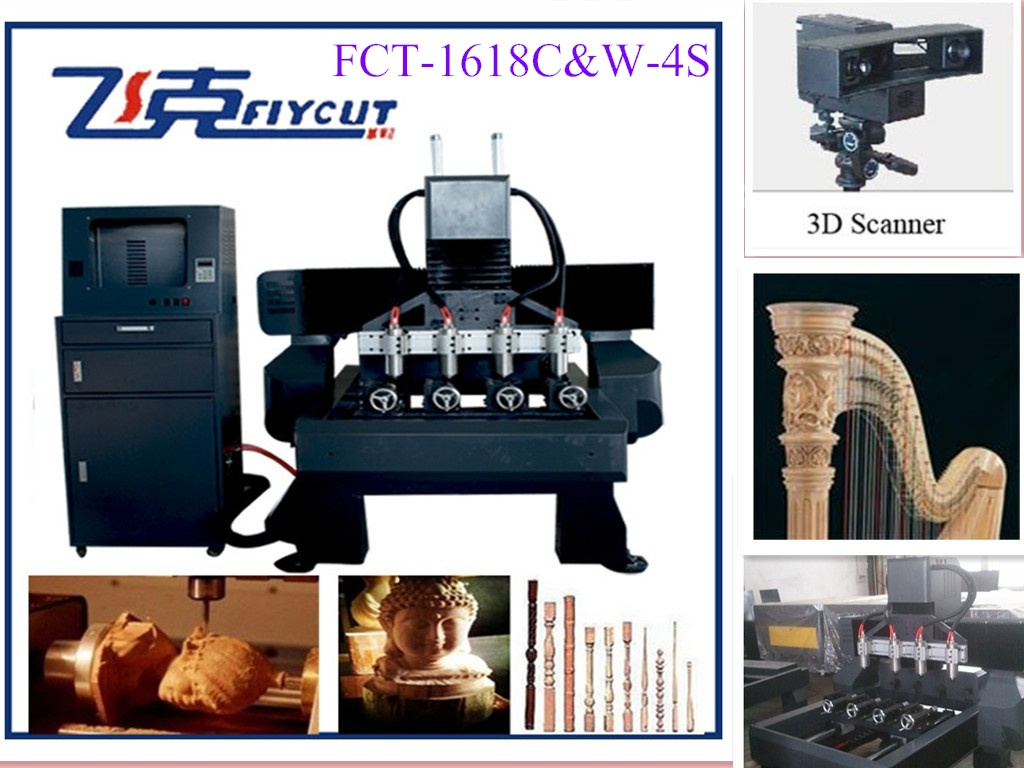

Product Description
Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.
Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.
Technical Parameters:
Model |
FCT-1618C&W-4S |
Rotary diameter |
230mm |
Rotary length |
1300mm |
Flat working size |
1600×1800×200mm |
Spindle power |
Water cooling 1500W×4 |
Spindle rotate |
6000~24000RPM |
Tool diameter |
3.175,4,6mm |
Machine structure |
Industry square tube structure |
Transmission |
XY ball screw, Y high accuracy gear rack |
XYZ rails |
PMI square rails |
Dust-proof system |
XYZ high quality dust cover |
Mechanical accuracy |
less than 0.03/300mm |
Engraveing speed |
8000mm/min |
Data transmission |
by pc connection directly or USB |
Support format |
G code or HPGL |
Working voltage |
AV220V/380V 50Hz |
Net weight |
1000kg |
FAQS:
1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is the delievery time?
For standard machines, it would be 14 days; For non-standard machines and customized machines according to clients specific requirements, it would be 25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?
Water-proof plastic film package with foam protection in each corner.
The reason that you choose us :
1.One year warranty for the whole machine and maintenance for lifetime.
2.Under normal usage, 1 year for the whole machine,lifelong technical support.
3.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
4.Door to door service, you just need to bear round-trip tickets and accommodation.
5.Free installation,testing,training before shipping .
6.Advice for the best solutions for your requirements.
7.High precision with reasonable price
8.Meet CE, ISO9001 standards.
