| Prod Model: |
Thr-AV-2000b2 |
| Certificate: |
Ce |
| Name: |
Thr-AV-2000b2 Hospital Professional Medical Ventil |
| Using: |
Sick Room/ICU |
| Display Mode: |
10.4 Inch |
| Type: |
Ventilator |
| Certification: |
CE |
| Group: |
Adult |
| LCD Display: |
With LCD Display |
| Source: |
Air |
| Anesthesia: |
Closed Circuit |
| Type Of Operating Light: |
No |
Product Description

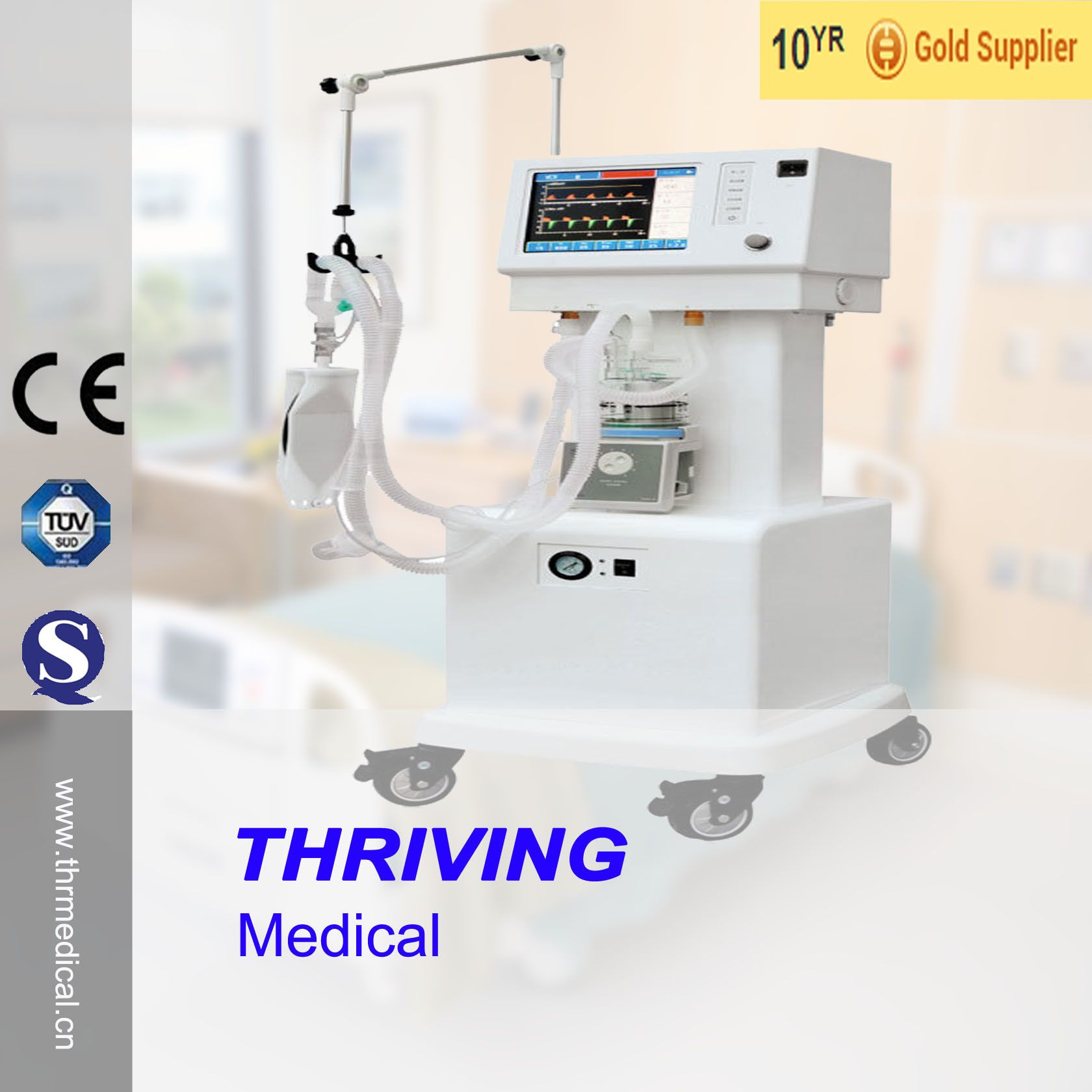

THR-AV-2000B2 Professional medical ventilator
1- Display mode
HD 10.4 TFT color LCD display
2-Ventilation mode
IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH, (IMV, VCV, PCV,
PSV, CPAP)
3- ventilation parameters
Tidal volume of 50 ~ 1500 ml (20 ~ 1500 ml)
Frequency 1 ~ 99 times / min
SIMV frequency 1 ~ 20 times / min
Absorption ratio of 2: 1 to 1: 8 call (4: 1 ~ 1: 8)
Inspiratory trigger pressure of -1.0 ~ 2.0 kPa
Flow trigger sensitivity of 1 ~ 8L/min
PEEP 0 ~ 2.0 kPa
1.0 ~ 6.0 kPa pressure control
Support 1 ~ 4 kPa pressure
Sigh inspiratory time of 1.5 times (70 to 150 adjustable)
Inspiratory Ping Taiwan 0 ~ 50%
Oxygen concentration of 21% to 100%
4- Ventilation monitoring
Tidal volume, ventilation, IPPV frequency, SIMV frequency, total respiratory rate, ratio, peak airway pressure, pressure - time waveform, flow rate - the time wave, positive end expiratory pressure, inspiratory trigger pressure,
Ping suction units, oxygen concentration (autonomous breathing frequency, lung compliance, airway resistance, flow rate - volume loops, pressure - volume loops)
5- Security Alarm System
Oxygen concentration range of 21% upper limit set to 100%
Limit setting range of 10% to 80%
Airway pressure alarm limit setting range of 0.3 ~ 6.0 kPa
Lower limit range of 0.2 ~ 5.0 kPa
Minute ventilation alarm limit setting range 3.0 ~ 30 L / min
Limit setting range 1.0 ~ 10 L / min
Respiratory rate alarm limit setting range of 50 to 99 times / min
Lower limit range of 0 to 50 times / min
Maximum tidal volume alarm setting range 0 ~ 2000ml
Lower limit range of 0 ~ 1800ml
High pressure continued to alarm when the alarm has been higher than 2.5 kPa
Suffocation alarm input 15s without tidal volume, the sound, light alarm
Gas source undervoltage alarm
Power failure alarm
Intubation off alarm
6- Power Supply AC 220V ± 10% 50Hz ± 1Hz
UPS power supply, battery
7-arm
8- (air compressor)
Department of matching items in brackets
