Prod Model: |
MT2100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Medical Bed |
Material: |
Metal |
Folded: |
Folded |
Product Description

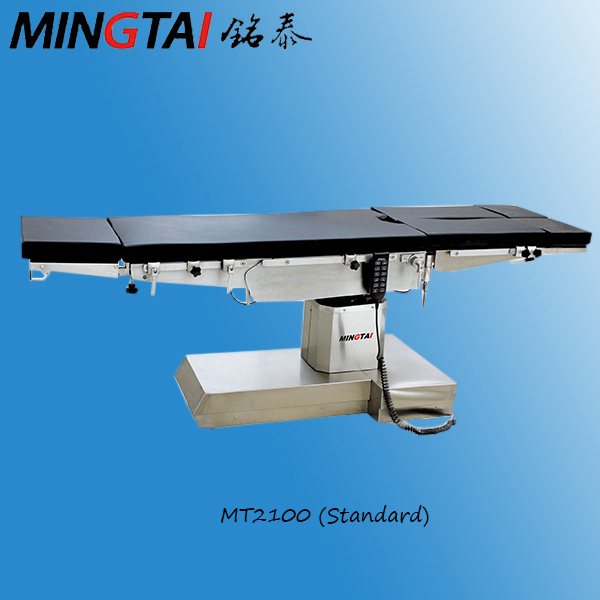

Hospital ICU electric operating table
Configuration:
Multi-function 7 electro-motor surgical table
LinakDenmark LINAK linear motor
SUS304# stainless steel from Korea
555mm superior wide of operating table
2 motors rise the back board, "T" shaped base design,
Double electric controlling system, internal emergency power
Electric braking & Electric waist bridge
MT2100 multi-function electric operation table, implanted progressive design philosophy and module, Longitudinal translation, double line position control table board, perspective by X-ray, extensibility and compatible normal accessories ensure the table's multi-function and flexibility; Adopt imported motor and electrical components ensured the safety and stability of operation, such rich function operation platform can make surgery work effectively, it will be an ideal option for you.
Features:
1. It adopts hydraulic engine imported from Germany as the driving force.
Electrical operation bed has a top-panel composed of five movable boards including head board, back board, hip board, thigh board and crus board. This top-panel supports 6 kinds of body positions by electric hydraulic control which controls up and down, forward and backward tilts and leftward and rightward tilts of the top panel, the upward and downward folding of the hip board, the upward and downward folding of the leg boards, and the locking and unlocking of the base. The changes of the angles of the head board and crus board are adjusted manually through pneumatic spring.
2. It has hand-control and panel-control which work respectively, adopts MCU process, and its self-lock can avoid error-touch.
Electrical operation bed can control various body positions through two kinds of control panels, i. E., one handy controller and one supplementary control panel. When the handy controller fails, the supplementary controller may be used to control the bed.
3. Its engine uses DC24V, which increases the security of electric. AC and DC can use at the same time.
4. It can do the C-arm, X-ray examination.
This bed adopts the eccentric column design. Also the head part and the leg part of the table can exchange. So it realizes the C-arm X-ray machines photograph of the whole ranges of body positions. It also supports the X-ray photograph by a cassette.
5. It has the function of auto-restoration, and adopts Germany CONTELEC sensor.
This operation bed has a Convex Top-panel key and a Concave Top-panel key to provide convenience to the operations on gallbladder or kidney. This bed has a HorizontalnessReset key to reset the whole top panel of the bed to the horizontal position.
6. It is all made of high-quality stainless steel.
Technical parameters |
|
Length |
2100±50mm |
Width |
555mm |
Lowest and highest table height |
(750-1000) ± 50mm |
Forward tilt |
≥32° |
Backward tilt |
≥32° |
Longitudinal motion |
400±50mm |
Left/right tilt |
≥22° |
Head board up |
≥90° |
Head board down |
≥90° |
Waist bridgeelevator |
≥130mm |
Leg board down |
≥90° |
Leg boardevagination |
≥90° |
Back board up |
≥80° |
Back board down |
≥40° |
Power: |
AC 220V 50Hz |
Input power: |
500VA |
