| Prod Model: |
THR-IC-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPR Function: |
available |
| X-RAY Examination Board: |
available |
| Castors: |
dia 150 mm central control |
| Weight Scale: |
available |
| Head And End Board: |
ABS |
| Side Rails: |
ABS with insult control board |
| Size: |
2300*1080*510-910 mm |
| Function: |
5 functions |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
Product Description

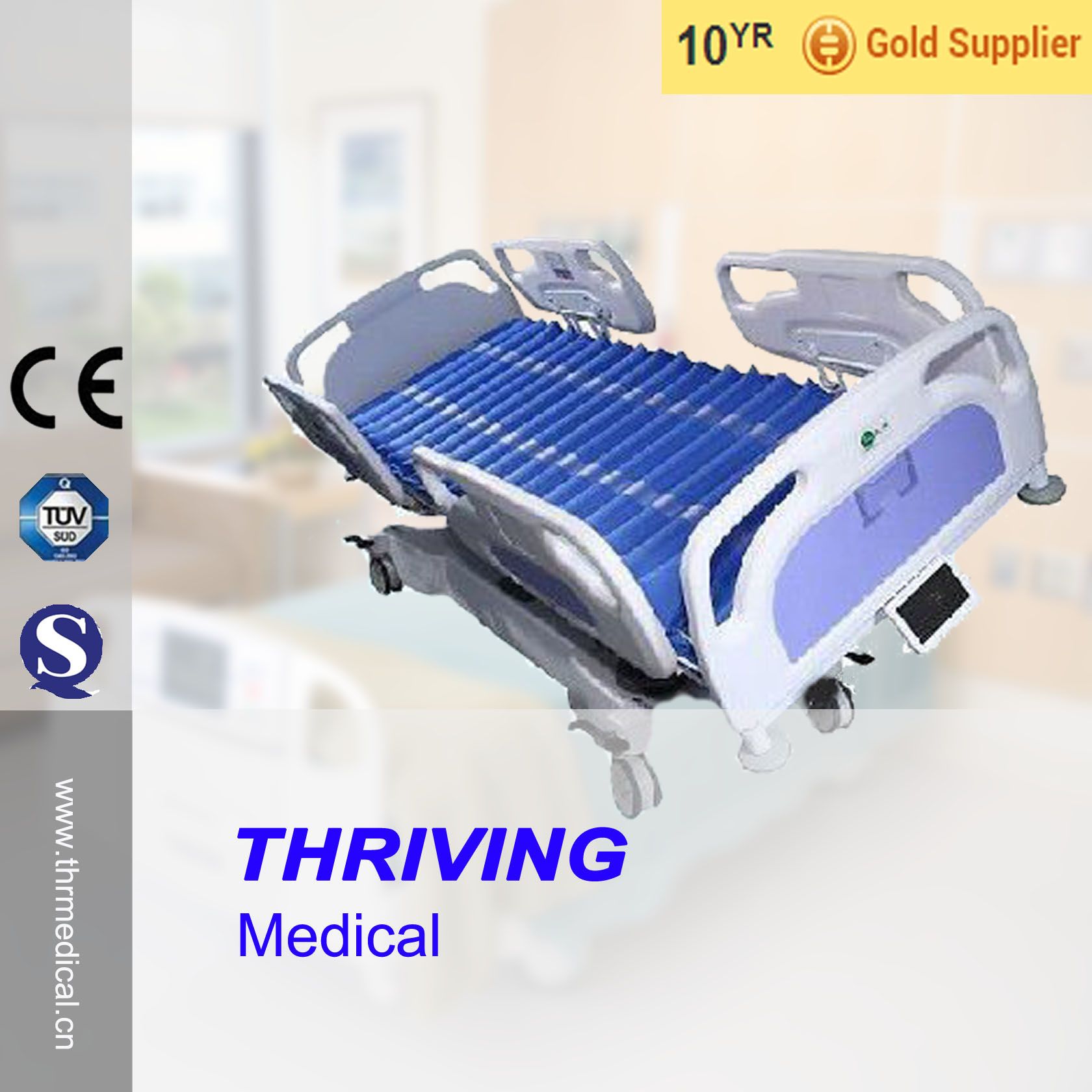

ICU Hospital Bed (THR-IC-10)
Features:
1. The bed frame is made of high-quality carbon steel and painting is electrostatic spraying.
2. Completely transparent platform for X-ray examination.
3. Backrest X-ray examination tray.
4. Five functions(electrically):
Height adjustment (510mm-910mm)
Angle of back-rest's inclination 0° - 75°.
Angle of thigh-rest's inclination 0° - 45°.
Trendelenburg position: 17°.
Anti-trendelenburg position: 17°.
5. Shank-rest board can be adjusted by gas spring: 40°.
6. Precise scale system: precision is 100g, absolute and differential weight can be measured.
7. Auto contour function: Allows back-board and thigh-board to be adjusted simultaneously.
8. Dual-Regress function: The total regress distance is bigger than 200mm, which can prevent the formation of pressure ulcers and avoid the wound spilt.
9. Removable head-board and foot-board (ABS).
10. ABS Separate side rails.
11. Four built-in side rail controllers for patient: Height adjustment, angle adjustments of backrest and thigh-rest, nursing bells.
12. Colorful Touch screen for caregiver: Electronic medical record, position adjustment, absolute weight and differential weight, time the Trendelenburg and Anti-Trendelenburg position, lock out function.
13. One-key position of central control panel: cardiac chair/ fowler position/ CPR position/ examination position/ trendelenburg position.
14. Emergency stop function: The bed can be stopped at all times and positions for one button.
15. Bed Exit Alarm function.
16. Backrest manual CPR: Adjust the backrest segment to 0°.
17. Thigh-rest manual CPR.
18. Backrest angle indicator.
19. Foot controller: adjust the platform height.
20. Rechargeable battery back-up: Up to 72 hours of standby time in normal use and capable of 50 cycles in case of power failure.

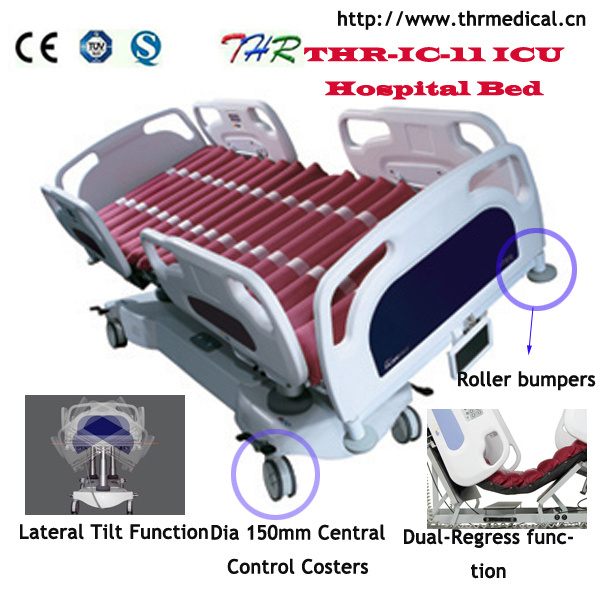

21. Four roller bumpers.
22. Central brake and steering system.
23. Holders in each corner for infusion stand.
24. Eight drainage bag holders.
25. Waterproof ventilative mattress.
26. Extensional mattress.
27. Waterproof Grade IPX4.
28. Fifths castor (move easily in a narrow space).
| IC-10 Specifications |
| DC Linear Actuators | 2 |
| Lifting Columns | 2 |
| Safety supporting load (include the mattress and the accessories) | 200 kg |
| Overall Length | 2300mm |
| Overall Length with extended platform | 2500mm |
| Overall Width | 1080mm |
| Mattress Size | 2100mm × 840mm × 80mm |
| Height Adjustment | 510mm-910mm |
| Angle of back rest segment inclination | 0 ° - 75 ° |
| Angle of thigh rest segment inclination | 0 ° - 45 ° |
| Angle of Shank rest segment inclination | 0 ° - 40 ° |
| Trendelenburg/Anti-trendelenburg | 17 ° |
| Weight system precision | 50g |
| Backrest segment regress distance | 120mm |
| Thigh-rest segment regress distance | 90mm |
| Backrest x-ray cassette holder | 420mm × 650mm |
| Diameter of Castors | 150mm |
| Voltage | 220~230V, 50Hz~60Hz Standard
(110~127V, 50Hz~60Hz Option) |
Wireless monitoring system
(wireless control software for nurse station) | 1 |
| Alternating Pressure Mattress | 1 |
| Night light | 1 |
| IV pole | 1 |
| touch screen | 1 |
