Ruian Leadtop Imp&Exp Co., Ltd. >> Horizontal Laminar Air Flow Cabinet

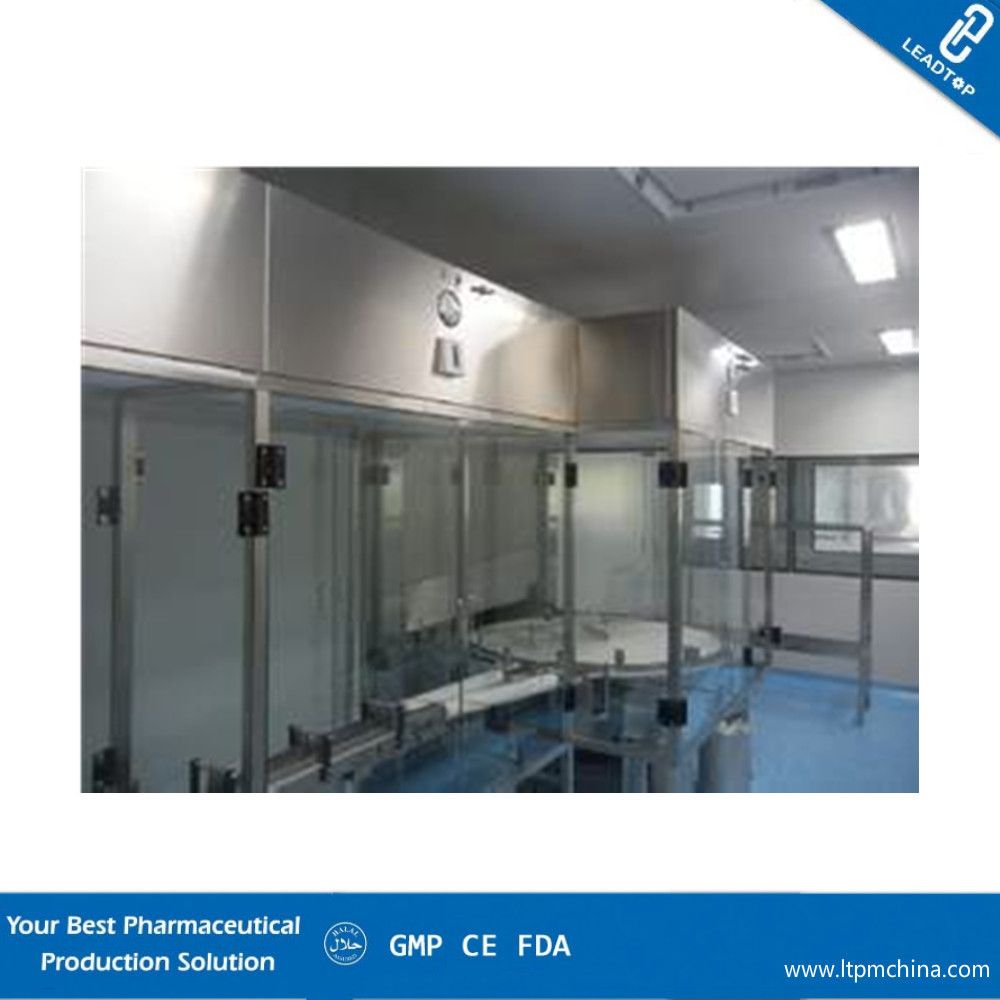

Horizontal Laminar Air Flow Cabinet

Horizontal Laminar Air Flow Cabinet
Price: US $ 6500-30000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: horizontal laminar air flow cabinet
Item Name: Laminar Air Flow Cabinet
Material: 304/316L Stainless Steel
Purification Rank: Class100
Air Speed: 0.3-0.6m/S
Tube Length: 50-240mm (Customizable)
DB: Less Than 75dba
Efficiency: 99.995%@0.3um
Control System: PLC Control
Cavity Inside Size: 2000L*2400W*2800h mm
Illumination: More Than 500lux
Certification: SGS
Type: Laminar Air Flow Cabinet
Finished Dosage Form: Laminar Air Flow Cabinet

Product Description



horizontal laminar air flow cabinet
Product Description



Quicky Detail:

Purification rank: Class100

Three Step Filtration System

Fluid seal Mini-pleats HEPA filter

99.995%@0.3um  H13

GMP Standard  with DOP port testing

Air speed:0.3-0.6m/s

Power: 380V/60HZ or 415V/50HZ



Applications:  dispensing booth subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids in clean rooms and so on.

Operating Features:

1: dispensing booth modular. Easy-to clean rigid design with minimal joints

2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals

3: Voltage-compensating blowers ensure stable air flow.

4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.

5: Containment performance verified according to the ISPE good practice guide, assessing the particulate containment performance of pharmaceutical equipment.



Standard Model Technology Parameter:



Model

AL-LAF-1200

AL-LAF-1500

AL-LAF-1800

External Dimension

(W×D×H)mm

1200×1500×2300

1500×1500×2300

1800×1500×2300

Internal Work Zone

(W×D×H)mm

1100×1200×1900

1400×1200×1900

1700×1200×1900

Clean Class Level

100class(U.S.Federal 209E Standard)

Air Velocity

0.3-0.5m/s

0.3-0.5m/s

0.3-0.5m/s

Noise

≤65dB

≤65dB

≤65dB

Vibration Half Peak

≤5um

≤5um

≤5um

Light

40W×2

40W×2

40W×2

Power Supply

220V/50Hz

220V/50Hz

220V/50Hz

Material

Epoxy powder coated steel/full stainless steel



Our Service

 1. 24*7days hotline service.

 2. Technology Support: we offer engineer at site training and intsllation service all over the world.

 3. Documentation: DQ, IQ, OQ, PQ, FAT, SAT, Manual, etc for GMP validation purpose.

 4. One year spare parts Free Guarantee

 5. Production Solution Suggestion



FAQ

For more informations, please contact us by mail or telephone call.

LTPM CHINA, Your Best Pharmaceutical Production Solution!

Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals. Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry. This allows us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines, packing materials and APIs at competitive prices. Our main products includes:

Fluid Bed Dryer

Spray Drying Machine

Powder Mixing Machine

Granulating Machine

Capsule filling machine

Blister Packing Machine

Cartoning machine

Tablet Pressing Machine

Bottling Machinery

Liquid Production Line

All kinds of lamination films for pharma packaging

Several kinds of APIs

Our Faith: Your Best Pharmaceutical Production Solution!

We offer whole pharmaceutical Production solutions from raw material processing to finished products. We manufacture and distribute different pharmaceutical machinery, packing materials and APIs with our own engineering teams and after-sales service teams.

Based on our experienced engineering team, we produce top quality machines, paking materials and APIs and also help customers select the best quality suppliers. Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement. Each engineer has at least ten years' machining and packaging area experience. We are your extra technical consultant center.

Quality Control:

Our company owns a quality control department to verify each product at different phases, from the procurement of parts to finished products. In order to offer clients the best quality products, we manufacture products in accordance with international standards, such as FDA, GMP and cGMP.

We are your best pharmaceutical production solution!
