| Price: | US $ 6500-30000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Laminar Flow Cabinet |
|---|---|
| Item Name: | Laminar Flow |
| Material: | 304/316L Stainless Steel |
| Purification Rank: | Class100 |
| Air Speed: | 0.3-0.6m/S |
| Tube Length: | 50-240mm (Customizable) |
| DB: | Less Than 75dba |
| Efficiency: | 99.995%@0.3um |
| Control System: | PLC Control |
| Cavity Inside Size: | 2000L*2400W*2800h mm |
| Illumination: | More Than 500lux |
| Certification: | SGS |
| Type: | Laminar Air Flow Cabinet |
| Finished Dosage Form: | Laminar Air Flow Cabinet |

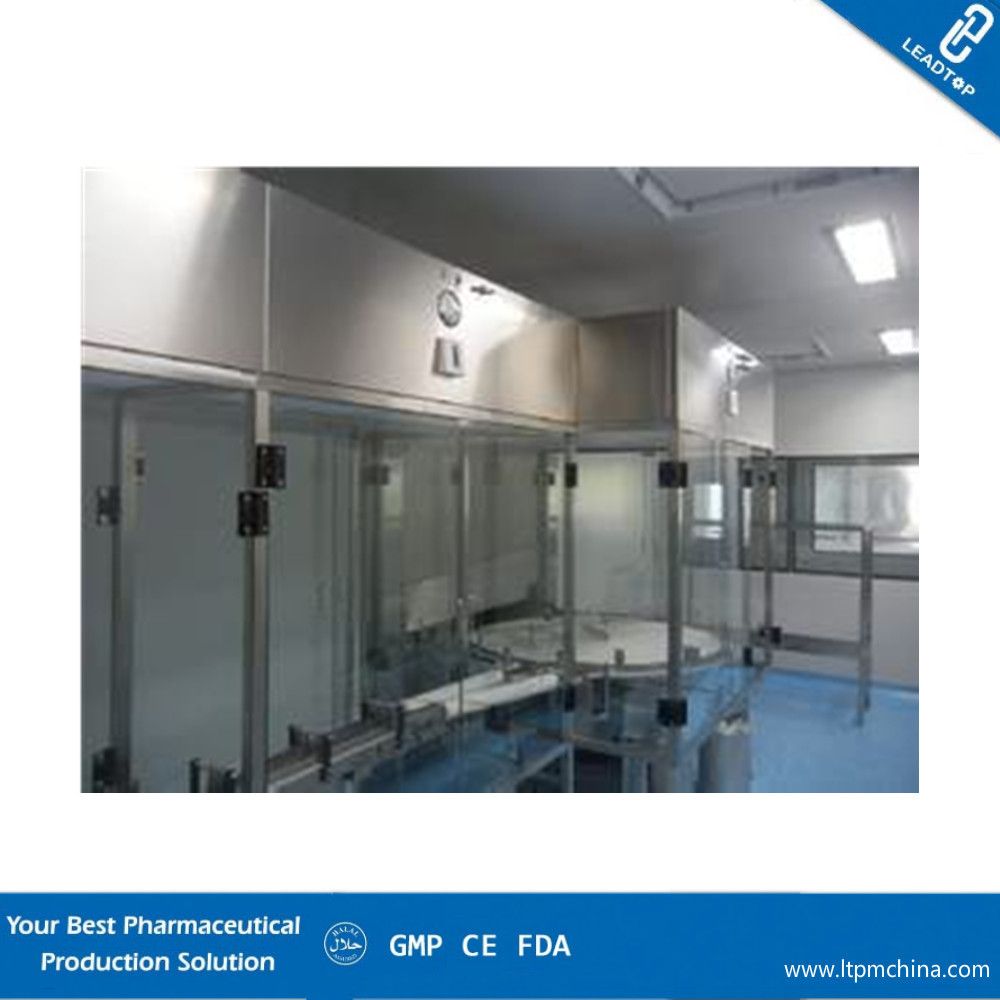

Laminar Flow Cabinet
Quicky Detail:
Purification rank: Class100
Three Step Filtration System
Fluid seal Mini-pleats HEPA filter
99.995%@0.3um H13
GMP Standard with DOP port testing
Air speed:0.3-0.6m/s
Power: 380V/60HZ or 415V/50HZ
Applications: dispensing booth subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids in clean rooms and so on.
Operating Features:
1: dispensing booth modular. Easy-to clean rigid design with minimal joints
2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals
3: Voltage-compensating blowers ensure stable air flow.
4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.
5: Containment performance verified according to the ISPE good practice guide, assessing the particulate containment performance of pharmaceutical equipment.
Standard Model Technology Parameter:
Model | AL-LAF-1200 | AL-LAF-1500 | AL-LAF-1800 |
External Dimension (W×D×H)mm | 1200×1500×2300 | 1500×1500×2300 | 1800×1500×2300 |
Internal Work Zone (W×D×H)mm | 1100×1200×1900 | 1400×1200×1900 | 1700×1200×1900 |
Clean Class Level | 100class(U.S.Federal 209E Standard) | ||
Air Velocity | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s |
Noise | ≤65dB | ≤65dB | ≤65dB |
Vibration Half Peak | ≤5um | ≤5um | ≤5um |
Light | 40W×2 | 40W×2 | 40W×2 |
Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Material | Epoxy powder coated steel/full stainless steel | ||
1. 24*7days hotline service.
2. Technology Support: we offer engineer at site training and intsllation service all over the world.
3. Documentation: DQ, IQ, OQ, PQ, FAT, SAT, Manual, etc for GMP validation purpose.
4. One year spare parts Free Guarantee
5. Production Solution Suggestion
For more informations, please contact us by mail or telephone call.
LTPM CHINA, Your Best Pharmaceutical Production Solution!
