| Prod Model: |
HT-CPT 245*60mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industrial Heater: |
Hollow Ceramic Infrared Heater |
| Insulation: |
Ceramic |
| Heating Wire: |
Nicr 80/20 |
| MOQ: |
1 Piece |
| Certificate: |
RoHS, ISO, CE |
| Size 1: |
60*60mm |
| Size 2: |
122*60/120*60mm |
| Size 3: |
122*122/120*120mm |
| Size 4: |
245*60mm |
| Size 5: |
245*80mm |
| Application: |
Heater |
| Structure Material: |
Ceramic |
| Heat Transfer Surface: |
Plate Heat Exchanger |
| Principle: |
Infrared Heating |
Product Description

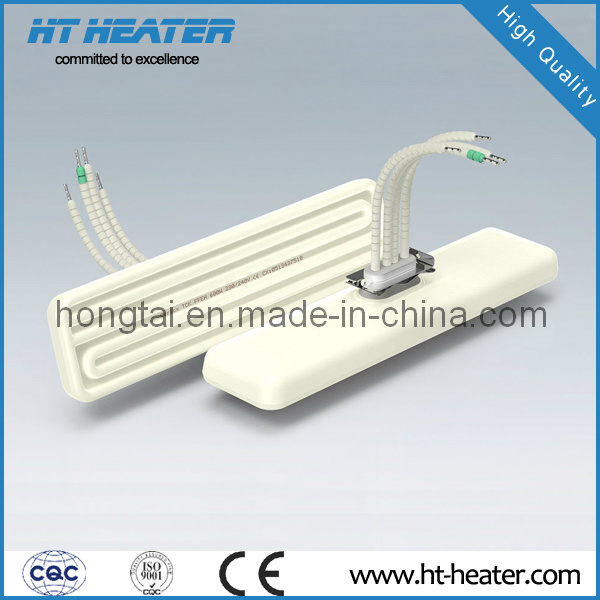

Hollow Ceramic Infrared Heater
Hollow Ceramic Infrared Heater
Ceramic heaters
Ceramic infrared heating elements are efficient, robust heaters which provide long wave infrared radiation.
They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing,
Printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.
Most plastics and many other materials absorb infrared best in this range,
Which makes the ceramic heater the most efficient infrared radiant emitter on the market.
Specification:
1, Nickel chrome resistance wire(NiCr 80/20)
2, Color: White/Black
3, Low noise type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
4, Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)
5, Useful wavelength range: 2-10 microns
6, Operate in the temperature is 300° C to 700° C (572° F - 1292° F)
7, Average Operating Life-Up to 20, 000 hrs depending on conditions. Recommended radiation distance from heater is 100 mm to 250 mm.
8, Supplied with 100mm ceramic beaded power leads
Applications:
Ceramic heater can be widely used in vacuum forming, dry food, medical treatment sanitation etc kinds of places of infrared dry firing,
Solidify etc. It has perfect saving energy effect in electron, textile, light industry, chemical, medicine, food industry etc,
Has obvious social profit and economy profit.
|
Size(mm) |
Type |
Power |
|
60*60 |
Curved/flat/Hollow |
Available in 125w and 250w |
|
122*60/120*60 |
Curved/flat/Hollow |
Available from 125w to 500w |
|
122*122/120*120 |
Curved/flat/Hollow |
Available from 150w to 750w |
|
245*60 |
Curved/flat/Hollow |
Available from 150W to 1000w |
|
245*80 |
Curved/flat/Hollow |
Available from 150w to 1000W |
Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).
With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.
We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.
We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.
Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.
Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.
We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
