| Prod Model: |
FCT-1325W-AT2 |
| Markets: |
North America,South America,Southeast Asia |
| Table Size: |
1600X2640mm |
| Working Size: |
1300X2500X200mm |
| Spindle Type: |
Water Cooling |
| Spindle Power: |
5.5kw |
| Spindle Rotate: |
6000~24000rpm |
| Motor: |
Leadshine Stepper Motor |
| Control System: |
Ncstudio |
| Inverter: |
Fuling |
| Transmission: |
Gear Rack |
| Guide Rails: |
Taiwan PMI Square Rails |
| Spindle Layout: |
Horizontal |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |

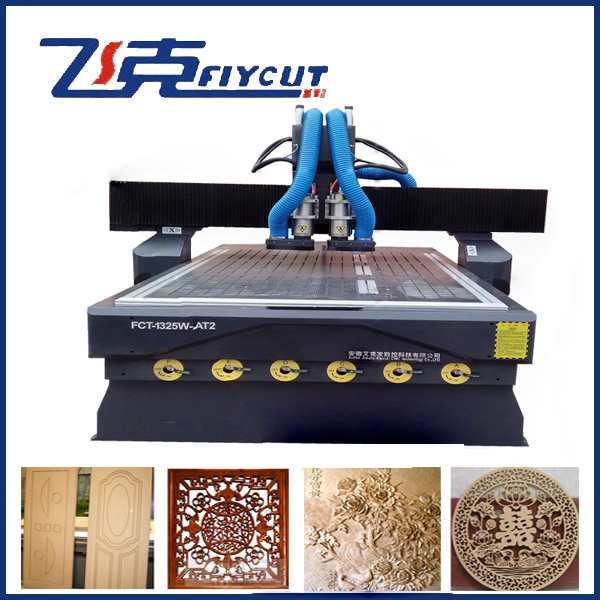

Product Description
Features:
1.This machine use 2 different tools for carving different design on wood,no need to change tools manually.It is easy to operate and make programme.
2.Designed for complex machining, suitable for processing small format workpices and mass production of wooden door,windows,cabinets.
3.5.5kw water cooling spindle,much lower noise with rather big cutting power.
4.The working tabe surface adopts vacuum system to fix processing piece when engve or cut.
5.Independent Z axis structuer,2 air cylinders,high accuracy ball screw.
6.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
7.High quality driver motors, spindle motors, cables, inverters, etc.
8.Profecissional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.
Special configuration:
Servo motor and driver, large models, imported spindles, etc.
Technical parameters:
| Model | FCT-1325W-AT2 |
| Table size | 1600×2640mm |
| Working size | 1300×2500×200mm |
| Spindle power | 5.5kw water cooling, |
| Z axis structure | Independent Z axis,3 air cylinders,high accuracy ball screw |
| Spindle rotate | 6000-24000rpm |
| Motor driver | Stepper motor(Chinese servo motor or imported servo motor is optional) |
| Tool diameter | 3.175, 4, 6, 12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | Accuracy gear rack |
| XYZ rails | Imported square rails |
| Mechanical accuracy | <0.03/300mm |
| Data transmission | PC connection directly |
| Support format | G code or HPGL |
| Engraving speed | 12000mm/min |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 2000kg |
The reason that you choose us :
1. One year warranty for the whole machineand maintenace for lifetime.
2. Free installation,testing,training before shipping .
3. Advice for the best solutions for your requirements.
4.Meet CE, ISO9001 standards.
5. High precision with reasonable price.
