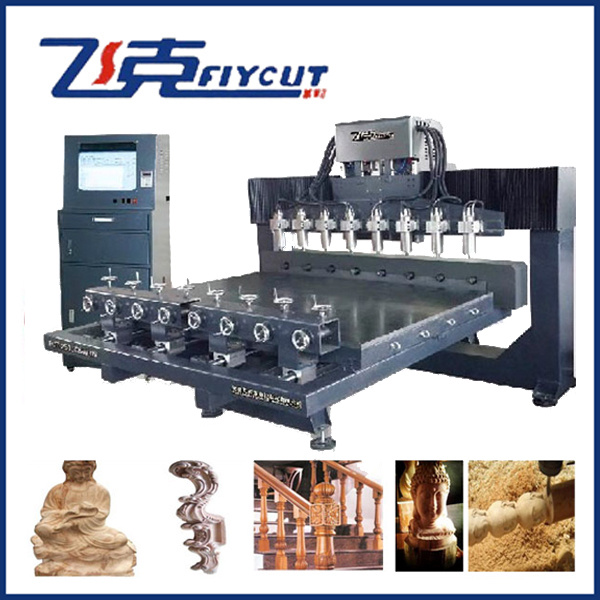

High Quality CNC Engraving Machine with Rotary Axis

Prod Model:	FCT-2515C&W-8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flat Working Size:	2150*1500*20mm
Rotary Length:	1500mm
Rotary Diameter:	250mm
Spindle Number:	Eight Spindles
Spindle Power:	2.2kw
Spindle Speed:	6000~24000rpm
Motor:	Stepper
Control System:	4 Axis Ncstudio
Transmission:	Xy Ball Screw, Z High Accuracy Gear Rack
Guide Rails:	PMI Square Rails

Product Description


Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.
4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.

Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.

Technical Parameters:

Model	FCT-2515C&W-4S
Rotary diameter	250mm
Rotary length	1500mm
Flat working size	2150×1500×200mm
Spindle power	Water cooling 2200W×8
Spindle rotate	6000~24000RPM
Tool diameter	3.175,6,12.7mm
Machine structure	Industry square tube structure
Transmission	XY ball screw, Z high accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	less than 0.03/300mm
Engraveing speed	10000mm/min
Data transmission	by pc connection directly or USB
Support format	G code or HPGL
Working voltage	AV220V/380V 50Hz
Net weight	3500kg

About after-sale service:
1.Under normal usage,1 year for the whole machine,lifelong technical support.
Technical Support by 3 ways:
Choose 1.
We will supply the machine with training video and user's manual.When you meet some problems of installation, using or adjusting.We can give you technical guide by e-mail, fax,telephone,skype and so on.(Recommended)
Choose2:
You can come to our factory for training. We will offer professional guide,direct and effective face-to-face training. Here we have a full set of equipments and sorts of tools and testing facility.
Training Time: 3~7 days (Recommended)
Choose3:
Our engineer will do a door-to-door instruction training service at your side,you need to bear round-trip tickets and accommodation.
Training Time: 5~7 days (Not Recommended)
2.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
3.Door to door service, you just need to bear round-trip tickets and accommodation.
4.Free installation,testing,training before shipping.

FAQS:

1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is the delievery time?
For standard machines, it would be 7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?
Water-proof plastic film package with foam protection in each corner.

Contact us by below:
Alice (overseas depart. client manager)
Mobil: 0086 13966703473

We are a specialized manufacturer for kinds of cnc machine and co2 laser machine in China.Looking forward to cooperating with cnc machine AGENTS all over the world.We will afford you products with good quality and competive price!
