High Frequency Laboratory Vibration Test Shaker Table

High Frequency Laboratory Vibration Test Shaker Table
Price: US $ 2500-50000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: YEV-11
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range: 2-4000Hz
Max.Vibration Force: 100kg.F
Max.Displacement: 25mmp-P
Max.Acceleration: 40g
Max.Speed: 150cm/S
Size(Mm): 675*560*660
Cooling Way: Air Cooling
Warranty: 12 Months
Max.Load: 65kg
Excitor Weight: 220kg
Type: Vibration Testing Machine
Weight: 500-1000Kg
Power Source: AC220V; AC380V
Oil Cylinder Position: N/a

Product Description

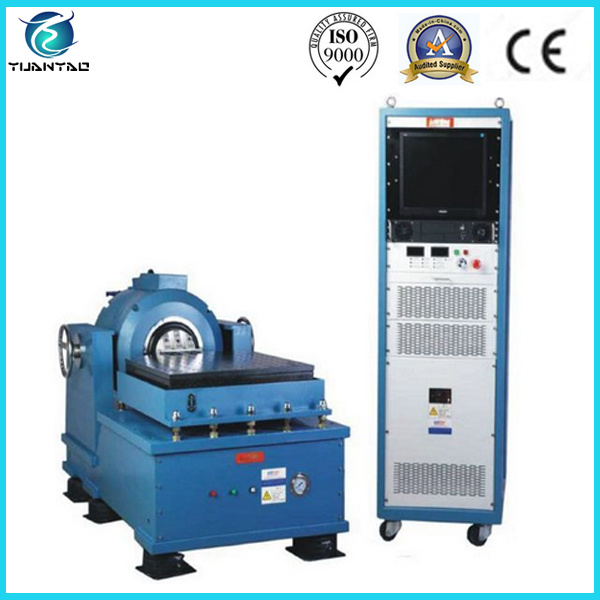

High Frequency Laboratory Vibration Test Shaker Table

1Frequency range: 2-4000Hz
2Maximum acceleration: 80G
3Good quality
4150 cm/s
5Resonable price

Application

Vibration test chamber is to the fields of communications, electronics, appliances, transportation, household appliances. According to the customer's needs.

Package ad delivery

Packaging: Strong wooden cases, meet the international standard.
Delivery: In 15-20 working days.

Specification

1. High performance
2. New design, resonable price
3. Warranty: 12 month
4. Low resistance and high performance

Feature

1. The stay magnetic field of the vibration generator is little. This stray magnetic field doesn't disturb the test sample which are sensitive to magnetic field.
2. Utilizing the computer on line control and inputting data for immediate storage facilitate the control effectiveness and the control curve display.
3. The mass of armature is light. The stiffness of armature is high. The axial resonance frequency of armature is over 4000Hz

ModelYEV-11YEV-12YEV-13
Exciter ModelGV100/25GV200/25GV300/25
Frequency range (Hz)2-40002-40002-4000
Max Eciting Force (kg.f)100200300
Max Displacement (MMP-p)252525
Max Acceleration (G)408080
Max Speed (cm/s)150150160
Payload (kg)6565110
Moving Coil Mass (kg)2.52.54
Circumference of the movable ring(mm)140140150
Exciters Weight (kg)220250240
Dimensions (LWH) mm675×560×660675×560×660675×560×660
Power amplifier ModelSA1KSA2KSA3K
Power developed weight (kg)210210250
Cooling method210210250
Power Amplifiers Size (L×W×H)(mm)720×545×1625720×545×1625720×545×1625
Power Source[k.w]AC 1Ψ 220V/50Hz; 3Ψ 380V 50Hz

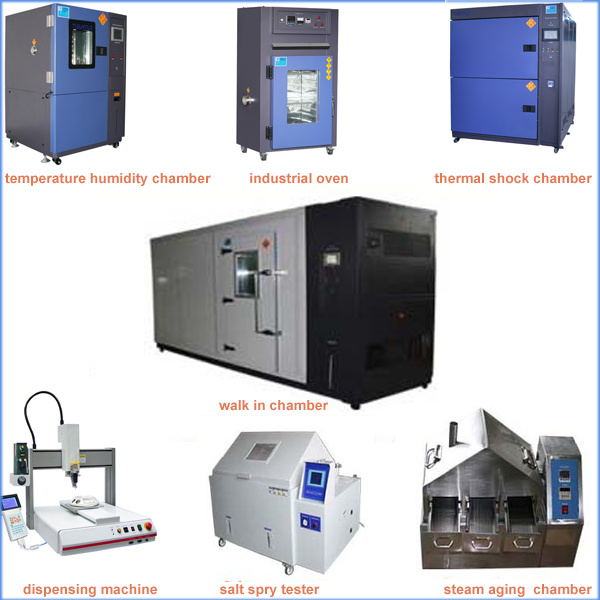

Except Vibration test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.

If you are interested in the items, please contact me soon.

Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.

Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.

We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.

We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.

Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.

We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
