Sin-Sino Industrial Development Pte. Ltd. >> High Density Multi-Tier Mezzanine Flooring Shelving System

High Density Multi-Tier Mezzanine Flooring Shelving System

High Density Multi-Tier Mezzanine Flooring Shelving System
Price: US $ 0.6-1.3/Ton
Min Order: 10/Ton
Pay Type: L/C,T/T,Western Union
Prod Model: MF-02
Certificate: ISO9001
Technical Standard: As4084 Supply 1993, Fem 10.2.02, Sema
Surface Treatment: Powder Coating

Product Description

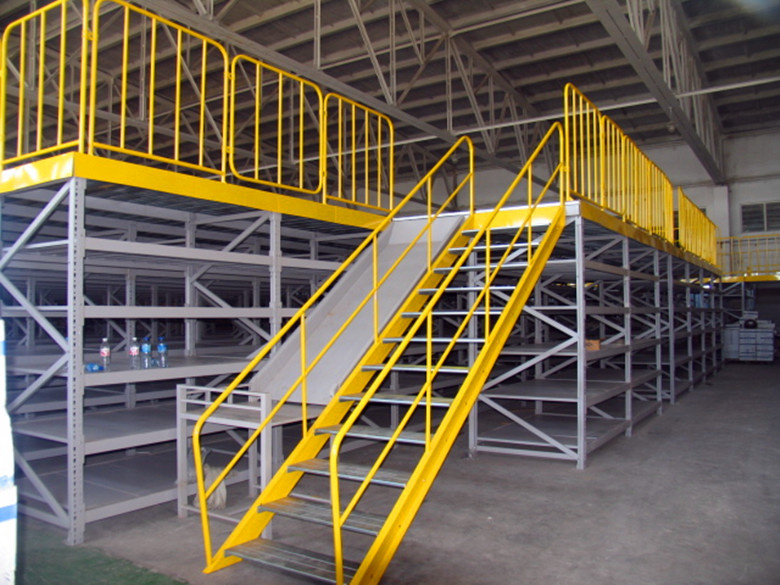

Steel Multi-Tier Mezzanine Floor Rack for Storage


SIN-SINO Rack has been designed using the Australian Standard AS4084 Supp1 1993.This standard is predominantly based on the American Rack Manufacture Institute Specification (RMI) when used at its lower tier, although it also takes information from the British Storage Equipment Manufactures Association(SEMA) and the European Racking Code FEM 10.2.02 for the higher tiers of the standard.

Mezzanine Rack System usually takes sectional material, medium or heavy duty rack as the main structural support, and the floors will be attached to add the upper second or third levels to increase vertical storage space.
Multiple models of platform or mezzanine racks with the lighting system even simplified accessing and storage management.
The weight capacity of the mezzanine flooring is usually within 500kgs per square meters and the height between 2.2 and 2.7 meters for each floor level.
Light duty, small and medium sized goods are usually loadable on the floor for long-term storage.


Features:
1. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
2. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.

Specification:

Specification:

Specifications of Beam
Type ItemHeight(mm)Width(mm)Thickness(mm)
P style Pipe(Step Beam) 150301.5
260401.5
380501.5
4110701.5
5140701.5
6160701.5
Box Beam 780501.5
8100501.5
9110501.5
10120501.5
11140501.8
12160502.0

Specifications of Upright
ItemWidth(mm)Depth(mm)Thickness(mm)Loading Capacity(kg)
185671.67000
285671.88500
385672.010000
485672.312500
5100671.810500
6100672.012000
7100672.313800
8100952.012000
9100952.314500
10100952.516000
11100952.7518000
12100953.020000
13120952.517000
14120952.7519000
15120953.021000
1655551.54000
1755551.85000



For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity(kg) of each level?
4. Racking Quantity?
(No mimimum limit for our proudction, but to keep the most economical shipping costs
as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.

Package & Delivery:
Delivery:15-20 days after receive the down payment.
Packing:Standard Export Seaworthy Packing.

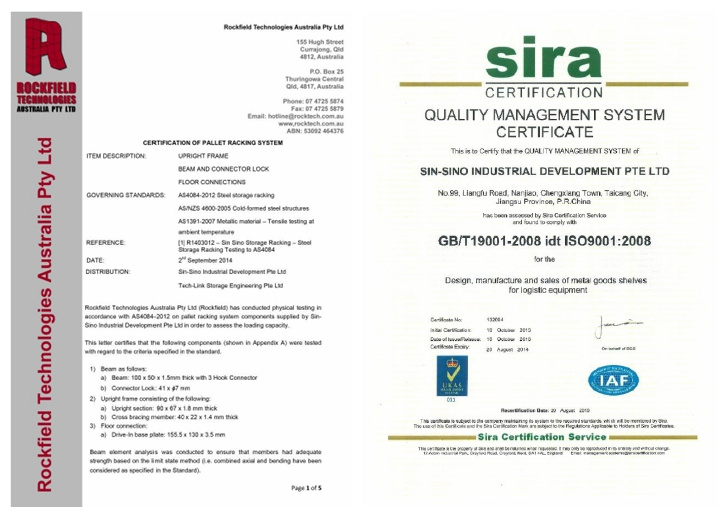

Certificates: ISO & AS4084


Frequently Asked Question
What makes you different with others?
1) Our Excellent Service for a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.

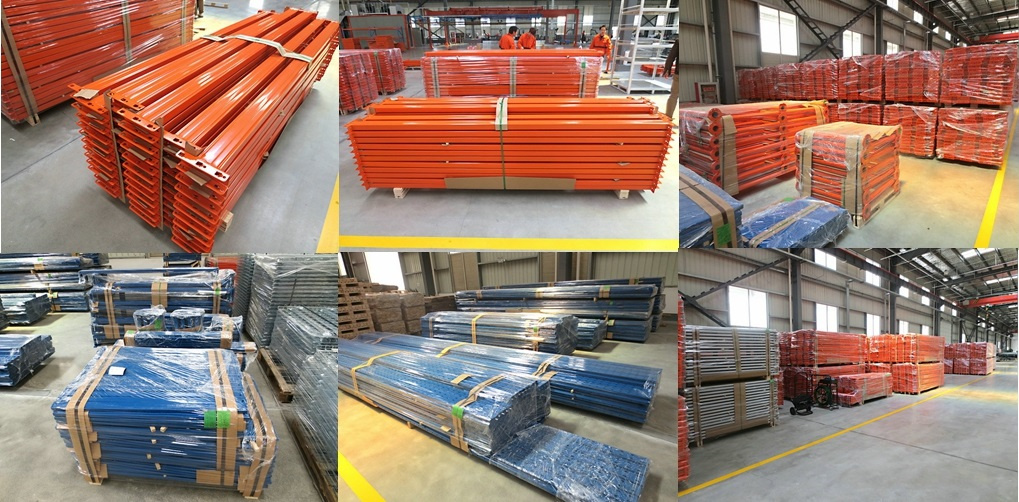

3)Our Special Export Design that We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty !

2. What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days.
The delivery time of the special products is according to the time of setting up of the tooling.

3.What is the term of payment?
1) T/T payment.
2) LC at sight

4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

5. Are samples available?
Yes, we can send some sections of samples for your reference by express.

About Sin-Sino:
SIN-SINO United was incorporated in Tai Cang, Jiangsu province PRC in 2011. SIN-SINO United State-of-the-art factory is located at Tai Cang New Industrial park, site area 63, 000 sq meter with a total investment of USD100 million
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions

SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.

Our Mission :
To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.

Sin-Sino United Looks Forward to Being Part of Your Success!
Sin-Sino United was incorporated in Tai Cang, Jiangsu province PRC in 2011. SIN-SINO United State-of-the-art factory is located at Tai Cang New Industrial park, site area 63, 000 sq meter with a total investment of USD100 million

Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions

SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.

Our MISSION

To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.

Sin-Sino United looks forward to being part of your success.
