Easily Adjustable Longspan Shelving with High Quality

Easily Adjustable Longspan Shelving with High Quality
Price: US $ 1/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 10/Ton
Pay Type: L/C,T/T
Prod Model: LR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: ISO9001, As4084
Warranty Time: 10 Years
Material: Steel
Style: Backplane Style
Side Number: Double Sided
Weight: Heavy Weight
Rotary: Fixed
Usage: Convenient Store
Customized: Customized

Product Description


High Quality Longspan Shelving

A solution to all manner of storage requirements, Stormor Longspan is equally effective at home with a single shelving set up or as part of a high risenarrow aisle scheme. Stormor Longspan's comprehensive range of pre-fabricated frames and beams gives maximum versatility, accommodating a wide range of storage situations. A choice of beams meets every loading requirement from medium to extra heavy duty and special locking clips prevent accidental dislodgement once shelves are in place. Easily assembled, the system can be used to create custom built installations suitable for most commercial, industrial and retail environments.

Stormor Longspan offers theutmost in quality. With a choice of standard colour uprights and shelving, the system provides multi-purpose storage with a clean, modern appearance and a wide range of components allows you to extend Longspan's capabilities even further.


60 Style Longspan Shelving

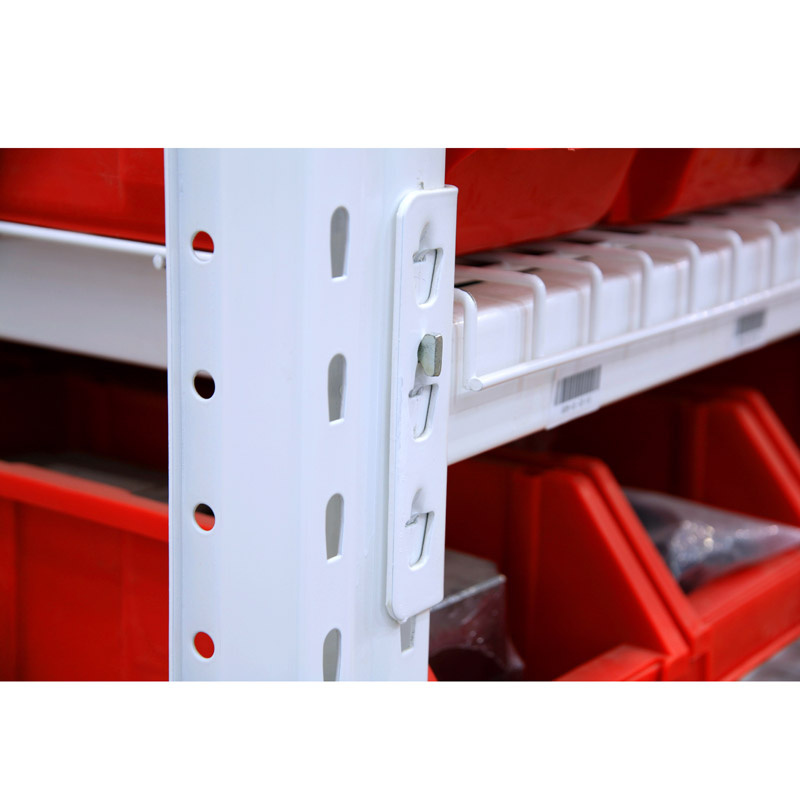

The structure is inserting connected by  frame and beam. The beam can be adjusted by 50mm distance for heavy loading and rack with long bays, normally with 300-800kg per layer. The layer can be used by steel. Paring, fiber, or wood.
Standard Specifications of 60 Style Longspan Shelving

Depth of Frame(mm)Height of Frame(mm)Length of beam(mm)
4001800800
45020001000
50025001200
60030001500
70035001800
80040002000
90045002300
100050002500
Surtace Treatment: Static powder paint coating
Color:Customized


Beam specifications

P Step BeamC ChannelRHS Beam
50*30*2550*30*2550*30
60*40*2864*35*3760*40
80*50*28 80*40

Integral beam(G style)/60 Style Capacity

Beam L
Specifications

1500

1800

2000

2300

2500

2700
50*30*1.5 P Style Beam33023018014011090
60*40*1.5 P Style Beam660460370280230200
50*30*1.5 P RHS Beam430300240180150125
60*40*1.5 P RHS Beam770530430330280240
80*40*2.0 RHS Beam180012001050950800690



Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.



For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity of each level?
4. Racking Quantity? (No mimimum limit for our proudction, but to keep the most economical shipping costs
as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.

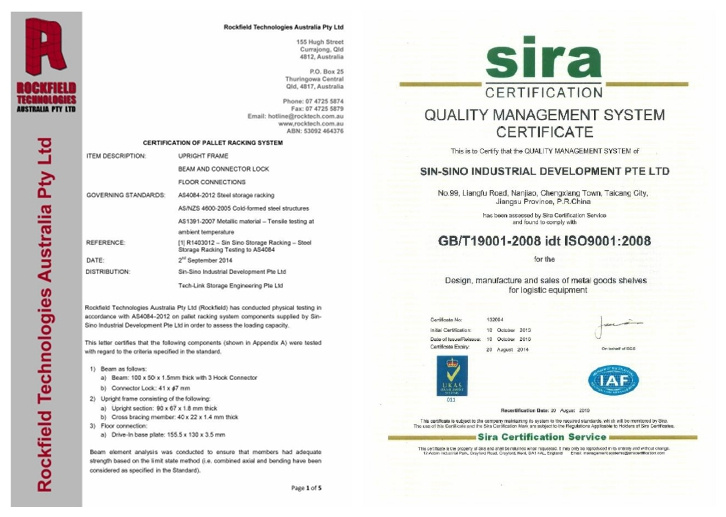

Certifications:ISO9001&AS4084



Frequently Asked Question

  1. What makes you different with others?

1) Our Excellent Service for a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.

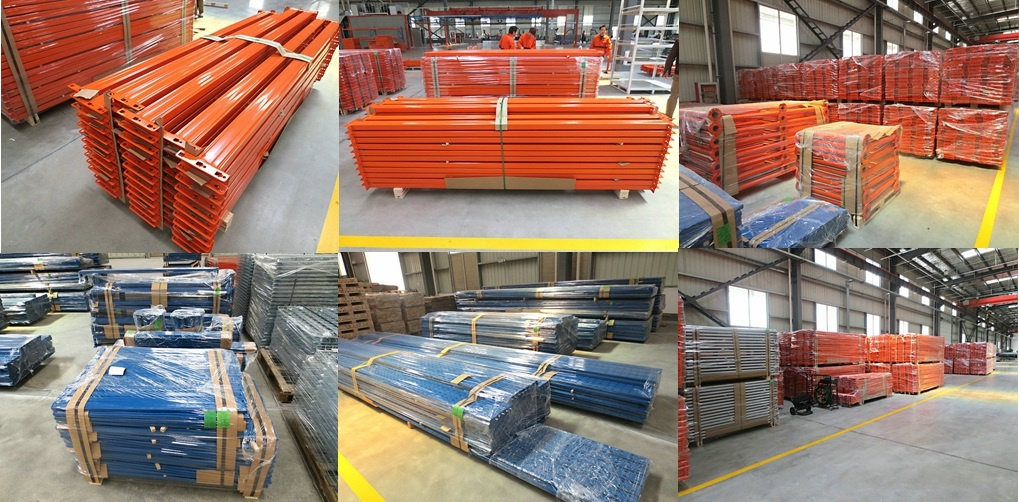

3)Our Special Export Design that We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for your normal use, it is the Longest Manufacturer's Warranty !


2. What is delivery times?
This depends on the product. Typically standard products are delivered within 15 days. The delivery time of the special products is according to the time of setting up of the tooling.


3.What is the term of payment?
1) T/T payment.
2) LC


4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.


5. Are samples available?
Yes, we can send some sections of samples for your reference by express.

About Us

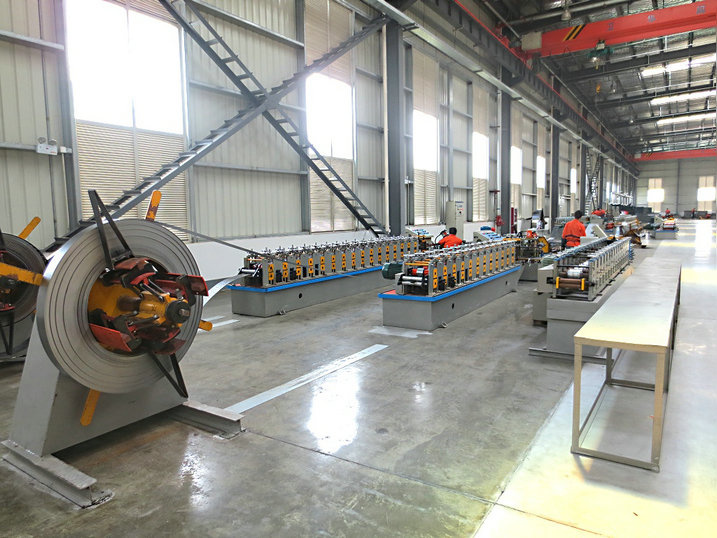

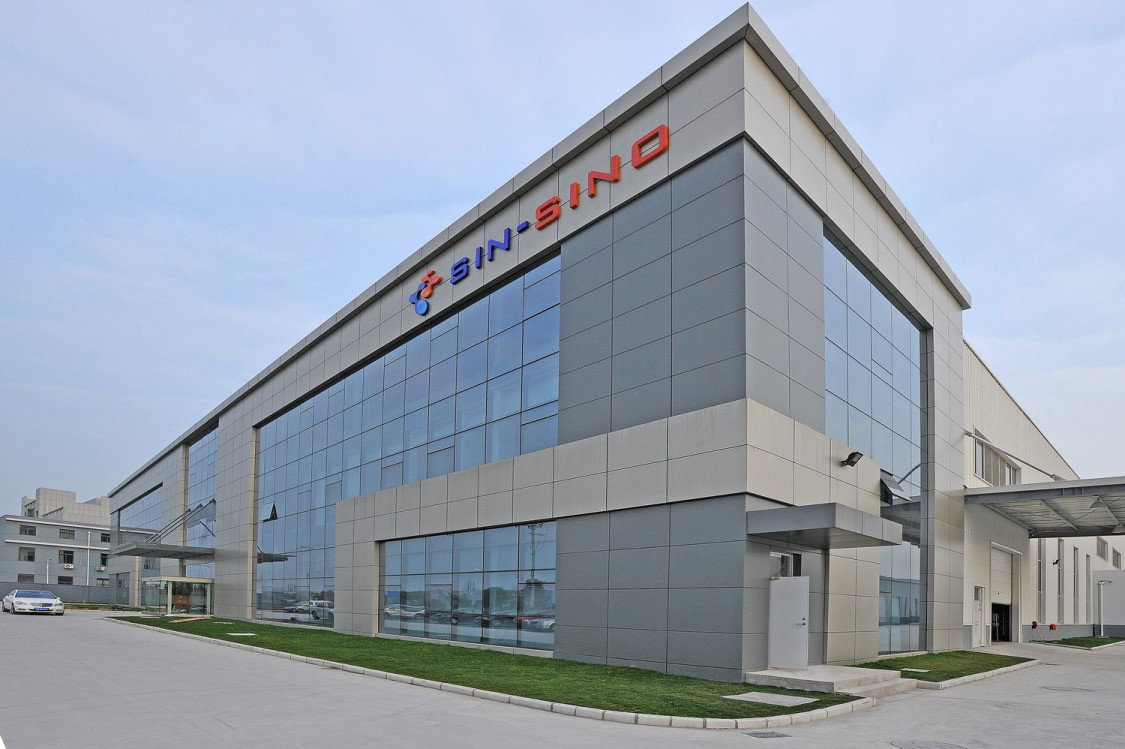

Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.

Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify  end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.





Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.

Sin-Sino United looks forwards to being part of your success
Sin-Sino United was incorporated in Tai Cang, Jiangsu province PRC in 2011. SIN-SINO United State-of-the-art factory is located at Tai Cang New Industrial park, site area 63, 000 sq meter with a total investment of USD100 million

Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions

SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.

Our MISSION

To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.

Sin-Sino United looks forward to being part of your success.
