| Prod Model: |
YJG-R26 |
| Certification: |
ISO9001/ISO14001/ISO18001 |
| MOQ: |
100 PCS |
| HS Code: |
73089000 |
| Material: |
Steel |
| Structure: |
Rack |
| Mobility: |
Adjustable |
| Closed: |
Open |
| Development: |
Conventional |
| Serviceability: |
Common Use |
| Height: |
Sizes Can Be Customized |
| Weight: |
500-4000kg/Level |
Product Description

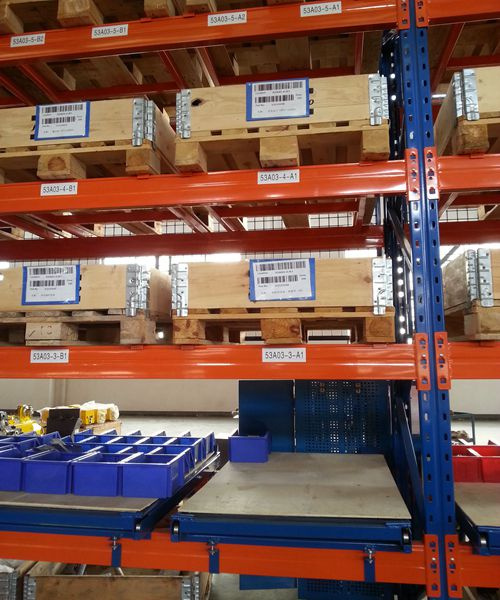

Heavy Duty Warehouse Pallet Racking System/StorageRack/Storage Rack/Pallet Rack/Rack/Shelf

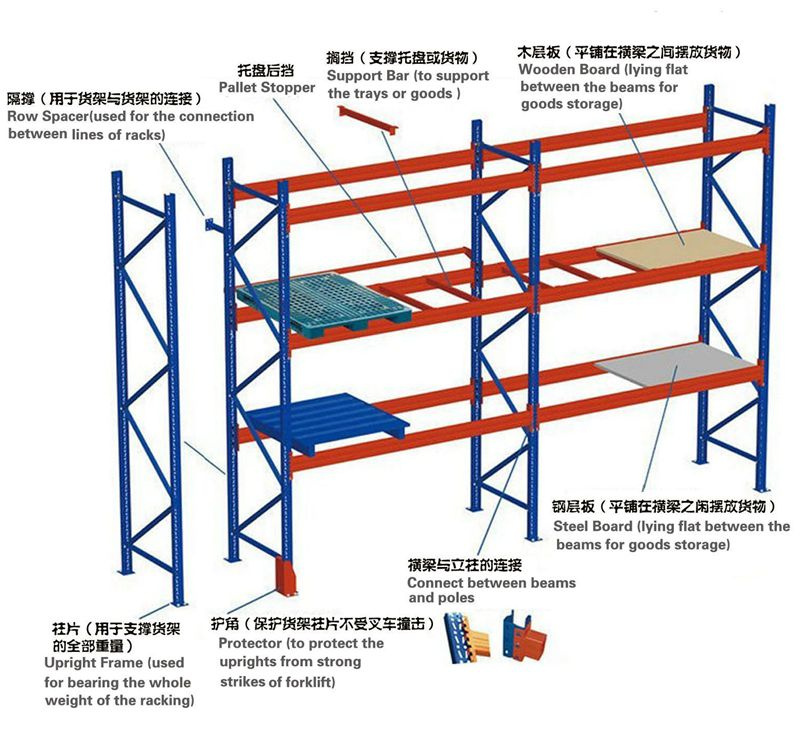

Selective pallet racking usually consist of upright frame, beam, pallet support and other standards components.
H-bracing and D-bracing connect with upright by nylon self-lock bolts, can effectively prevent racking from losing balance cause, by the release of the bolts; Drum-shaped holes are punched on the upright, so beam can be adjusted by 75mm.
Standard pallet racking is by far the most versatile of any racking as it is available with many configurations, a wide range of accessories and required no specialized handling equipment. Pallet racking is easily utilized with just standard fork and hand-trucks. Pallet racking is an ideal point for all your warehouse and storage needs.
Adjustable pallet racking systems come in many different styles, but it is important to get the basics right. For safe and effieient operation, pallet racking systems must be designed to fit and function with both the handling equipment and the load. It may have to work with counterbalance trucks, reach trucks, narrow aisle trucks or automated handling equipment.
The basic elements for designing the Selective Pallet Racking:
1. The dimension of the pallet and height of the cargo (W*D*H);
2. The weight of the goods (including the pallet or container);
3. Hoisting height of the forklift and the clear height can make use of the storage;
4. Models or parameters of the forklift truck;
5. The direction of access of the forklift fork to goods.

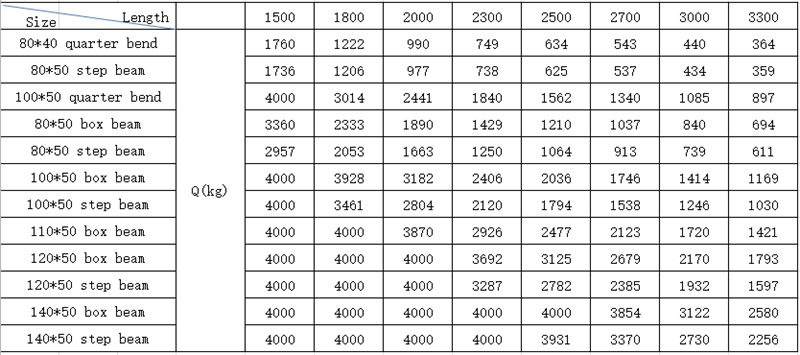

The Bearing Load Tablel of the Beam
We are looking forward to your inquiry soon!
Yuanjin Science & Technology Group Co., Ltd. Which is located in Zhangshu, Jiangxi, China. Companies registered capital of 61.88 million Yuan, with a total investment of 180 million Yuan, covers an area of over 30, 000 square meters.
It is known as the State High-tech Enterprise possessed strong technical force and well-equipped workshop. Moreover, it converges a number of talented staff who are expert at the field of machine, CNC machinery (Computerized Numerical Control machinery), product research, software development and so on. And has a number of advanced CNC mechanized assembly line and automatic picking, phosphating, electrostatic spray lines introduced from Germany. The main products are: File equipment, books equipment, storage equipment, medical equipment, insurance equipment, office furniture, six series and over 512 varieties. Various products has been selling throughout the country and exported to Russia, Brazil, South America, Southeast Asia and other countries and regions.
Our main products as below:
1. Library equipment series:
1) Mobile shelving for archive storage (including manual shelves and power shelves);
2) Bookshelf (material: Steel or steel/wood);
3) Steel cabinets;
4) Carrels and chairs;
2. Office equipment series:
1) Office tables and chairs;
2) File cabinest;
3) Various steel lockers;
3. Insurance equipment series:
1) Iron cash box;
2) Explosive storage;
3) Vault door
4. Industry storage
1) Pallet racks;
2) Pallets and wire containers;
Yuanjin Products have their own core technology and intellectual property. 81 items' technologies obtained national patent certificates. "Yuanjin" trademark is identified as "Chinese Well-known Trademarks" by the State Administration of Industry and Commerce. "Yuanjin" brand compact shelving and bookshelf products are named "Jiangxi Province Famous Brand Products" which has passed through the ISO9001 quality management system certification, ISO14001 environmental management system certification, China Environmental labeling products certification, and OHSMS18001 occupational health and safety management system certification.
Adhering to the spirit of "quality is source, credit is gold'', Yuanjin insists on leading the way for high quality products and superior service, providing you with perfect solutions on the filing storage and industry storage.
