| Prod Model: |
CLW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |

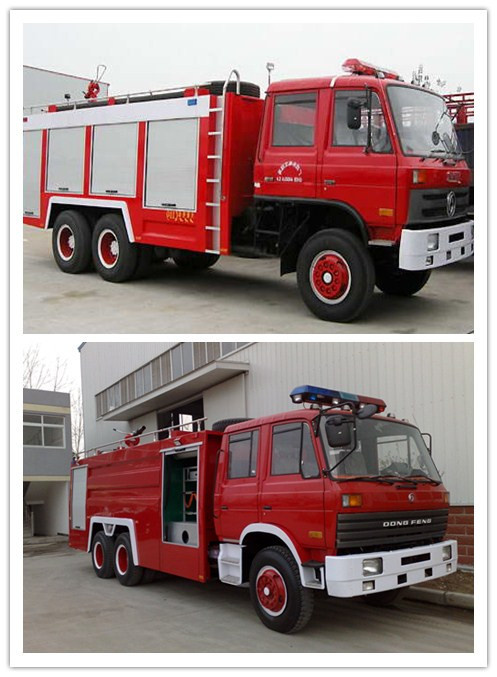

Heavy Duty Dongfeng 6*4 Water-Foam Fire Truck for |
| Volume Of Tank: |
5cbm Water and 3cbm Foam |
| Allowable Passengers In Cab: |
2+3 |
| Engine Brand: |
Cummins |
| Water Tank Capacity: |
11cbm 12cbm 13cbm |
| Water Rated Flow: |
30L/S |
| Fire Monitor Range: |
More Than 45m |
| Max Speed: |
90-110km/H |
| Exhaust: |
8900ml |
| Export Markets: |
Global |
| Type: |
Tanker |
| Certification: |
CE |
| Volume: |
＞10000L |
| Emission Standard: |
Euro 2 |
| Transmission Type: |
Manual |
| Payload: |
20T |
| Fuel: |
Diesel |
| Drive Wheel: |
6?á4 |
| Horsepower: |
351-450hp |
| Condition: |
New |
Product Description
Product Description
1. We are professional manufacturers to do the special vehicles. We are supply all brands of special truck, north Benz(beiben), Faw, Foton, Shaanxi, Sinotruck, JAC, JMC, Isuzu, Dongfeng.
2. The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. Widely used in chemical enterprise, oil depot, storehouse, shop and terminal market. It also can be used as main fire truck for professional fire brigade of large and medium city.
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
More pictures about different kinds of Fire Trucks

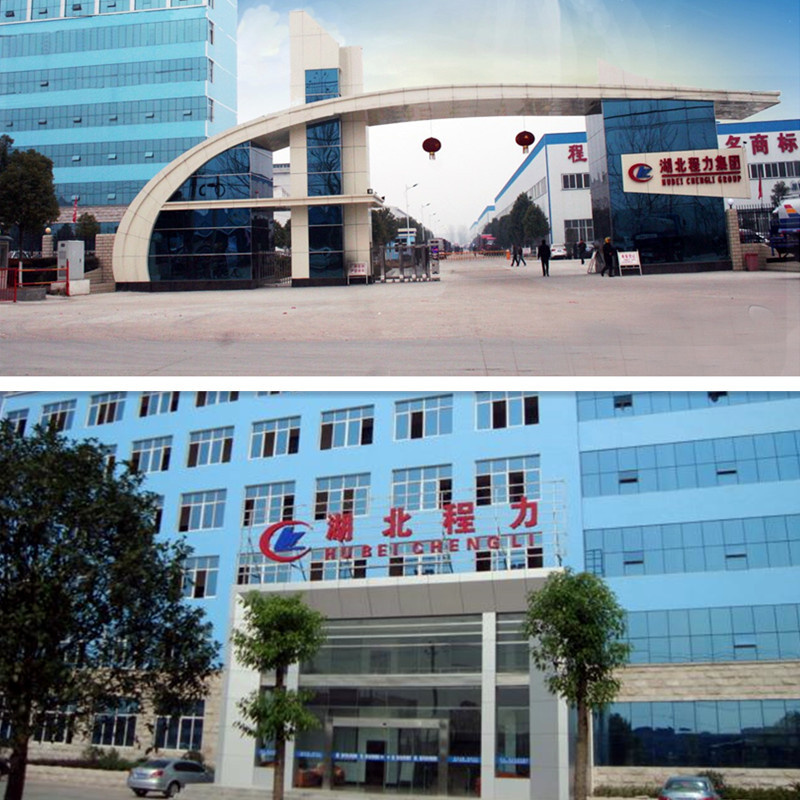

Factory Show
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Item | unit | parameter |
| Vehicle model | | Dongfeng Fire-fighting Trucks |
| Chassis model | | DFL5330XFA3 |
| Overall dimensions | mm | 10180X2485X3680 |
| | Curb Weight | kg | 14920 |
| Payload | 15450 |
| | Wheel base | mm | 4350+1300 |
| | F/R track base | 1460/2820 |
| Exhaust/hp | ml/ps | 8900/375 |
| Max speed | km/h | 90 |
Tire specification
| 11.00R20 | Engine type
| ISLe375 30 |
Traction system
| 6*4 | Transmission
| 6-speed with over drive |
Number of axles
| 3 | Axle Load
| 6320/24500 |
| Leaf Spring | 10/12 | Allowable passengers in Cab | 2+3 |
| Engine | Cummins ,6-cylinder in-line with water cooling GB3847-2005 emission standard |
| Equipment | Cabin: Flat head, metal-enclosed cab, double-row seat, four door, panoramic curved windshield
Water Tank Capacity 12450L, Powder Tank Capacity2600L
Fire Monitor range: ≥ 45M
Pump: type ES30, Water Diversion Way: circulation,
Water Diversion Time: ≤35s, Rated Flow: 30L/s
Pump Room: Middle or rear-mounted pump. Left and right side of the pump room, storage compartment side have the new style high-strength alloy aluminum rolling doors
|
Exporting
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana
If you are interested in our trucks, pls contact me, I will send our best quotation to you!
Contact Information
Sale Manager: Cicy Ma
Tel/Fax : 00862783796298
Cell:0086-13872882026
Website:truckcl.en.alibaba.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
CLW Heavy Industry Co., Ltd is a top manufacturer producing over 800 kinds of special trucks.
CLW Heavy Industry Co., Ltd cooperates with famous enterprises, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON, CAMC, and etc.
CLW Heavy Industry Co., Ltd takes customer's satisfaction as the top requirement. All of the trucks and semi-trailer were sold to Kenya, Ethiopia, Nigeria, Tanzania, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle-east, South-east-Asia, African, South-African, Australia and so forth.
CLW Heavy Industry Co., Ltd export's turnover has reached 20million dollars and our products have been sold to more than 50 countries.
CLW Heavy Industry Co., Ltd Special automobile Co., Ltd also provide products as follows:
1. LPG Tank/LPG Skid Station/LPG Truck Trailer/ Fuel Tanker Truck
2. Tractor
3. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Van truck / Blasting equipment transporter/ Refrigerated truck
7. Cement Powder Tank truck/ Bulk cement truck
8. Garbage compactor truck, sealed garbage truck
9. Sweeper Truck
10. Concrete mixer truck/ asphalt distributor truck/concrete mixer pump truck
11. High-altitude truck/truck with crane
12. Chemical liquid transportation truck
13. Flat transportation truck/wrecker truck
14. Seage suction truck/Fecal suction truck
15. Semi Trailer Semi-trailer Semitrailer
16. All the spare part and accessories of the special truck and LPG products.
And so on
