| Price: | US $ 4500-4600/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | FCT-1325W |
|---|---|
| Markets: | North America,South America,Southeast Asia |
| Machine Size: | 1600X2625mm |
| Working Size: | 1300X2500X200mm |
| Spindle Power: | Water Cooling or Air Cooling 3kw |
| Spindle Rotation: | 6000~24000mm/Min |
| Type: | Engraving Router |
| Spindle Layout: | Horizontal |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Customized: | Customized |
| Color: | Customized |

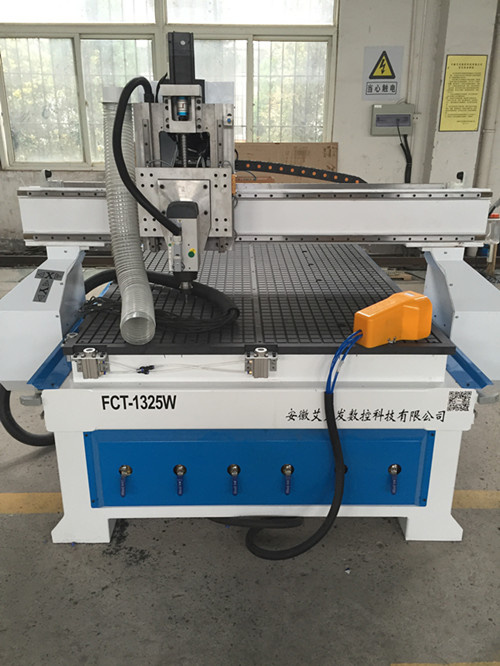

Model | FCT-1325W |
Machine Size | 1600x2625mm |
Working Size | 1300x2500x200mm |
Spindle Power | water cooling 3KW |
Spindle rotation | 6000~24000rpm |
Motor driver | Stepper motor |
Tool diameter | 3.175,6,12.7mm |
Machine structure | Industry Square Tube Structure |
Transmission | High accuracy gear rack |
XYZ rails | PMI square rails |
control system | NC STUDIO OR DSP |
Machine accuracy | less than 0.03mm |
Engraving speed | 12000mm/min |
Data transmission | PC-connection directly or USB |
Support format | G code or HPGL |
Working voltage | AC220V/50Hz or 380V/50Hz |
Net weight | 1200kg |

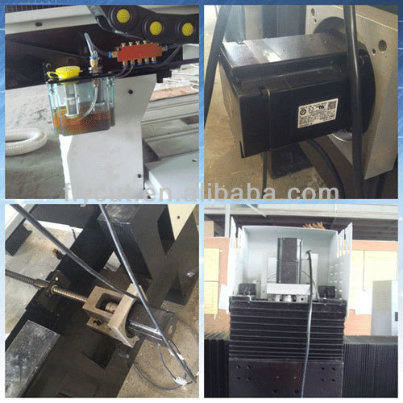

Machine Parts Show:

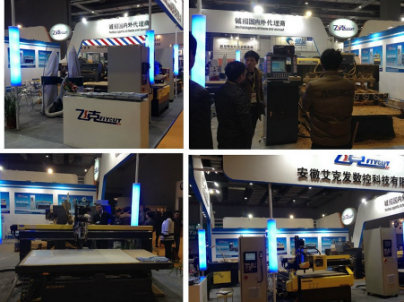

Shanghai Exhibition Trade Show:
About after-sale service:
1.One year warranty for the whole machine and maintenance for lifetime.
2.Under normal usage,1 year for the whole machine,lifelong technical support.
Technical Support by 3 ways:
Choose 1.
We will supply the machine with training video and user's manual.When you meet some problems of installation, using or adjusting.We can give you technical guide by e-mail, fax,telephone,skype and so on.(Recommended)
Choose2:
You can come to our factory for training. We will offer professional guide,direct and effective face-to-face training. Here we have a full set of equipments and sorts of tools and testing facility.
Training Time: 3~7 days (Recommended)
Choose3:
Our engineer will do a door-to-door instruction training service at your side,you need to bear round-trip tickets and accommodation.
Training Time: 5~7 days (Not Recommended)
3.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
4.Door to door service, you just need to bear round-trip tickets and accommodation.
5.Free installation,testing,training before shipping.
About package and shipping:
1.Water-proof plastic film package with foam protection in each corner.
2.Make shipment by sea.
Please note, the price is NOT include shippment charge, and it will take around 35 days for shipping.
FAQS:
1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and the balance paid to us before delievery date.
2.How long is thedelievery time?
For standard machines, it would be 7 days; For non-standard machines and customized machines, according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
