| Prod Model: |
6S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Gelin |
| Feeding Size: |
0.074-2mm |
| Feeding Density: |
30%~50% |
| Testing: |
Supply |
| After Service: |
Supply |
| Delivery Date: |
2 Days as in Stock Now |
| Place Of Origin: |
China |
| Object: |
Ore |
| Condition: |
New |
| Type: |
Mineral Processing & Screening Equipment |
Product Description
We are professional mining machine manufactures and exporters in China with over 20 years of experience, located in Jiangxi Province, covering an area of
over 30,000 square meters, having more than 30sets of heavy processing equipment and with an annual output of more than 2,000 sets of mining machinery.
Our distinctive products include shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, feeder, classifier,
ore washing machine and lab equipment ect... which are complied with environmental friendly standard, CE/ ISO9001 quality control system.
It is our commitment to satisfy your requirement, please trust that we will be your reliable business partner for our good reputation, good quality and competitive price!
Gold Processing Equipment Mining Vibration Table
1). High recovery ratio 90% above, 2). Used for separate gold, zircon, chrome, tin, copper, iron, tungsten, 3). High quality with 12 months guarantee, 4). Easy operate & maintain, 5). Produce by China biggest gravity mining machine factory.

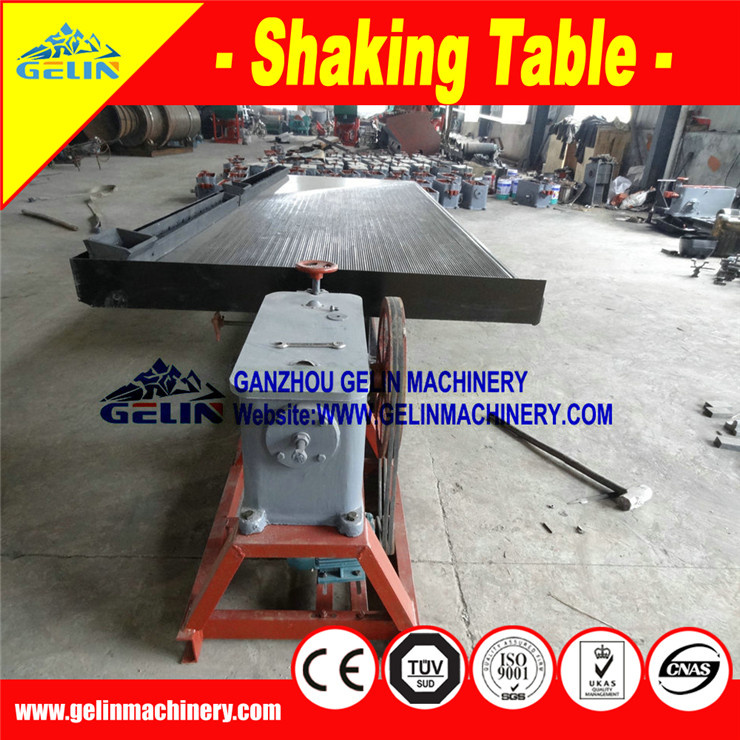

Gold processing equipment mining vibration table
It is widely use for separating Gold, Manganese, Chrome, Copper, Iron, Titanium, Zircon, Tungsten, Tin, Tantalum, Barium, Lead, Mercury, Aluminum, rare metals and noble metal ore.
It is wet type mine machinery, which working by gravity. Compare with traditional tool, our Gelin brand shaking table have below advantages:
1). Made by 6s firber glass material;
2). Steel structure support, easy to install and move to other place;
3). High recovery ratio, as usual more than 90% recovery ratio.
As per different particle size of raw ore, there are three distinct deck design available. The course ore deck is Designed for recovering particle size from 0.5mm to 2mm; The fine sand deck is designed for recovering fine particle From 0.15mm to 0.5mm; The slime deck is designed for recovering super extremely fine particle in the range of 0.074mm to 0.15mm.
Welcome to visit our factory in your free time!
| Model | 6s-7.6 | 4.08 | 1.95 | 0.5 |
| Deck type | Coarse ore deck | Fine sand deck | Slime deck | | | |
| Benefication Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 |
Deck
size | Length(mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
| | Transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 |
| | Concentrate end width (mm) | 1546 | 1546 | 1546 | 1100 | 850 | 430 |
| Maximum feeding size(mm) | 2 | 0.5 | 0.15 | Sand -2
Slime-0.1 | Sand -2
Slime-0.074 | Sand -2
Slime-0.074 |
| Feeding amount | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h |
| Feeding density(%) | 25-30 | 20-25 | 15-25 | 10-30 |
| Stroke(mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 |
| Frequency(F) | 45-220 | 53-250 | 60-280 | 210-320 | 250-450 | 280-460 |
| Water added | 1-3t/h | 1-3t/h | 1-3t/h | 0.4-2t/h | 0.2-1t/h | 0.1-0.5t/h |
| Transverse slope of deck | 2°30-4°30 | 1°30-3°30 | 1°-2° | 0-10° | 0-8° | 0-10° |
| Longitudinal slope of deck | 1.4 | 0.92 | --- | --- | --- | --- |
| Cross-section shape of deck | rectangular | saw-tooth | triangle | --- | --- | --- |
| Motor power(kw) | 1.1 | 0.55 |
| Transmission mechanism | Eccentric linkage |
Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in the Industrial Zone of Shicheng County, Jiangxi Province.
Our distinctive products include Shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment etc. Our machines are popular in separating gold, copper, manganese, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, etc.
Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India, the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. We have won high reputations from all of our clients for our machines and services.
Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers. If you are in need of detailed information, please inform us. We will provide you with total solutions according to your specific requirements in time.
As a leading provider of mining machines in China, we will continue to do our best to offer customers the best quality products and services at competitive prices, to meet variable challenges and keep advantageous.
