Top Quality Black Sand Washing Plant Vibrator Table
| Price: |
US $ 2200/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
6s-7.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service: |
Engineers Available to Service Machinery Overseas |
| Material: |
Fiber Glass |
| Structure: |
Glass Steel |
| Support: |
Steel |
| Certificate: |
Ce |
| Installation: |
Guidance |
| Quality: |
High Reputation |
| Type: |
Linear |
| Object: |
Ore |
| Shaft Number: |
Single |
| Condition: |
New |
| Works: |
Gravity |
Product Description
Top Quality Black Sand Washing Plant Vibrator Table
High quality concentrator table prospecting equipment for chromite

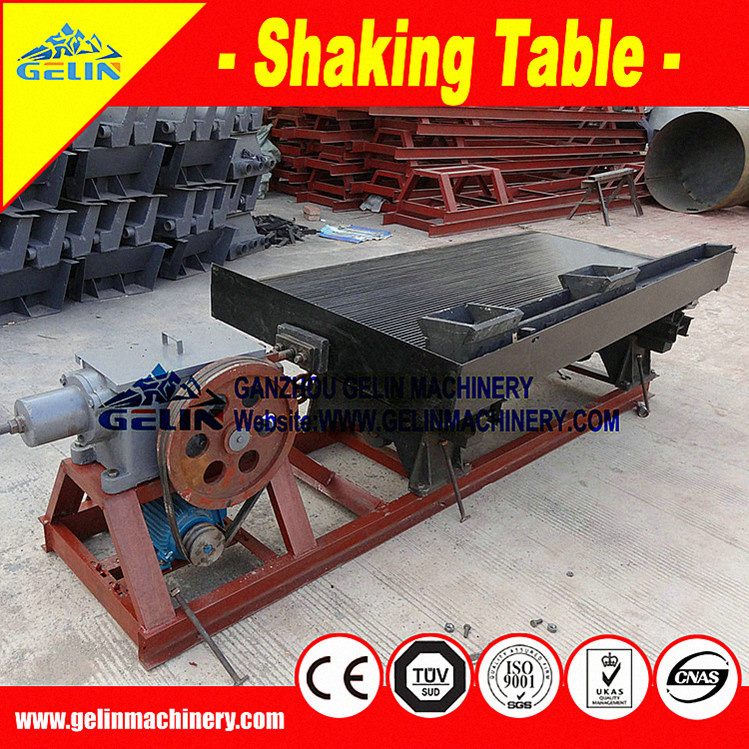

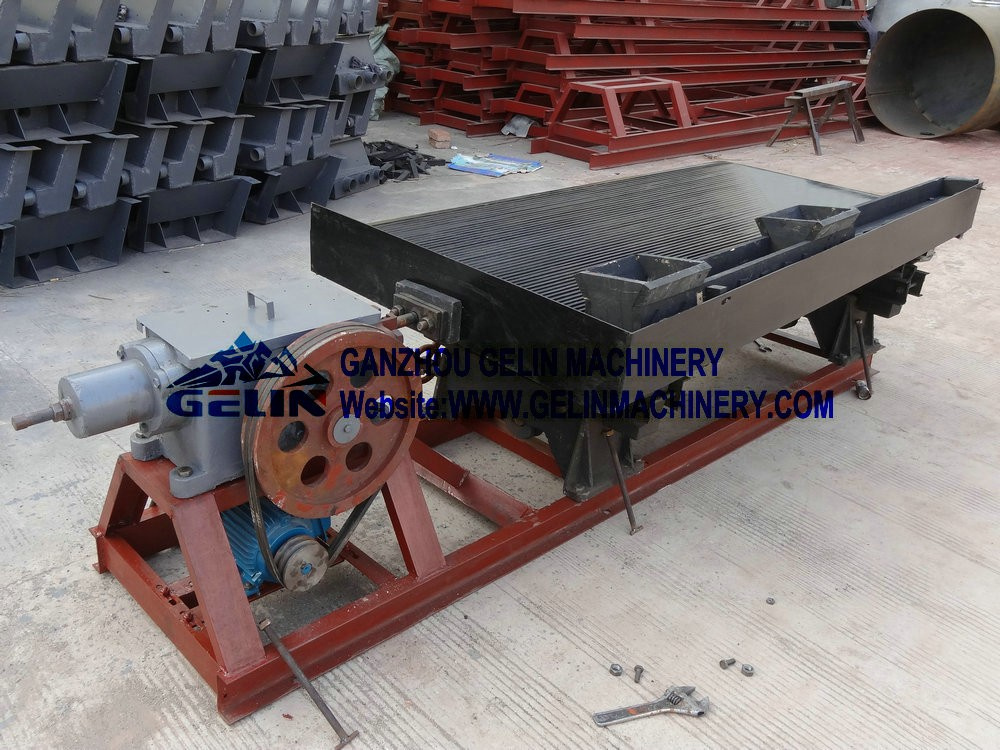

Shaking table for sale is one of the main equipments of gravity concentration. Gravity Concentration Equipment is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.
Working Principle

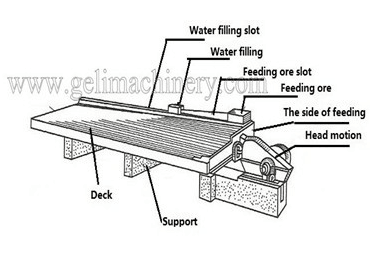

The working principle of shaking table for sale is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
Features:
1.High recovery ratio;
2.High concentration ratio;
3.Easy installation;
4.Simple operation;
5.Deck constructed of fiber glass;
6.Seven different decks to choose;
7.Long working life;
8.Adjustable stroke length and speed.
Gelin Service
1. We will design equipment for clients, based on client's working condition.
2. Our engineer can go abroad to install/maintain mining machine.
3. One Year Warranty is provided, and spare parts supply and maintenance guidance for lifetime
4. Strick testing before shipment
Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in Guzhang industrial zone, Shicheng county, Jiangxi province, covering an area of over 30, 000 square meters, having more than 30 sets of heavy processing equipment and with an annual output of more than 2000 sets of mining machinery. There are more than 5 medium and senior engineers in our company. We have a strong R&D department and have been cooperating with domestic and overseas Scientific Research Institutes for many years. Our purpose is to track international new technology in time and promptly and make continuous innovation in technology for manufacturing high-grade equipment.
Technical Data:
Producing Machine Products of Our Factory:
Including gravity mineral table concentrator, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment, full sets processing equipments for gold, zircon, tin, chrome, copper, tungsten, ilmenite, iron sand etc.| Model | 6s-7.6 | 6s-4.08 | 6s-1.95 | 6s-0.5 |
| Deck type | Coarse ore deck | Fine sand deck | Slime deck | | | |
| Benefication Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 |
| Deck size | Length(mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
| Transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 |
| Concentrate end width (mm) | 1546 | 1546 | 1546 | 110 | 850 | 430 |
| Maximum feeding size(mm) | 2 | 0.5 | 0.15 | Sand -2 Slime-0.1 | Sand -2 Slime-0.074 | Sand -2 Slime-0.074 |
| Feeding amount | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h |
| Feeding density(%) | 25-30 | 20-25 | 15-25 | 10-30 |
| Stroke(mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 |
| Frequency(F) | 45-220 | 53-250 | 60-280 | 210-320 | 250-450 | 280-460 |
| Water added | 1-3t/h | 1-3t/h | 1-3t/h | 0.4-2t/h | 0.2-1t/h | 0.1-0.5t/h |
| Transverse slope of deck | 2°30-4°30 | 1°30-3°30 | 1°-2° | 0-10° | 0-8° | 0-10° |
| Longitudinal slope of deck | 1.4 | 0.92 | --- | --- | --- | --- |
| Cross-section shape of deck | rectangular | saw-tooth | triangle | --- | --- | --- |
| Motor power(kw) | 1.1 | 0.55 |
| Transmission mechanism | Eccentric linkage |
Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in the Industrial Zone of Shicheng County, Jiangxi Province.
Our distinctive products include Shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment etc. Our machines are popular in separating gold, copper, manganese, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, etc.
Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India, the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. We have won high reputations from all of our clients for our machines and services.
Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers. If you are in need of detailed information, please inform us. We will provide you with total solutions according to your specific requirements in time.
As a leading provider of mining machines in China, we will continue to do our best to offer customers the best quality products and services at competitive prices, to meet variable challenges and keep advantageous.
