Glass Breaking Table / Glass Loading Cutting Table with Breaking Bars and Air Cushion

Name: Glass Breaking Table / Glass Loading Cutting Table with Breaking Bars and Air Cushion
Brand: thisfurniture.com
SKU: 720904282
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 10000-50000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XC-SP-4228
Max. Glass Sheet Size:	4200*2800mm
Glass Thickness:	3-19mm
Dimensions (LWH):	50002850900mm
Air Pressure:	0.6~0.8MPa
PLC:	Omron
Touch Screen:	Mcgs
Sensor:	Omron
Converter:	Teco (Taiwan)
Type:	Glass Cutting Machine
Certification:	ISO
Control System:	Galia USA

Product Description

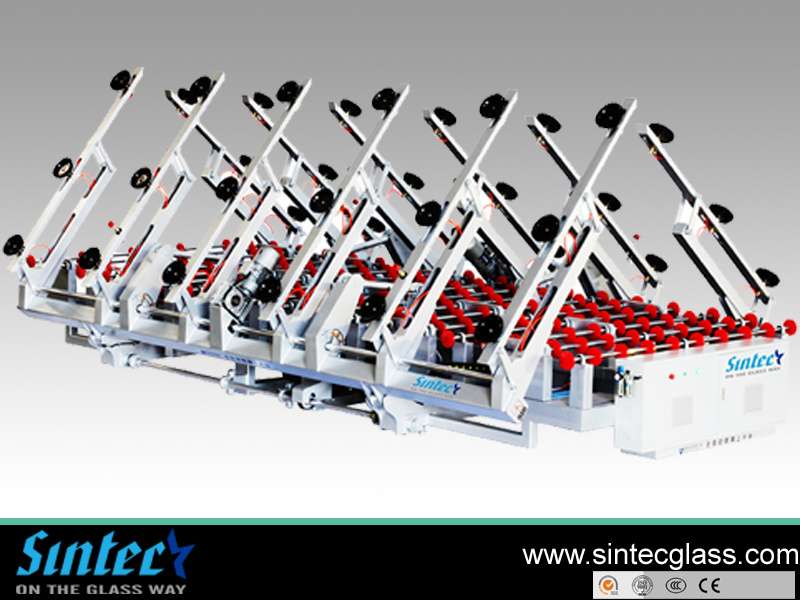

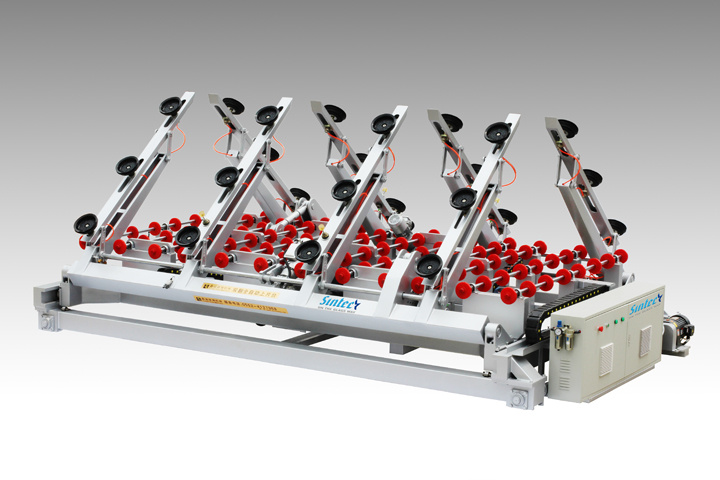

XC-SP-4228 Automatic Glass Loading Machine

Mechanical characteristic:
-          Mn bridge steel (Q345A ), perfect surface treatment
-          High quality vacuum system, fast sucking speed and high stability
-          One key original reset function, for improving work efficiency
-          Trouble alarm system and safety alarm system
-          Four-bar linkage glass lift structure
-          High density PU material glass convey wheel
-          Acrylonitrile-butadiene rubber suck disc
-          40CBM/hour vacuum pump
-          Enclosed wire and air pipe set

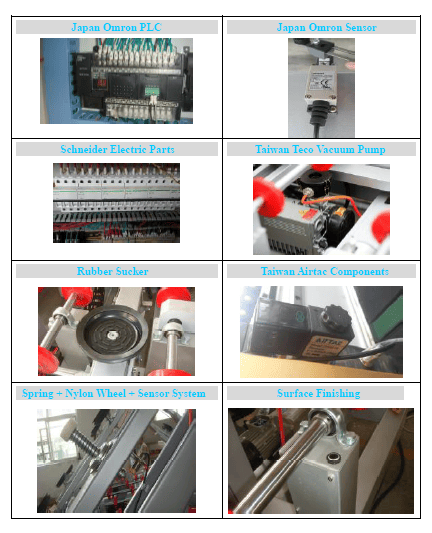

Main parts list:
      PLC: Omron (Japan)
      Touch screen: MCGS
      Converter: Teco (Taiwan)
      Sensor: Omron (Japan)

Technical introduction:
-          Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm
-          Chain convey after glass suck
-          Both auto and manual modes
-          Auto alarm system and emergency button for make sure safety operation
-          English language touch screen operation
-          Glass sheet quantity and station position auto set
-          Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table

Technical parameter:

Model	Max. glass size	Thickness	*Dimensions (LWH)*	Power	Air pressure
SP-2620	2600*2000mm	2~19mm	35602200900mm	8KW	0.6~0.8MPa
SP -4228	4200*2800mm	3~19mm	50002850900mm	8KW	0.6~0.8MPa
SP -5133	5100*3300mm	3~19mm	54003000900mm	8KW	0.6~0.8MPa
SP -6133	6100*3300mm	3~19mm	64303340900mm	8KW	0.6~0.8MPa

Sintec Glass Machinery Co., Ltd., is located in a beautiful pearl City -- Bengbu, Anhui Province, is a professional high-tech enterprises which produce various kinds of glass cutting machines in China since 2009.

To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.

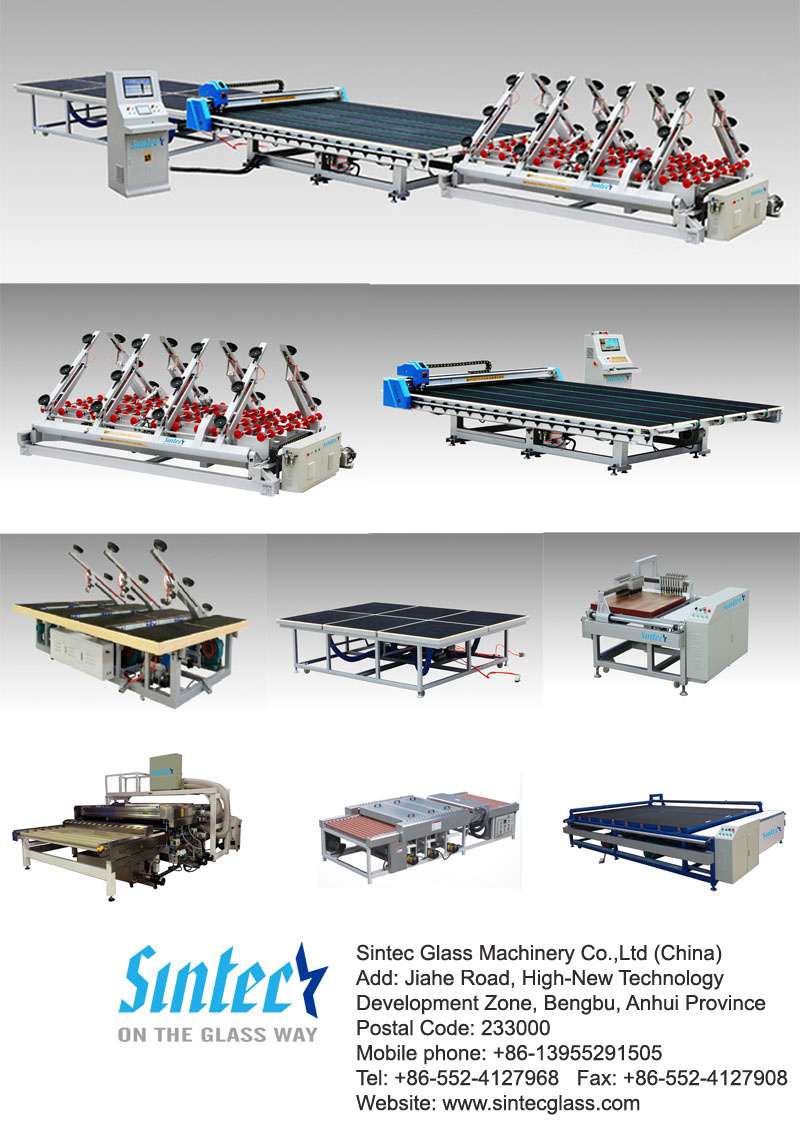

After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.

Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.

Sintec for its excellent quality and perfect after sale service by the customers trust and support,

We will take sincere attitude of friends at home and abroad, joint development of glass machinery manufacturing industry brilliant tomorrow!
