| Prod Model: |
XH-D-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L2150*W940*H500mm |
| Business Type: |
Manufacturer |
| OEM: |
Available |
| Factory Location: |
12 Hours Drive From Beijing |
| Warranty: |
12 Months |
| Export Markets: |
Global |
| Material: |
Metal |
| Type Of Hospital Bed: |
Manual Bed |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Two-function |
| Certification: |
ISO9001 |
Product Description

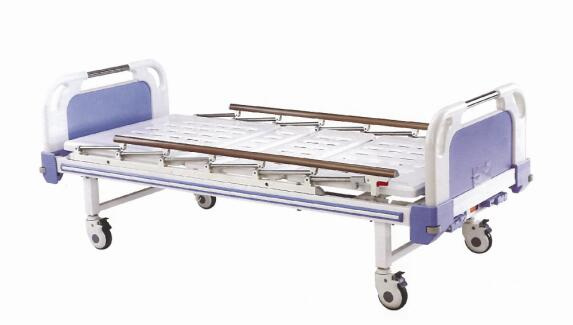

Full-fowler Manual Patient Bed with Two Cranks
Model: XH-D-2
Overall Size: L2150*W940*H500mm
Technical Specifications:
1. Detachable and lockable ABS material bed head and footboard
2. Bedboard is made of cold-roll steel sheet. Puching press and shaping in one time. Antil slip system in both side of the board
3. Epoxy painted steel frame is resistant to corrosion.
4. Two functions adjustable by mechanical crank handles on the bed end:
Back rest can be lifted 0-70°±5°
knee rest can be lifted 0-35°+5°
5. ABS crank handles with overloading protection system.
6. Mounted on 125mm diameter four steel castors with individual brake
7. Equipped with a pair of aluminum alloy folding side rails.
8. Four ABS plastic bumpers on each corner
9. Maximum load: 235kgs
| Product name | Full-fowler Manual Patient Bed with Two Cranks (XH-D-2) |
| size | L2150*W940*H500mm |
| Headboard and footboard | ABS material bed head and foot boards |
| Frame material | Mild steel, epoxy powder coated |
| Functions adjustable | Manually by crank handles |
| Back rest | 0-70°±5° |
| knee rest | 0-35°+5° |
| Max Loading | 235kg |
