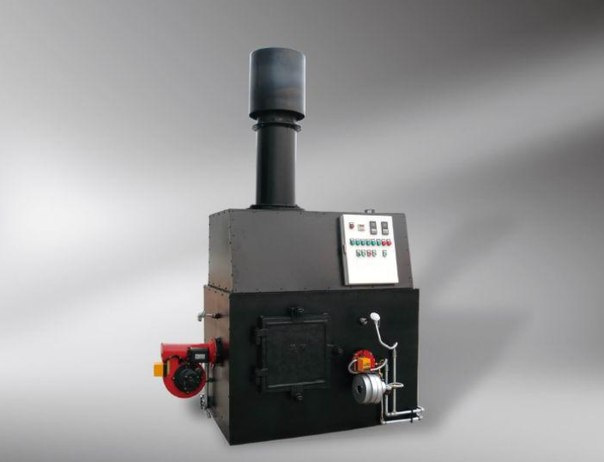

Fsl Model 20-500 Kgs Animal Carcasses Cremator with Ce Certificate
| Price: |
US $ 3000-25000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FSL-50 |
| Weight: |
3.5ton |
| Control Mode: |
on-off |
| Power Suppy: |
380V 50Hz |
| Power Of Blower(Kw): |
1.5+4 |
| Process Per Time: |
50kg |
| Oil Used: |
25-30 Per Hour |
| Temperature Control: |
Automatic |
| Color: |
Black, Grey |
| Application: |
Hospital, Hotels, Industry |
Product Description
FSL Model Animal Carcasses CrematorSome introduction of the machine:Improper disposal of medical rubbish with a large number of harmful bacteria and viruses, may have a bad effect on the local environment. Our company specializes in dealing with various medical wastes . In the process of burning , harmful gas can be transported to the high- temperature furnace of tail gas treatment through the flue. Complex and winding structure was adopted in the incinerator, which makes the residence time of flue gas in furnace excess 3s. By 1100 high temperature burning, all the bacteria and viruses are completely killed. Later the flue gas was conveyed into flue to cyclone separator and spraying device to further eliminate residual fine particles in flue gas. Finally, the chimney will release pollution-free flue gas into atmosphere.
Fully automatic control system was adopted in the incinerator. After the user already set the temperature, the incinerator starts to work. It won't shut off automatically until the temperature reaching the intended target .At this moment, it can burning itself and save the fuel, just keep the ventilation.
Large pieces of garbage needs crushing , so you can add trash crushing machine.
Under higher demand of exhaust emission, bag dust collector can be chosen optionally (instead of spray tower of flue gas) to reduce the dust in tail gas .
When burning the harmless and low toxicity of life trash, you can save some cost by not equipping the cyclone dust collector and spray tower of flue gas . Flue links are used. Characteristics:1. Digital display temperature, full automatic control after set temperature;
2. Stable performance and reliable operation;
3. Full burning, it can burn out the medical waste including residues, plastics, organics and so on.
Smokeless and Odorless and no pollution to the environment.
4. Large capacity, can burn big waste directly like size 70cm.
5. Using 2nd combustion technology, fully burn harmful waste gas. No black smoke, ash less.
6. The internal use materials of high temperature and corrosion resistant, safe and reliable. Application:This equipment is suitable for the hospital medical waste, life rubbish, dead animals, the villages and towns of urban garbage disposal, and various aspects non-hazardous wastes treatment.The incinerator of FSL-50 technical parameters| Burning waste | solid waste |
| Fuel | Diesel |
| Processing capacity | 50kg/time |
| Burner size | 3600mm×1420mm×2100mm |
| Blower | Power 1.5+4 |
| Door size | 600mm X 600mm |
| Running voltage | 380V 50Hz |
| Weight | About 3500kg |
The medical waste incinerator of FSL-50 standard configuration | No | Name | Amount | Specifications | Notes |
| 1 | Incinerator | 1 | Q235 steel refractories | Main part |
| 2 | The 2 combustion chamber and the combustion chamber mixed | 1 | Q235 steel refractories | Installed in the main body |
| 3 | Electric box | 1 | | The main body
|
| 4 | Combustion burner | 1 | OM-2 | The main body
|
| 5 | Second burning burner | 1 | OM-3 | |
| 7 | Blower | 1 | 3.7KW/220V/380V | The main body
|
| 8 | Thermo couple | 2 | 1100ºC | The main body
|
| 9 | Operational procedures | 1 | | The main body
|
The medical waste incinerator air exhausting | Exhaust air | The first time dedication(kg/h) | The second time dedication(kg/h) |
| SO2 | 0.279 | 0.163 |
| NOx | 0.286 | 0.219 |
| Smoke and Dust | 0,293 | 0.172 |
| Smoke blackness | <1 | <1 |
FSL series Incinerator Parameters:| ART NO | PROCESS QTY PER TIME | OIL CONSUMPTION/HOUR | CONTROL | POWER SUPPLY | FAN POWER |
| FSL-20 | 20KG | 5-10 | Automatic | 220V/50HZ | 1.5+1.5 |
| FSL-30 | 30KG | 10-15 | Automatic | 220V/50HZ | 1.5+1.5 |
| FSL-50 | 50KG | 25-30 | Automatic | 380V/50HZ | 1.5+4 |
| FSL-100 | 100KG | 30-60 | Automatic | 380V/50HZ | 4+4 |
| FSL-200 | 200KG | 50-100 | Automatic | 380V/50HZ | 4+4+4 |

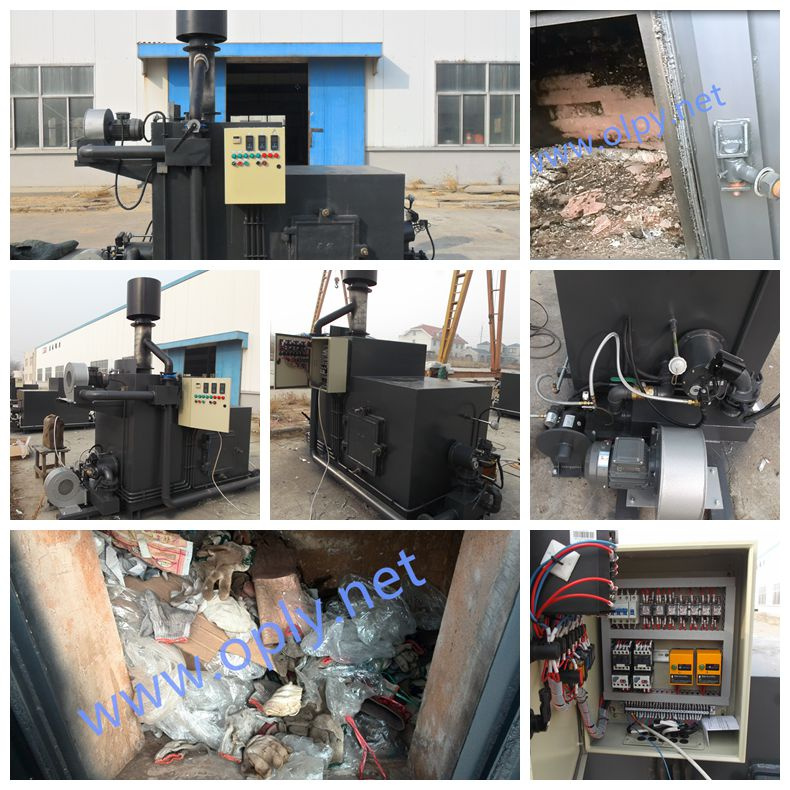

- More photos of incinerator:
