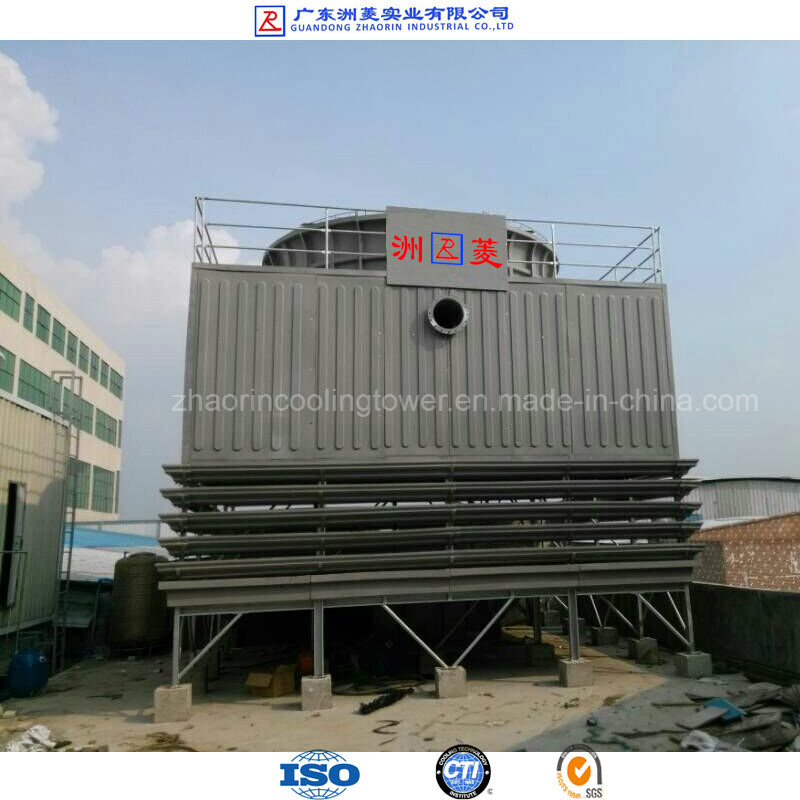

FRP Huge Size Industrial Cooling Tower

Name: FRP Huge Size Industrial Cooling Tower
Brand: thisfurniture.com
SKU: 839742415
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Cooling Method:	Counter Flow
Material:	FRP
Certification:	CTI
Condition:	New

Product Description

Zhaorin SCT counter flow cooling tower can be used in industrial area. They are designed by our experienced engineer based on different environment and climate around the word. They have below features:

Rugged FRP shell resists corrosion.
Passed the inspection"China Glass Fiber Reinforced Products Quality Supervision And Inspection Center".
Cooling Capacity From10 tons to 2000 tons.
FRP water basin with integral sump and mounting feet for easy cleaning and low cost installation.
FRP inlet louvers won't corrode and are easy to attache for basin cleaning and fill inspection.
Fixed sprinkling system, which use low pressure ABS nozzles, sprays water evenly and services long.
High-quality modified PVC filling designed for maximum air/water contact for efficient heat transfer.
Totally enclosed motor is designed for outdoor operation and withstand severe duty.

Model	Nomal flow	Overall Dimension	Motor	Fan Diam.	Water pressure	Weight(kg)		Piping Dimension(mm)
Model	m3/h	mm	kw	mm	Kpa	N.W	Run weight	Inlet	outlet	Over	Drain	Makeup
SCT-10L/SA	10	L1000W1400H2270	0.18	600	18	170	345	50	50	25	25	15
SCT-15L/SA	15	L1200W1400H2270	0.37	770	19	195	395	50	50	25	25	15
SCT-20L/SA	20	L1200W1400H2370	0.55	770	20	215	415	50	50	25	25	15
SCT-25L/SA	25	L1400W1600H2420	0.60	770	21	255	490	80	80	25	25	15
SCT-30L/SA	30	L1400W1600H2570	1.10	890	21	290	560	80	80	25	25	15
SCT-40L/SA	40	L1600W1600H2570	1.10	890	22	315	600	80	80	25	25	15
SCT-50L/SA	50	L1600W1600H3750	1.10	1200	35	700	1300	100	100	50	50	25
SCT-60L/SA	60	L1800W1800H3750	1.50	1350	38	750	1400	100	100	50	50	25
SCT-70L/SA	70	L1900W1900H3750	1.50	1350	39	800	1500	100	100	50	50	25
SCT-80L/SA	80	L2000W2000H4200	4.00	1450	40	950	1950	125	125	50	50	25
SCT-90L/SA	90	L2100W2100H4200	4.00	1450	42	1000	2050	125	125	50	50	25
SCT-100L/SA	100	L2250W2250H4200	4.00	1800	45	1050	2100	150	150	50	50	25
SCT-125L/SA	125	L2500W2500H4200	5.50	2120	45	1250	2320	150	150	50	50	25
SCT-150L/SA	150	L2750W2750H4200	5.50	2120	45	1420	2770	150	150	50	50	25
SCT-175L/SA	175	L3000W3000H4200	7.50	2400	46	1600	3250	200	200	80	80	40
SCT-200L/SA	200	L3250W3250H4200	7.50	2400	46	1750	3400	200	200	80	80	40
SCT-225L/SA	225	L3400W3400H4200	7.50	2600	46	1900	3690	200	200	80	80	40
SCT-250L/SA	250	L3500W3500H4400	11.00	2850	46	2150	4250	200	200	80	80	40
SCT-300L/SA	300	L4000W4000H4900	11.00	3200	49	2620	5100	250	250	80	80	40
SCT-350L/SA	350	L4250W4250H4900	11.00	3200	50	2950	5750	250	250	80	80	40
SCT-400L/SA	400	L5000W5000H5100	15.00	3400	52	3520	7050	250	250	80	80	40
SCT-450L/SA	450	L5100W5100H5100	15.00	3700	52	3820	7750	250	250	80	80	40
SCT-500L/SA	500	L5250W5250H5100	15.00	3700	54	4150	8100	300	300	100	100	50
SCT-600L/SA	600	L5500W5500H5300	18.50	4050	54	4680	8890	300	300	100	100	50
SCT-700L/SA	700	L6000W6000H5500	22.00	4250	56	5460	10650	350	350	100	100	50
SCT-800L/SA	800	L6500W6500H5500	22.00	4250	56	6520	12710	350	350	100	100	50
SCT-900L/SA	900	L7000W7000H5600	30.00	4550	58	7550	14720	400	400	100	100	80
SCT-1000L/SA	1000	L7500W7500H5600	30.00	4550	58	8200	15990	400	400	100	100	80
design condition		water inlet Temp.	37ºC	Remark: 1.Cooling tower can be made-to-measure according to customer's design conditions and special requirement. 2. "s" means one fan
		water outlet Temp.	32ºC
		Wet Bulb Temp.	28ºC

Guangdong Zhaorin Industrial Co., Ltd. Designs and manufactures cooling towers for Hotel, factories, power plants, steel factories, cement plants, mining applications and the food industry. Our operations complete cooling tower projects and aftermarket maintenance in 23provinces in China.

Our company occupied an area of about 12800 square meters. We are an OEM and ODM supplier but we have our own product brands in China.
