| Prod Model: |
CLW FOTON Fire Truck |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
HOWO 4X2 Fire Truck, Fire Fighting Truck |
| Fire Truck Tire: |
10.00-20 11.00-20 10.00r20 Fire Truck |
| Fire Truck Brand: |
Dongfeng, Faw, Sinotruk, Foton, Shacman |
| Fire Truck Horse Power: |
266HP 290HP 340HP 375HP 420HP |
| Fire Truck Type Of Upper Body: |
Water, Water Foam Tank, Dry Powder |
| Fire Truck Water Volume: |
5cbm, 6cbm, 7cbm, 5m3 7m3, 10m3 |
| Fire Truck Certification: |
ISO9000, CCC, Ts16949, EPA, EEC, RoHS, CE |
| Shipping: |
RO-RO |
| Warranty: |
1 Year for 3 Key Parts |
| Market: |
Global |
| Type: |
Tanker |
| Emission Standard: |
Euro 2 |
| Horsepower: |
251-350hp |
| Volume: |
3001-5000L |
| Transmission Type: |
Manual |
| Drive Wheel: |
4?รก2 |
| Certification: |
CE |
| Fuel: |
Diesel |
| Engine Type: |
4 Stroke |
| Condition: |
New |
| Payload: |
15t |
Product Description

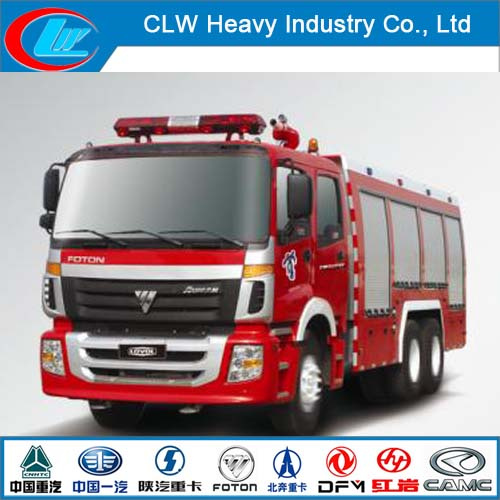

FOTON water foam fire fighting truck Fire Truck
Quick details of the Fire Fighting Truck:
1, equipped CB10/60 fire pump, equipped with PS50 type fire monitor
2, Low oil consumption with strong horse power 266HP
3. LHD or RHD are optional
4. Water capacity 5-8cbm
We can offer 4X2, 6X4, 8X4, dongfeng, Sinotruk, Foton, Shacman, Faw, CAMC, Isuzu, JMC, etc trucks.
More photos for your reference: Other questions
Technique Parameters
Description | FOTON 6x4 fire truck |
| Drive Model | 6x4 |
| Chassis | BJ1253VLPJE |
| Fact cubage | 11.655cbm(water tank:9cbm, foam tank 2.655cbm) |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9905x2480x3500 |
| Wheel base (mm) | 4300+1350 |
| Overhang (front/rear) (mm) | 1555/2600 |
| Wheel track (front/rear) (mm) | 2005/1865/1865 |
| Approach/Departure angle(°) | 18/16 |
| Weight in KGS | Curb Weight | 12040 |
| GVW. | 24490 |
| Max. driving speed(km/h) | 90 |
| Engine | Model | WP10.270 |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 270 |
| engine capacity(ml) | 199 |
| Emission standard | Euro III |
| Gearbox | 8 forwards & 1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 200 |
| Tire | 12.00R20 , 10pcs + 1 spare |
| Brakes | dual circuit compressed air brake |
| UPPER |
| Water tank Volume | 9cbm |
| Foam tank Volume | 2.655cbm |
| Loading Capacity | 11.655 |
| Protective material | Carbon steel |
| Key Equipment |
|
| Fire Pump | Mode | CB30.60 |
| Flow | 60L/s |
| Pressure | 1.0Mpa |
| Fire Monitor | Mode | PL48 |
| Pressure | 1.0-1.2MPa |
| Flow | 48L/S |
| Fire Distance(water/foam) | ≥65m/60m |
| Rotation Angle(°) | 360/-30~80 |
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing & Shipping
1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
