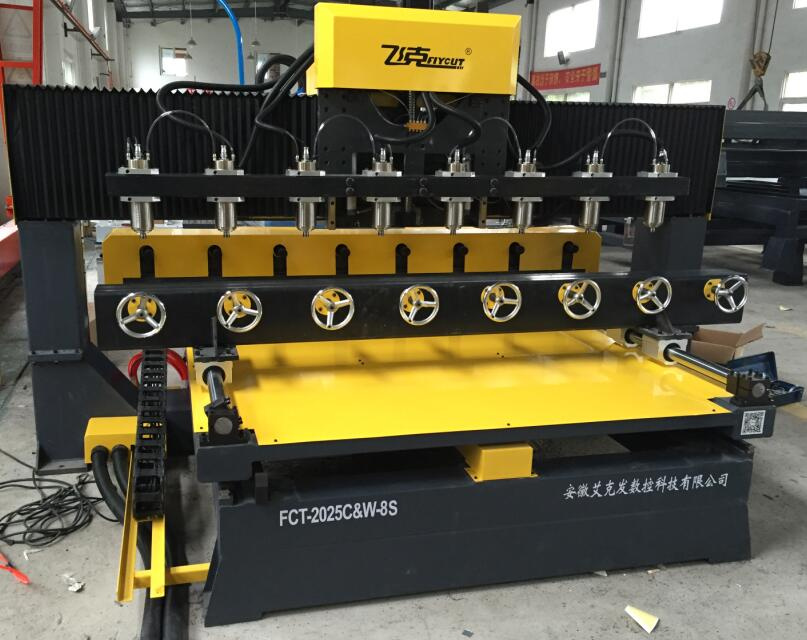

Flycut 8 Spidnle/Inverter/Reducer CNC Flat-Rotary Wood Engraving Machine

Flycut 8 Spidnle/Inverter/Reducer CNC Flat-Rotary Wood Engraving Machine
Price: US $ 17000-17500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FCT-2025C&W-8S
Markets: North America,Southeast Asia,Mid East
Controlling Mode: CNC
Spindle Qty: Eight Spindles
Spindle Power: Water Cooling 2.2kw*8
Rotary Length: 2000mm
Rotary Diameter: 250mm
Control System: 4 Axis Ncstudio
Motor Driver: France Servo Motor
Transmission: Taiwan Tbi Ball Screw

Product Description

Features:
1.It can engrave several materials at one time, which greatly increasing the working efficiency.
2.It can do not only rotary engraving but also flat engraving.
3.Movable working table with high engraving accuracy.

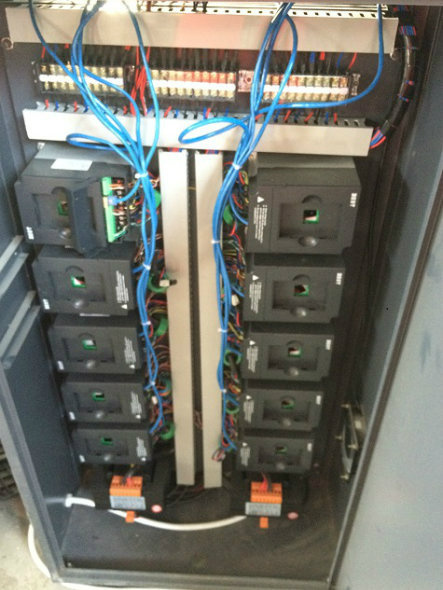

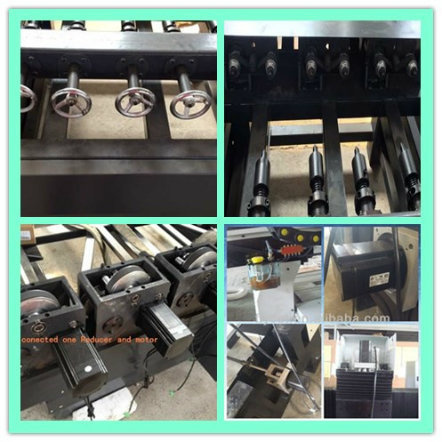

4.Inverter,reducer and spindle are one attached one which make the machine working more stablely and efficiently.
5.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
6.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCA.




Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.

Contact us by below:
alice(overseas depart. client manager)
 Tel:+86-13966703473
Http://www.flycut.cn

We are a specialized manufacturer for kinds of cnc machine and co2 laser machine in China.Looking forward to cooperating with cnc machine AGENTS all over the world.We will afford you products with good quality and competive price!

Model

FCT-2025C&W-8S

Rotary diameter

250mm

Rotary length

2000mm

control system

NC 4D control system

Spindle power

Water cooling 2200W×8

Spindle rotate

6000~24000RPM

Tool diameter

3.175,6,12.7mm

Machine structure

Industry square tube structure

Transmission

XY ball screw, Y high accuracy gear rack

XYZ rails

PMI square rails

driver

France Schneider servo

Mechanical accuracy

less than 0.03/300mm

Engraveing speed

10000mm/min

Data transmission

by pc connection directly or USB

Support format

G code or HPGL

Working voltage

AV380V 50Hz

Net weight

3500kg

About after-sale service:
1.Under normal usage,1 year for the whole machine,lifelong technical support.

Technical Support by 3 ways:
Choose 1.
We will supply the machine with training video and user's manual.When you meet some problems of installation, using or adjusting.We can give you technical guide by e-mail, fax,telephone,skype and so on.(Recommended)
Choose2:
You can come to our factory for training. We will offer professional guide,direct and effective face-to-face training. Here we have a full set of equipments and sorts of tools and testing facility.
Training Time: 3~7 days (Recommended)
Choose3:
Our engineer will do a door-to-door instruction training service at your side,you need to bear round-trip tickets and accommodation.
Training Time: 5~7 days (Not Recommended)
2.Free technical support for lifetime, including training at factory, door to door service, such as training/ installment/ adjustment / maintenance and so on.
3.Door to door service, you just need to bear round-trip tickets and accommodation.
4.Free installation,testing,training before shipping.


FAQS:


1.How about the payment?

T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is the delievery time?

For standard machines, it would be 7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 14~25 days.
3.How about shipment details?

On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?

Water-proof plastic film package with foam protection in each corner.

Anhui Aikefa (Flycut) CNC Technology Co., Ltd. is a high-tech enterprise which researches, develops, sells and services of numerical control and photoelectric products. The company has independent license for export and import, bears "Innovate technology and create values for users" as its managing idea to design kinds of practical numerical and photoelectric products that can be easily operated.

Teamwork Suppliers: France Schneider, American GSI, Germany Rofin, Italy HSD, Italy Colombo, Taiwan PMI, Taiwan TBI, Taiwan Syntec, Japan Panasonic, Japan Yaskawa, etc.

Service concept: Innovation, technology, services

Innovation: Scientific and technological innovation as the basis for enterprise development, not only in technical innovation in products, markets, management, structure and concepts to innovation.

Technology: Continuously improve staff skills, enhance their technical content; Innovative business model to meet market and customer requirements.

Service: Professional engineers to provide you with software and training machines, regular visits to track your usage. QQ, Skype, WeChat, telephone, 24-hour online open.
