| Prod Model: |
XF |
| Successful Experience: |
Strong Technical Power |
| Professional After Sale Service: |
Good Price |
| Package: |
Wooden Case |
| Delivery: |
90days |
| Certificate: |
ISO9001 ISO14001 |
| Type: |
Fluid Bed Drying Equipment |
| Condition: |
New |
| Fuel: |
as Per Customer |
Product Description

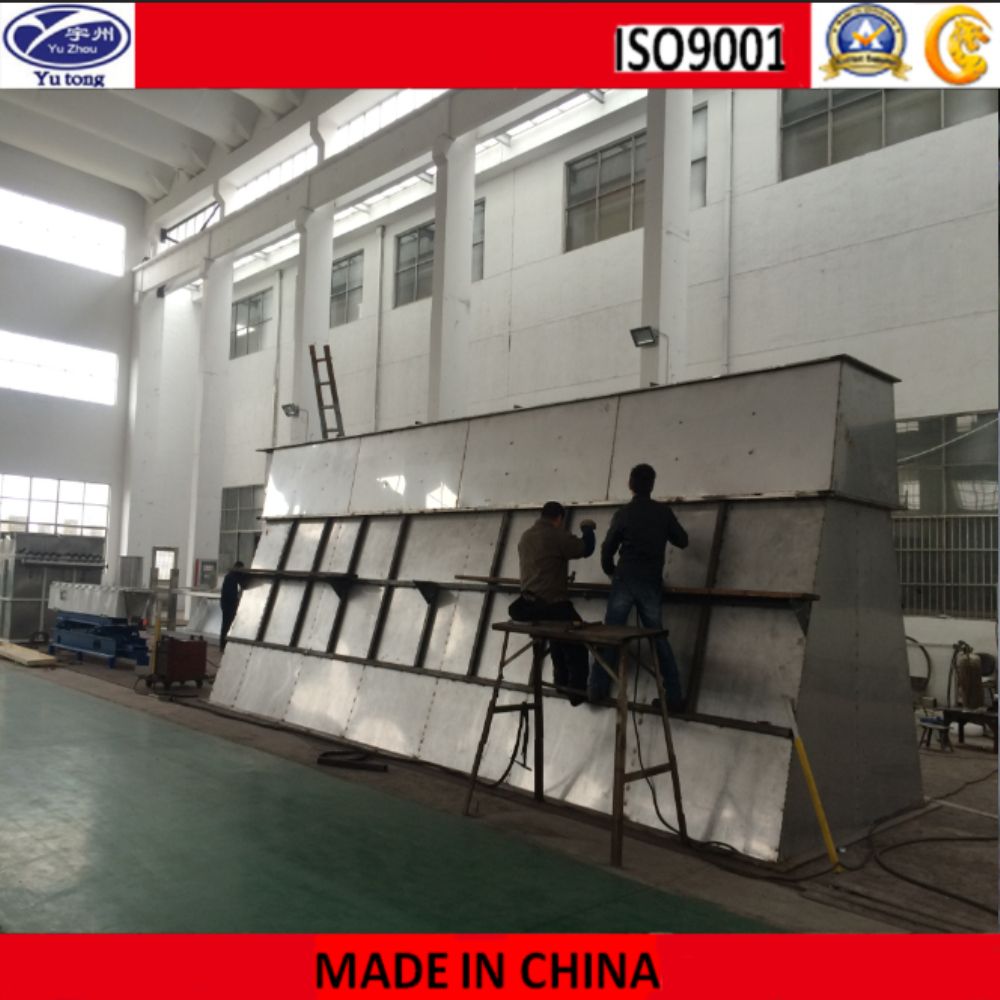

fluidizing bed suitable for drying pellet and granule material
Description
The XF Boiling (or Fluidizing) dryer is mostly used for drying different kind of Vanillin product. We already have lots of different customers of Vanillion in China, some are the top leading enterprise in the line.
Application
The boiling dryer is designed and manufactured for drying powdery or granular materials in the pharmaceutical, health care products, food, chemical and other industries. Vanillin drying production is an example of application of fluidized drying machine in chemical industry.
Vanillin, also called vanilline, is a broadly used edible spice. It is widely used in seasoning food such as cakes, cold drink, chocolate and sweets.
Features
1. This Boiling dryer operates under closed negative pressure without any dust explosion.
2. Using anti-static filter materials, our fluidized drying machine operates safely and stably.
Process Flows of Fluidizing Dryer in Vanillin Drying Production
Technical Specifications of Fluidizing Dryer
| odel | Bed area
(m2) | Drying capacity
(H2O kg/h) | Fan power
(kw) | Air pressure
(Pa) | Air flow
(m3/h) | Inlet air temperature
(C) | Outlet air temperature
(C) | Steam consumption
(kg/h) | Power consumption
(kw) |
| XF10A | 0.25 | 10-15 | 5.5 | 4900 | 2300 | 60-200 | 40-80 | 50 | 30 |
| XF10B | 4 | 3800 | 2300 |
| XF10A | 0.5 | 20-25 | 7.5 | 5000 | 3100 | 100 | 60 |
| XF10B | 5.5 | 3500 | 3100 |
| XF10A | 1.0 | 30-45 | 15 | 6000 | 4200 | 150 | 90 |
| XF10B | 11 | 4700 | 4200 |
| XF10A | 2.0 | 50-80 | 22 | 7400 | 6000 | 250 | 150 |
| XF10B | 18.5 | 5900 | 6000 |
1. The drying capacity can be affected by material property, solid content, inlet/outlet temperature.
Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.
At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.
Since our foundation, we at Yutong have been committed to providing high quality products to our customers. In order to ensure our quality requirements are maintained, we implement the ISO9001:2008 quality management system, purchase our raw materials from reliable suppliers, continue to introduce advanced equipment, and employ highly skilled staff. The quality of our equipment is repeatedly checked during each stage of production. In addition, all machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave our factory. Due to their consistent quality, Yutong drying machines, mixing machines and grinding machines have been awarded many honors, including Recommendation for High-quality Products by IQAC and Recommended Products for International Trade by the U.S. Asia Economic Trade Cooperation Committee.
At Yutong, many cost saving measures are also implemented to reduce our production costs. For example, we have established a local information network and carried out an efficient information management system (in terms of warehousing, production planning, and order tracking), thus reducing our operating costs. Additionally, we have long-standing relationships with local raw material suppliers, so we are able to acquire our high quality raw materials at reduced cost. Furthermore, our location in Changzhou City, Jiangsu Province provides us with easy access to convenient transportation, enabling us to transport our products economically. As a result, we can provide our quality spray dryer, double cone blender and rough grinding machine at affordable prices.
In addition to high quality and reasonably priced products, we at Yutong provide customers with considerate service. Our products come with a one-year warranty, during which we can provide staff training, on-site installation, and debugging services upon request. We also provide wearing parts at our cost prices. Hence, our drying machine, mixing machine, and sifting machine are very popular in USA, Canada, Italy,United Kingdom, German, Cyprus, Turkey, Korea, Japan, Vietnam, Thailand, Argentina, Chile, Brazil and so on.
We look forward to cooperating with partners from all the world to build win-win cooperation relationship in long term. Welcome for your visit and instigation!
Jiangsu yutong drying engineering Co., Ltd. Is a famous enterprises specializing in drying, mixing, granulating, griding and screen equipment. Our company has passed authentication of ISO9001 and ISO14001 international quality system. Moreover, our products have acquired "high quality recommendation certificate" issued by American international quality authentication committee and "East China excellent technical product certificate" issued by Jiangsu science and technology association. Our company emphasizes visualization and create brand, so we have been evaluated as both "AAA' enterprise by Jiangsu international qualification company and "regard contract and keep faith" enterprise by industry and commerce department.
Our company is located in a famous town of south of YANGTSE RIVER, Jiaoxi town, occupying over 18 unit of area with over 6000m2 building area. We have undeniable engineer and more than 100 sets equipments. Every year can produce about 600sets equipments and also can develop more than 30 types which are selling to all the country, also to USA, England, Germany, Cyprus, Turkey, Thailand, Vietnam, Mexcico etc.
Over the years, we do our best to develop the production of drying, shiver, granule equipment. We emphasize science and technology innovation, early or late we cooperate with many famous college. Now every year we can produce 3 new products, and our products have been accepted by more and more customers. Our company has developed so quickly that we have accumulated large amount of fund and technical knowledge. Our company stocks many stocks many kinds of trial machine for customer taking materials to test and examine.
When developing outer market, our company emphasizes inner management. We have established local area network, developed fund flow, material flow, information flow software serving for our company. Furthermore, we figure employees' enterprise spirit of priding themselves on being a "Yutong" people. Our company really insist on such a tenet that science and technology is the first productivity, using honesty to get faith, using quality to get success. We in sprint of keeping good credit standing, we hold a firm belief customer is god, "You don't have and we have, you have and we will do our best to satisfy our customer, and Yutong and customer can get mutual benefit.
