| Prod Model: |
XF |
| Successful Experience: |
Strong Technical Power |
| Professional After Sale Service: |
Good Price |
| Package: |
Wooden Case |
| Delivery: |
90days |
| Certificate: |
ISO9001 ISO14001 |
| Type: |
Fluid Bed Drying Equipment |
| Condition: |
New |
| Fuel: |
as Per Customer |
Product Description

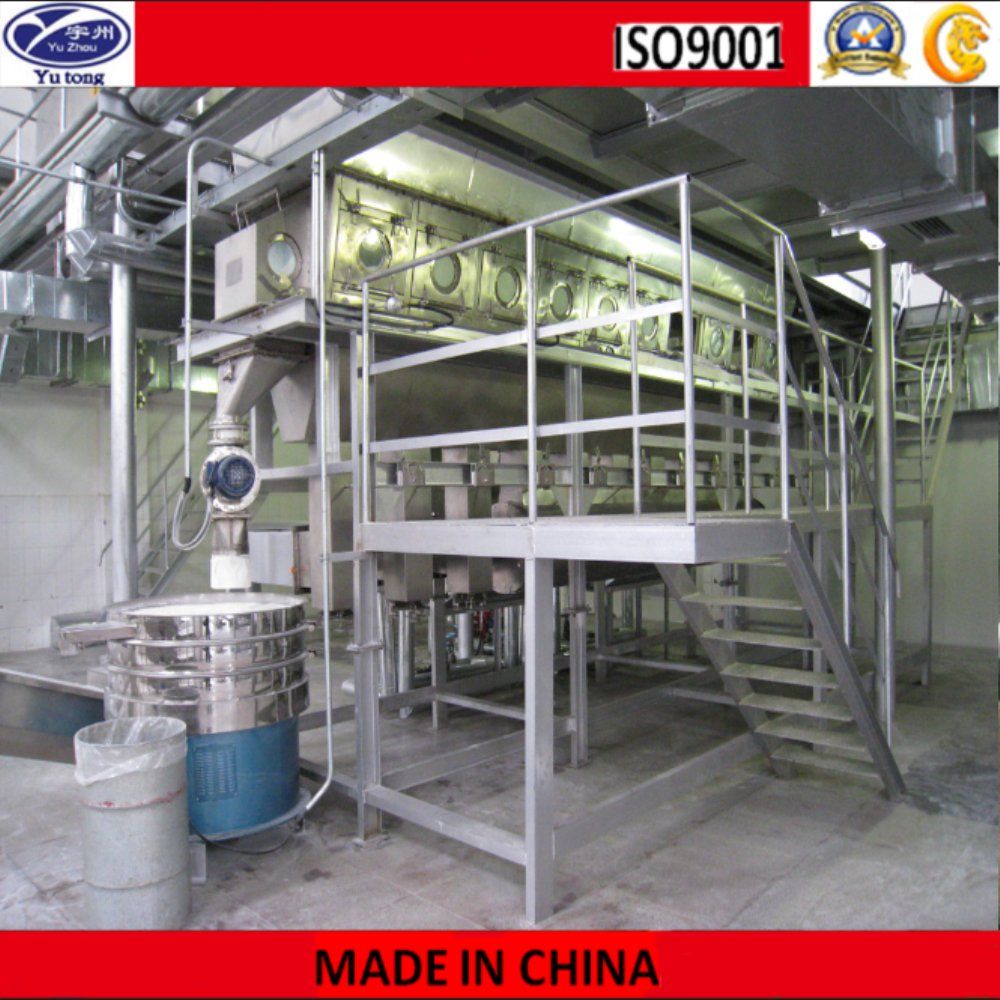

drying machine for plastic resin citric acid
Description
The XF Boiling (or Fluidizing) dryer is mostly used for drying different kind of Vanillin product. We already have lots of different customers of Vanillion in China, some are the top leading enterprise in the line.
Application
The boiling dryer is designed and manufactured for drying powdery or granular materials in the pharmaceutical, health care products, food, chemical and other industries. Vanillin drying production is an example of application of fluidized drying machine in chemical industry.
Vanillin, also called vanilline, is a broadly used edible spice. It is widely used in seasoning food such as cakes, cold drink, chocolate and sweets.
Features
1. This Boiling dryer operates under closed negative pressure without any dust explosion.
2. Using anti-static filter materials, our fluidized drying machine operates safely and stably.
Process Flows of Fluidizing Dryer in Vanillin Drying Production
Technical Specifications of Fluidizing Dryer
| odel | Bed area
(m2) | Drying capacity
(H2O kg/h) | Fan power
(kw) | Air pressure
(Pa) | Air flow
(m3/h) | Inlet air temperature
(C) | Outlet air temperature
(C) | Steam consumption
(kg/h) | Power consumption
(kw) |
| XF10A | 0.25 | 10-15 | 5.5 | 4900 | 2300 | 60-200 | 40-80 | 50 | 30 |
| XF10B | 4 | 3800 | 2300 |
| XF10A | 0.5 | 20-25 | 7.5 | 5000 | 3100 | 100 | 60 |
| XF10B | 5.5 | 3500 | 3100 |
| XF10A | 1.0 | 30-45 | 15 | 6000 | 4200 | 150 | 90 |
| XF10B | 11 | 4700 | 4200 |
| XF10A | 2.0 | 50-80 | 22 | 7400 | 6000 | 250 | 150 |
| XF10B | 18.5 | 5900 | 6000 |
1. The drying capacity can be affected by material property, solid content, inlet/outlet temperature.
