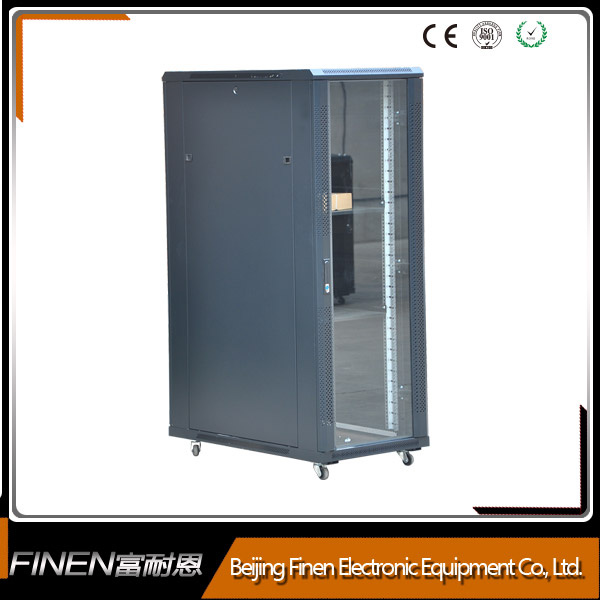

Floor Standing 27u 42u 19'' Network Cabinet

Prod Model:	AS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Loading Capacity:	800kg
Width:	600mm,800mm
Depth:	600mm,800mm,1000mm
Material:	SPCC Cold Rolled Steel
Color:	Black,Gray,White
Feature:	Floor Standing
Surface Finish:	Powder Coating
Optional Service:	OEM
Certificate:	ISO
Type:	Network Cabinet
Usage:	Network Integration System
Installation:	Vertical
Fan Number:	Two
Certification:	RoHS
Condition:	New
Capacity:	18u,22u,27u,32u,37u,42u

Product Description

FINEN AS SERIES -Floor standing 27u 42u 19'' Network Cabinet

1). 20 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service

Product information:

1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 18u, 22u, 27u, 32u, 37u, 42u, 47u
3). Loading Capacity: 800kgs(1763.7lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails: 1.5mm;
Other enclosures: 1.2mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches
8). Doors: Toughened glass front and vented mesh rear doors with handle locks
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating

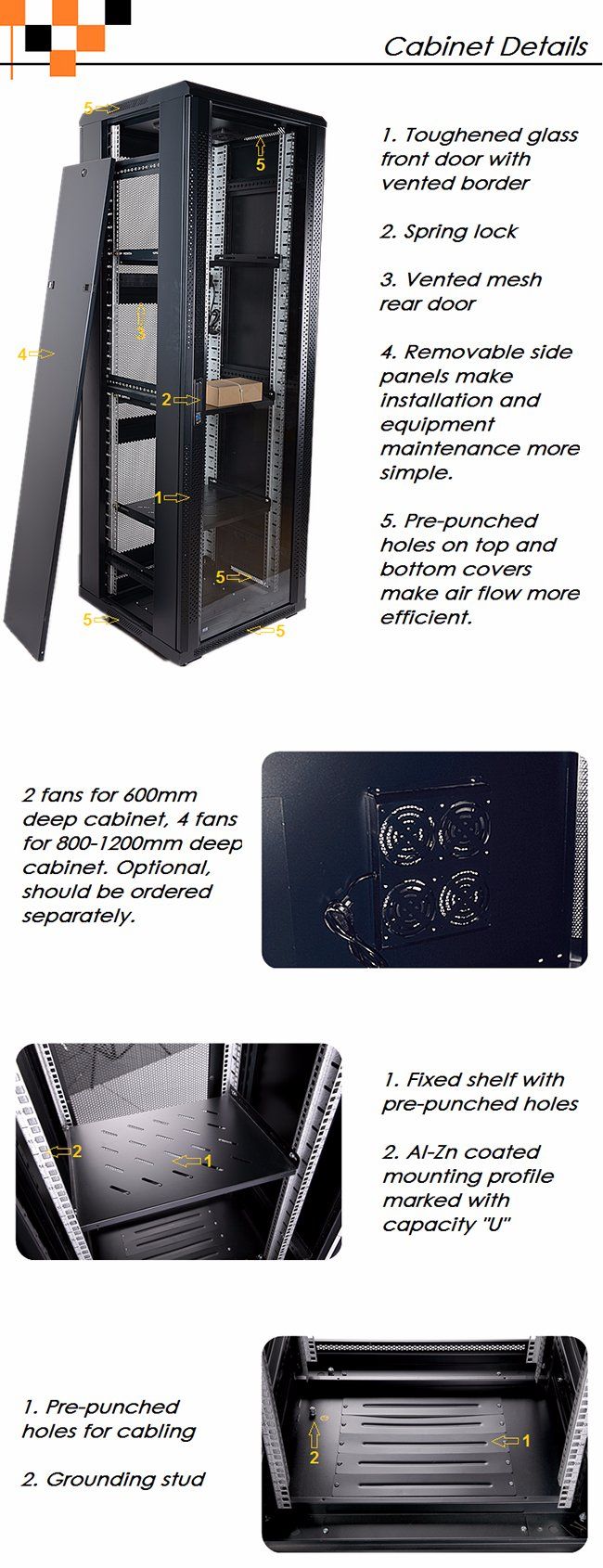

Features:

1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale

Applications:

Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment

Recommend Products

FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-A3 Series Vented mesh front and rear doors with hanle lock
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
FINEN-WL Series 4u, 6u, 9u, 12u wall mountable rack cabinets
We are always developing the new design according to customer demands.

Who are we?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.


All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors

Package contents of FINEN AS Series
No.	Component name	Quantity	Unit	Material	Remark
1	Top Cover	1	pc	SPCC cold rolled steel T1.2
2	Fan Unit	1	pcs	SPCC cold rolled steel T1.2	With 2/4 fans
3	Mounting Profile	4	pcs	Zinc plated  T2.0
4	Mounting rails	6	pcs	SPCC  T1.5	4pcs for lower 32U
5	Frame	2	pcs	SPCC  T1.2
6	Lock	2	pcs		handle lock
7	Front Door	1	pc	SPCC  T1.2	Toughened glass
8	Rear Door	1	pc	SPCC  T1.2	vented mesh
9	Side Panel	2	pcs	SPCC  T1.2	Removable
10	Bottom Panel	1	pcs	SPCC  T1.2
11	Screw	20	pcs	---	40pcs for over 32U
12	Square Nut	20	pcs	---	40pcs for over 32U
13	Castor	4	pcs	Steel
14	Adjustable leveling feet	4	pcs	Steel
15	Other components are available according to request
