| Prod Model: |
A3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Capacity: |
800kg |
| Rack Unit: |
18u,22u,27u,32u,37u,42u,47u |
| Width: |
600mm,800mm |
| Depth: |
600mm,800mm,1000mm |
| Material: |
SPCC Cold Rolled Steel |
| Color: |
Black,Gray,White |
| Optional Service: |
OEM |
| Certificate: |
ISO |
| Side Panel: |
Removable with Handy Latches |
| Type: |
Network Cabinet |
| Fan Number: |
Two |
| Usage: |
Network Integration System |
| Certification: |
RoHS |
| Installation: |
Vertical |
| Condition: |
New |
| Capacity: |
18u,22u,27u,32u,37u,42u |

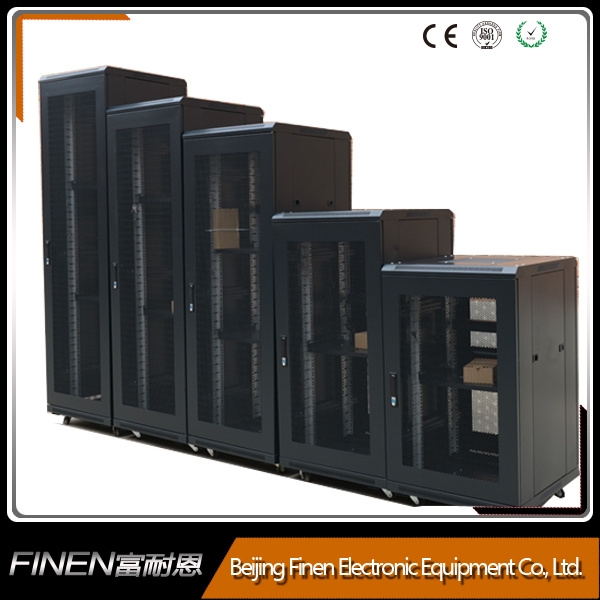

Product Description
1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service
Product information:
1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 18u, 22u, 27u, 32u, 37u, 42u, 47u
3). Loading Capacity: 800kgs(1763.7lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails: 1.5mm;
Other enclosures: 1.2mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches
8). Doors: Vented mesh front and rear doors with handle locks
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating
Features:
1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale
Applications:
Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment
Recommend Products
FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-AS Series Toughend glass front door with air holes on door stripe, vented mesh rear door, handle locks
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
FINEN-WL Series 4u, 6u, 9u, 12u wall mountable rack cabinets
We are always developing the new design according to customer demands.
Who are we?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.
| Package contents of FINEN A3 Series |
| No. | Component name | Quantity | Unit | Material | Remark |
| 1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.2 |
|
| 2 | Fan Unit | 1 | pcs | SPCC cold rolled steel T1.2 | With 2/4 fans |
| 3 | Mounting Profile | 4 | pcs | Zinc plated T2.0 |
|
| 4 | Mounting rails | 6 | pcs | SPCC T1.5 | 4pcs for lower 32U |
| 5 | Frame | 2 | pcs | SPCC T1.2 |
|
| 6 | Lock | 2 | pcs |
| handle lock |
| 7 | Front Door | 1 | pc | SPCC T1.2 | vented mesh |
| 8 | Rear Door | 1 | pc | SPCC T1.2 | vented mesh |
| 9 | Side Panel | 2 | pcs | SPCC T1.2 | Removable |
| 10 | Bottom Panel | 1 | pcs | SPCC T1.2 |
|
| 11 | Screw | 20 | pcs | --- | 40pcs for over 32U |
| 12 | Square Nut | 20 | pcs | --- | 40pcs for over 32U |
| 13 | Castor | 4 | pcs | Steel |
|
| 14 | Adjustable leveling feet | 4 | pcs | Steel |
|
| 15 | Other components are available according to request |
| Specification of FINEN A3 Series |
| Model No. | Capacity(U) | Width(mm) | Depth(mm) |
| A36647 | 47U | 600 | 600 |
| A36847 | 600 | 800 |
| A36947 | 600 | 900 |
| A36047 | 600 | 100 |
| A36147 | 600 | 1100 |
| A36247 | 600 | 1200 |
| A36642 | 42U | 600 | 600 |
| A36842 | 600 | 800 |
| A36942 | 600 | 900 |
| A36042 | 600 | 1000 |
| A36142 | 600 | 1100 |
| A36242 | 600 | 1200 |
| A36637 | 37U | 600 | 600 |
| A36837 | 600 | 800 |
| A36937 | 600 | 900 |
| A36037 | 600 | 1000 |
| A36137 | 600 | 1100 |
| A36237 | 600 | 1200 |
| A36632 | 32U | 600 | 600 |
| A36832 | 600 | 800 |
| A36932 | 600 | 900 |
| A36032 | 600 | 1000 |
| A36132 | 600 | 1100 |
| A36232 | 600 | 1200 |
| A36627 | 27U | 600 | 600 |
| A36827 | 600 | 800 |
| A36927 | 600 | 900 |
| A36027 | 600 | 1000 |
| A36622 | 22U | 600 | 600 |
| A36822 | 600 | 800 |
| A36922 | 600 | 900 |
| A36022 | 600 | 1000 |
| A36618 | 18U | 600 | 600 |
| A36818 | 600 | 800 |
| A36918 | 600 | 900 |
| A36018 | 600 | 1000 |
