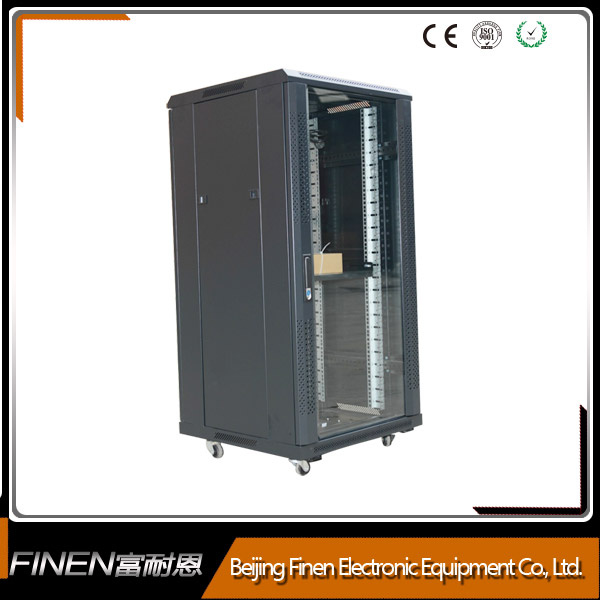

Floor Standing 18u Server Rack Cabinet

Prod Model:	AS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Capacity:	18u,22u,27u,32u,37u,42u
Loading Capacity:	800kgs
Width:	600mm,800mm
Depth:	600mm,800mm,1000mm
Color:	Black,Gray,White
Feature:	Floor Standing Rack Cabinet
Surface Finish:	Powder Coating
Front Door:	Toughened Glass
Service:	OEM
Type:	Network Cabinet
Fan Number:	Two
Usage:	Network Integration System
Certification:	RoHS
Installation:	Vertical
Condition:	New

Product Description

Universal Floor Standing 18U server rack cabinet

1). 20 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service

Product information:

1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 18u, 22u, 27u, 32u, 37u, 42u, 47u
3). Loading Capacity: 800kgs(1763.7lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails: 1.5mm;
Other enclosures: 1.2mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches
8). Doors: Toughened glass front and vented mesh rear doors with handle locks
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating

Features:

1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale

Applications:

Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment

Recommend Products

FINEN-A2 Series Toughened glass front door and solid rear door with round locks
FINEN-A3 Series Vented mesh front and rear doors with hanle lock
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
FINEN-WL Series 4u, 6u, 9u, 12u wall mountable rack cabinets
We are always developing the new design according to customer demands.

Who are we?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.

Package contents of FINEN AS Series
No.	Component name	Quantity	Unit	Material	Remark
1	Top Cover	1	pc	SPCC cold rolled steel T1.2
2	Fan Unit	1	pcs	SPCC cold rolled steel T1.2	With 2/4 fans
3	Mounting Profile	4	pcs	Zinc plated  T2.0
4	Mounting rails	6	pcs	SPCC  T1.5	4pcs for lower 32U
5	Frame	2	pcs	SPCC  T1.2
6	Lock	2	pcs		handle lock
7	Front Door	1	pc	SPCC  T1.2	Toughened glass
8	Rear Door	1	pc	SPCC  T1.2	vented mesh
9	Side Panel	2	pcs	SPCC  T1.2	Removable
10	Bottom Panel	1	pcs	SPCC  T1.2
11	Screw	20	pcs	---	40pcs for over 32U
12	Square Nut	20	pcs	---	40pcs for over 32U
13	Castor	4	pcs	Steel
14	Adjustable leveling feet	4	pcs	Steel
15	Other components are available according to request
Specification of FINEN AS Series  Model No. Capacity(U) Width(mm) Depth(mm) AS6647 47U 600 600 AS6847 600 800 AS6947 600 900 AS6047 600 100 AS6147 600 1100 AS6247 600 1200 AS6642 42U 600 600 AS6842 600 800 AS6942 600 900 AS6042 600 1000 AS6142 600 1100 AS6242 600 1200 AS6637 37U 600 600 AS6837 600 800 AS6937 600 900 AS6037 600 1000 AS6137 600 1100 AS6237 600 1200 AS6632 32U 600 600 AS6832 600 800 AS6932 600 900 AS6032 600 1000 AS6132 600 1100 AS6232 600 1200 AS6627 27U 600 600 AS6827 600 800 AS6927 600 900 AS6027 600 1000 AS6622 22U 600 600 AS6822 600 800 AS6922 600 900 AS6022 600 1000 AS6618 18U 600 600 AS6818 600 800 AS6918 600 900 AS6018 600 1000
