Finen Stainless Steel Enclosed 19'' Rack Cabinet

Prod Model:	A2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Capacity:	18u,22u,27u,32u,37u,42u
Loading Capacity:	800kg
Depth:	600mm,800mm,1000mm
Width:	600mm,800mm
Material:	SPCC Cold Rolled Steel
Color:	Black,Gray,White
Feature:	Floor Standing Rack Cabinet
Surface Finish:	Powder Coating
Optional Service:	OEM
Certificate:	ISO
Type:	Network Cabinet
Fan Number:	Two
Usage:	Network Integration System
Certification:	RoHS
Installation:	Vertical
Condition:	New

Product Description

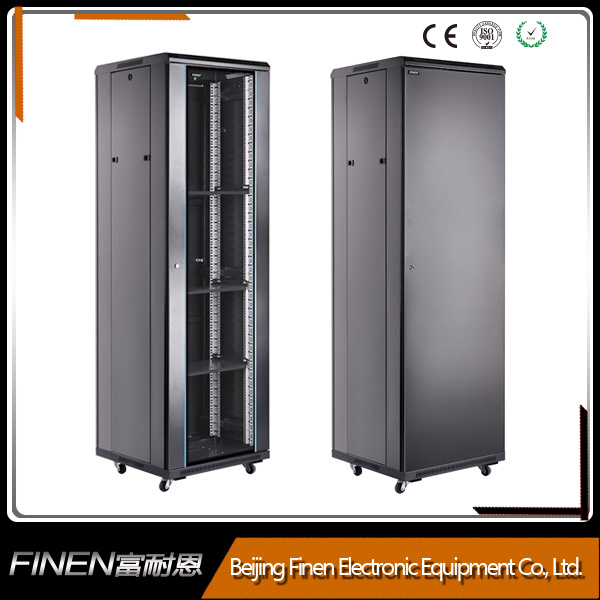

FINEN Stainless steel enclosed 19'' rack cabinet

1). 20 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-14 days)
4). OEM service

Product information:
1). Industry Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
2). Capacity/Rack Units: 18u, 22u, 27u, 32u, 37u, 42u, 47u
3). Loading Capacity: 800kgs(1763.7lbs)
4). Materials: SPCC high-quality cold rolled steel
5). Thickness:
Mounting profiles: 2.0mm;
Mounting rails: 1.5mm;
Other enclosures: 1.2mm
6). Cooling Fan: Two/Four optional 120mm AC cooling fans
7). Side panels: Removable with Easy Handy Latches
8). Doors: Toughed glass front door and solid rear door with round locks
9). Colors: Black-RAL9004; White-RAL7035; Grey-RAL7032
10). Surface Finish: Degreasing, Pickling, Phosphating, powder coating

Features:
1). Zinc Plated mounting profile
2). Meet IP20 Protection Grade
3). Secure, firm and reliable
4). Excellent Air Ventilation Design with AC 120mm Cooling Fans
5). Three Ways, Top, Bottom, and Rear Cabling Tunnels
6). Easy to install and maintain
6). Certification: ISO 9001: 2000
7). OEM service availale

Applications:
Rack cabinets for Information Technology and telecommunication appliances use:
Small, Medium and Large Servers
DVR, Security Equipment and Routers
Patch Panels and Switches
Telephone Systems and PABX
Network and Communications Equipment
UPS Equipment
Other Rack Mount Equipment

Recommend Products
FINEN-A3 Series vented mesh front and rear doors with hanle lock
FINEN-AS Series Toughend glass front door with air holes on door stripe, vented mesh rear door, handle locks
FINEN-K3 Series Hexagonal mesh front and rear doors with moon locks
FINEN-WL Series 4u, 6u, 9u, 12u wall mountable rack cabinets
We are always developing the new design according to customer demands.

Who are we?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 800 workers
3.35000 square meters workshop
4. Customizing services, OEM services, etc.

Package contents of FINEN A2 Series
No.	Component name		Quantity	Unit	Material		Remark
1	Top Cover		1	pc	SPCC cold rolled steel T1.2
2	Fan Unit		1	pcs	SPCC cold rolled steel T1.2		With 2/4 fans
3	Mounting Profile		4	pcs	Zinc plated  T2.0
4	Mounting rails		6	pcs	SPCC  T1.5		4pcs for lower 32U
5	Frame		2	pcs	SPCC  T1.2
6	Lock		2	pcs			Round lock
7	Front Door		1	pc	SPCC  T1.2		Toughened glass
8	Rear Door		1	pc	SPCC  T1.2		solid
9	Side Panel		2	pcs	SPCC  T1.2		Removable
10	Bottom Panel		1	pcs	SPCC  T1.2
11	Screw		20	pcs	---		40pcs for over 32U
12	Square Nut		20	pcs	---		40pcs for over 32U
13	Castor		4	pcs	Steel
14	Adjustable leveling feet		4	pcs	Steel
15	Other components are available according to request
Specification of FINEN A2 Series
Model No.		Capacity(U)				Width(mm)		Depth(mm)
A26647		47U				600		600
A26847						600		800
A26947						600		900
A26047						600		100
A26147						600		1100
A26247						600		1200
A26642		42U				600		600
A26842						600		800
A26942						600		900
A26042						600		1000
A26142						600		1100
A26242						600		1200
A26637		37U				600		600
A26837						600		800
A26937						600		900
A26037						600		1000
A26137						600		1100
A26237						600		1200
A26632		32U				600		600
A26832						600		800
A26932						600		900
A26032						600		1000
A26132						600		1100
A26232						600		1200
A26627		27U				600		600
A26827						600		800
A26927						600		900
A26027						600		1000
A26622		22U				600		600
A26822						600		800
A26922						600		900
A26022						600		1000
A26618		18U				600		600
A26818						600		800
A26918						600		900
A26018						600		1000
