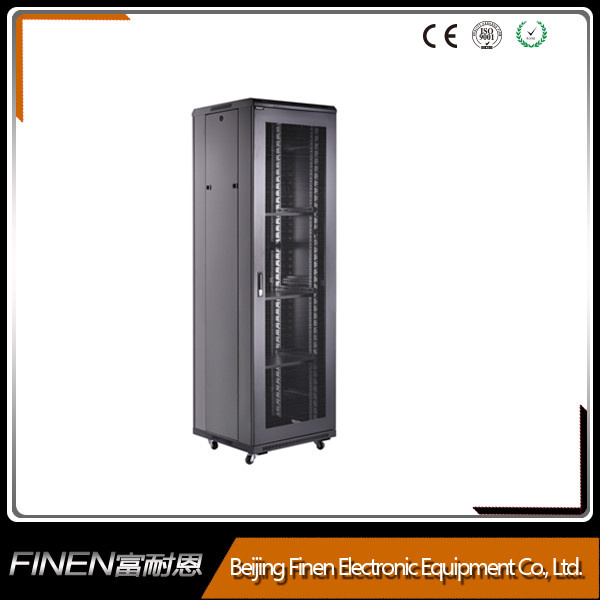

Finen A3 Series Vented Front Door Floor Standing Cabinet 800mm Depth

Name: Finen A3 Series Vented Front Door Floor Standing Cabinet 800mm Depth
Brand: thisfurniture.com
SKU: 690223522
Availability: InStock
Rating: 4.5 (94 reviews)

Price:	US $ 80-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	15/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FINEN A3 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	A3 Network Cabinet
Loading Capacity:	800kg
Optional Color:	Black, Gray, White
Width:	600, 800mm
Depth:	600mm 800mm 900mm 1000mm 1100mm 1200mm
Material:	SPCC Cold Rolled Steel
Front Door:	Vented Front Door
Rear Door:	Plain Metal Door
Accesspry:	Available
Surface Finish:	Degreasing/Pickling/Phosphating/Power Coating
Type:	Network Cabinet
Usage:	Wireless Monitoring System
Installation:	Vertical
Certification:	IEC
Condition:	New
Fan Number:	Optional
Capacity:	18u-47u

Product Description

A3 floor standing 42u network cabinet data rack cabinet factory

Production Information

Basic Information
1) Standard	Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
2) Material	SPCC high-quality cold rolled steel
3) Thickness	Mounting profile 2.0mm Others 1.2mm
4) Surface Finish	Degreasing, Pickling, Phosphating, Powder coating
5) Protection Degree	IP20
6) Loading Capacity	800kgs(=1763lbs)
7) Color	Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032)
Features
2 Sets of adjustable mounting rails(Zinc Plated) Cage nut style mounting rails Removable/lockable side panels Top and Bottom removable cable slots Glass front door/Vented Rear door Specifications Width - 23.62 Inches (600mm), 31.50 Inches (800mm) Depth - 23.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm) Rail Width - 19 inch EIA Compliant Advantage 1.Secure,firm and reliable 2. Easy to maintain equipment 3. Two Packing Ways: 1).Assembly packing to save labour cost, ready to resell or use 2).Disassembly packing to save space and transport cost, easy to assemble 4.Certification: ISO 9001:2000 5. OEM/ODM service available Recommended options Fan assembly kit PDU Racks Screws,Cage nuts Plastic/Metal Cable management Shelves

Cabinet Structure

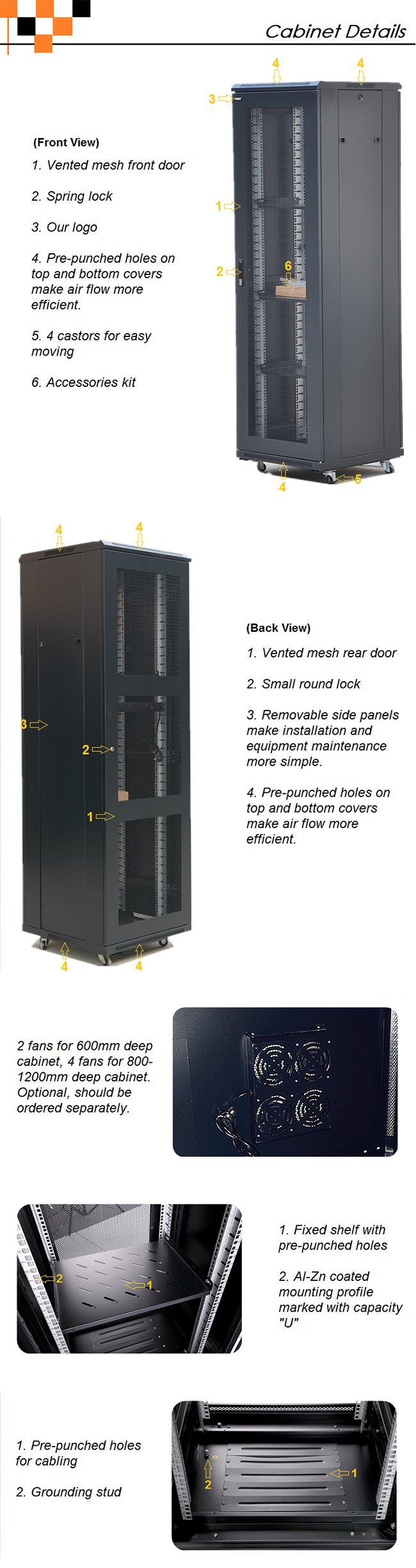

Cabinet details

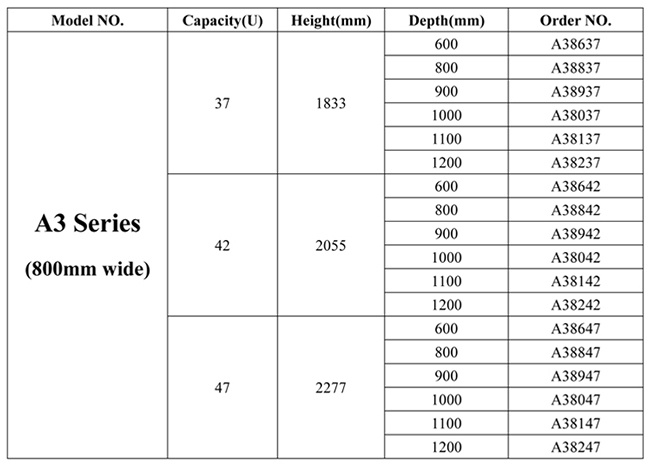

Specifications

Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.

We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.

Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.

Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.

Based on the advantaged experience and methods of management in developed countries, we have own better methods of management.

Depending on updated scientific management, advanced process design and strict examination measurements, we manufacture excelsior products and welcome all of you for cooperation.
