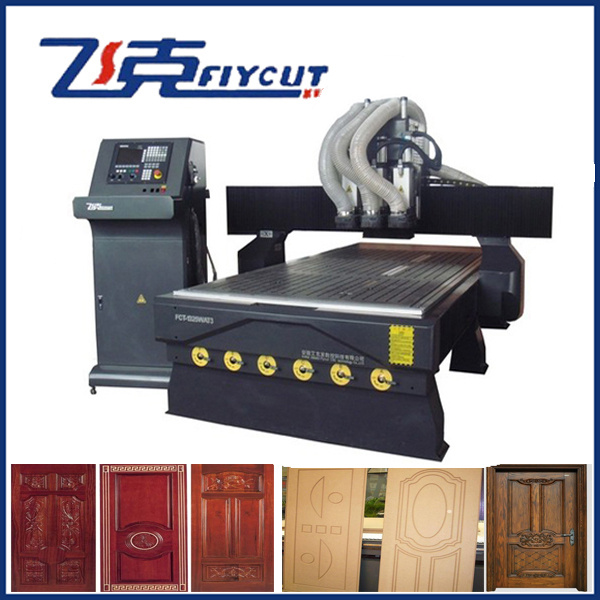

Fast Tool Change1300*2500 Mm Working Area CNC Router, CNC Engraving Machine

Prod Model:	FCT-1325W-AT3
Markets:	North America,South America,Southeast Asia
Table Size:	1600X2640mm
Working Size:	1300X2500X200mm
Spindle Type:	Air Cooling
Spindle Power:	37kw*2, 5.5kw*1
Spindle Rotate:	6000~24000rpm
Motor:	Leadshine Hybrid Servo Motor
Control System:	Ncstudio
Transmission:	Xy with Gear Rack, Z with Tbi Ball Screw
Guide Rail:	Taiwan PMI Square Rails
Vacum Pump:	7.5kw Air Pump
Spindle Layout:	Horizontal
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO
Spindle Number:	3 Spindles

Product Description


Features:

1.This machine use 3 different tools for carving different design on wood,no need to change tools manually.It is easy to operate and make programme.
2.Designed for complex machining, suitable for processing small format workpices and mass production of wooden door,windows,cabinets.
3.No.1 spindle with 5.5kw air cooling,No.2 and No.3 with 3.7 kw air cooling,big cutting power.
4.The working tabe surface adopts vacuum system to fix processing piece when engve or cut.
5.Independent Z axis structuer,3 air cylinders,high accuracy ball screw.
6.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifaspan of square parts.
7.High quality driver motors, spindle motors, cables, inverters, etc.
8.Profecissional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Application:
Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.

Special configuration:
Servo motor and driver, large models, imported spindles, etc.

Technical parameters:

Model	FCT-1325W-AT3
Table size	1600×2640mm
Working size	1300×2500×200mm
Spindle power	NO.1 spindlle 5.5kw air cooling,NO.2+3 3.7kw air cooling
Z axis structure	Independent Z axis,3 air cylinders,high accuracy ball screw
Spindle rotate	6000-24000rpm
Motor driver	Stepper motor(Chinese servo motor or imported servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	Accuracy gear rack
XYZ rails	Imported square rails
Mechanical accuracy	<0.03/300mm
Data transmission	PC connection directly
Support format	G code or HPGL
Engraving speed	12000mm/min
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	2000kg

FAQS:
1.How about the payment?
T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.
2.How long is the delievery time?
For standard machines, it would be 14 days; For non-standard machines and customized machines according to clients specific requirements, it would be 25 days.
3.How about shipment details?
On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.
4.What about the packing?
Water-proof plastic film package with foam protection in each corner. I
