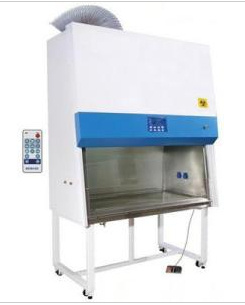

| Prod Model: |
BSC-1800IIB2-X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tested Openingtsafety≤200 Mm: |
Max Openingt400mm |
| Taptwater Tap:1 ;Gas Tap: 1 (Optional): |
Filte:Pre-Filter:Washable, Two HEPA Main Filter:9 |
| Front Windowtmotorized,Two Layer Laminat: |
Noiset≤62db |
| Socketttwo,Waterproof,Total Consumption: |
Displaytlcd Display |
| Control Systemtmicroprocessor: |
Airflow System:T0 Air Recirculation |
Product Description
Main Advantages
1,Remote Control
All functions can be realized through it, the first choice for preventing cross contamination.Much Easy and Safe to control and operation the cabinet.
2,Foot Switch
You can use foot switch to adjust the height of the front window during the test,which is much convenient.It's our unique design.
3,Four Sides Air Course Design
The four side air course designing makes the work area all around surrounded by negative pressure.
4,Timer Reserve Function
Mush useful and safety function,such as the starting timer,the UV sterilization timer,etc.
5,Various Display Screen
Using VFD,LED,LCD digital displaying for various models according to different customers' needed.
6,Filter & UV Life Attention
It can be showed in our VFD display.
7,Safety Power Lock and Cabinet Lock
To make sure nobody else can use the cabinet without allow.
8,Motor Controlled Laminated Glass
Much safety once broken and better effect to prevent the UV light.
9,Audio and Visual Alarm Function (Filter replacement,window over height,air flow abnormal etc.)
10,Interlock Function:UV Lamp and front window,UV lamp and blower,fluorescent lamp,Blower and front window.
According to the performance criteria
1 US Standard ANSI/NSF49:2002
2 European Standard EN12469:2000
3 Chinese Standard YY0569-2005
Parameters for Class II A2 Biological Safety Cabinet
Main Parameters of Class II B2-X
| Model | BSC-1100II B2-X | BSC-1300II B2-X | BSC-1500II B2-X | BSC-1800IIB2-X |
Internal size(mm)/
W*D*H | 940×600×660 | 1100×600×660 | 1350×600×620 | 1600*670*630 |
External size(mm)
W*D*H | 1100×750×2250 | 1300×850×2200 | 1500×760×2250 | 1800*840*2275 |
| Tested Opening | Safety≤200 mm |
| Max Opening | 400mm |
| Air Flow Velocity | Inflow:0.53m/s ± 0.025m/s;Down Flow Velocity:0.33 m/s ± 0.025m/s |
| Filter | Pre-filter:Washable,Two HEPA main filter:99.999% efficient(0.3 microns) |
| Front Window | Motorized,two layer laminated toughened glass |
| Noise | ≤62dB |
| UV lamp | 20W×1 | 20W×1 | 30W×1 | 40W×1 |
| Fluorescent Lamp | 21W×1 | 21W×1 | 28W×1 | 35W×2 |
| Lighting | >=1000Lux | >=1000Lux | >=1000Lux | >=1000Lux |
| Power | 1050W | 1350W | 1550W | 1900W |
| Tap | Water Tap:1 ;Gas Tap: 1 (Optional) |
| Socket | Two,Waterproof,total consumption:500w |
| Display | LCD display |
| Control System | Microprocessor |
| Airflow System: | 0 air recirculation,100% air exhaust |
| Exhaust Duct | 4meters PVC duct,diameter: 300mm |
| Material | Work zone interior is made of 304 stainless steel
Body:cold rolled steel with anti-bacteria powder |
| Base Height | 635 mm |
| Caster Wheel | Universal wheel with brake and leveling feet |
| Electrical | 110~240V/50~60Hz (optional) |
| N.W. | 275kgs | 320kgs | 350kgs | 390kgs |
| G.W. | 350kgs | 360kgs | 440kgs | 470kgs |
| Main Body Package/mm | 1250*1050*1870 | 1450*1050*1870 | 1640*1045*1860 | 1940*1050*1860 |
| Exhaust Blower Package/mm | 1060*970*580 |
| Standard Parts | Main Body,Bottom stand,Remote control, Foot switch,2 UV lamps and Fluorescent Lamp,exhaust duct, exhaust blower,sockets |
| Option Items | Armrest, Air curtain tester, Formalin fumigation sterilizer,Ammonium hydrogen carbonate
neutralizer,infrared sterilizer |
Our mission is to supply solution for Safety and Application for human health as we have always done during the past. For this mission, Dragon Group has developed the complete solution for Cold Chain Medical, Bio-safety and also got some achievements in line of Clinic and First Aid products. HEPO INTERNATIONAL was invested for settling the increasing demand for productivity, the international sales and logistics for our group. We mainly supply the reliable products for domestic health during the past 8 years, and now we focus on the world health more and more. HEPO INTERNATIONAL will bear this mission and walk towards it closer and closer.
By the end of 2012, we have established branches in Henan, Shandong, Hunan. The annual output for cold chain medical equipments is more than 200, 000.00 units and 100, 000.00 units around for Bio-safety products. The staff quarters has been arrived 1200 square meters. All our factories have adopt the standard of ISO: 9001: 2008 and ISO13485 quality management system based on domestic relative production standard.
Our Products: Solution for Cold Chain Medical, Solution for Biosafety Products and Lad Construction, Solution for Clinical and Solution for First Aid Products. Through imported famous production equipment from Italy, Switzerland and Japan, etc to keep the excellent performance for our products. And the cooperations with famous universities and scientific research institution make us do better in high and new technology and got award for patent of utility model in many zones.
Our Success: We have able to help customers establish the intelligentize and remote control for cold chain medical, and the solution for high standard laboratory construction. We have done successful projects in U. K., Holland, Australia, South Africa, Algeria, Pakistan, etc.
