Factory Supply Full Down Draft Auto Industrial Spray Painting Booth Cabinet
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
GL6-CE |
| Door Width(M): |
3.0 |
| Door Height(M): |
2.66 |
| Air Flow (M3/H): |
30000 |
| Lighting System: |
Upper Light+Side Light |
| Filters: |
High Efficiency Filter |
| Color: |
Red Blue Orange White |
| Usage: |
Car Painting Baking |
| Vehical Suited: |
Saloon Car |
| Warranty: |
Yes |
| Heating System: |
Riello Brand Diesel Burner/Gas Burner |
| Certification: |
GS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Spray Booth |
| Brand: |
Guangli |
Product Description
Factory Supply Full Down Draft Auto Industrial Spray Painting Booth CabinetGL6-CE Spray Booth Description--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--One 11kw intake fan and one 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,4m straight chimney and 2 small bends.
--Electrical VCD.One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello /RG5S Burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pcs of air mouth filter.
--Upper light:10sets,4*40w per set.side lights:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking,phase-locking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying. | Model | GL6-CE |
| External size (m)(LxWxH) | 7.0x5.6x3.5 |
| Internal size (m)(LxWxH) | 6.9x3.9x2.7 |
| Entrance width(m) | 3.0 |
| Entrance height(m) | 2.66 |
| Fan capacity( m 3 /h ) | 30000 |
| Air velocity (m/s) | 0.3-0.5 |
| Working Temperature(ºC) | 20-80 |
| Color | Orange Blue Red White or Client's Requirements |
| Exhaust type | Full-undershot,Bilateral,Semi-down,Unilateral etc |
| Water-based paint device | As option |
| Oil consumption (L/unit) | 6-8 |
| Power (kw) | 25 |
| Suitable Automobile Type | Saloon Car |

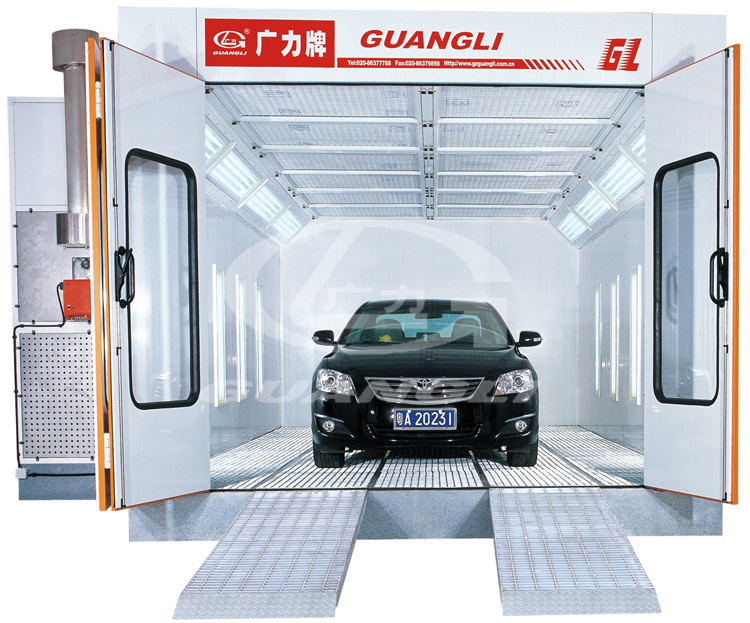

GL6-CE Spray Booth Show
Why Choose Us 1.More than 20-year experience in Spray booth and car lift field. 2.Superb unique technology and Automatic production line.3.Large order can be placed.4.Advanced equipment and exquisite workmanship.5.Durable and reliable.6.Excellent pre-sales and after-sales service.Company ProfileGZ GUANGLI EFE Co., Ltd is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
GZ GUANGLI EFE Co., Ltd is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience. Founded in 1994, Guangli has our own enterprise headquarters and new factory, which covers 58, 000M2 of grounding area and 36, 000M2 of building area. All our Spray booth, painting booths and car lifts have passed the CE certificate, CCS certificate and our company has passed ISO9001. Our products have been used in many car manufacturers' and thought highly of: Guangzhou Honda,
Dongfeng Honda, FAW Toyota, Dongfeng Peugeot, Dongfeng Nissan, BMW South China etc.

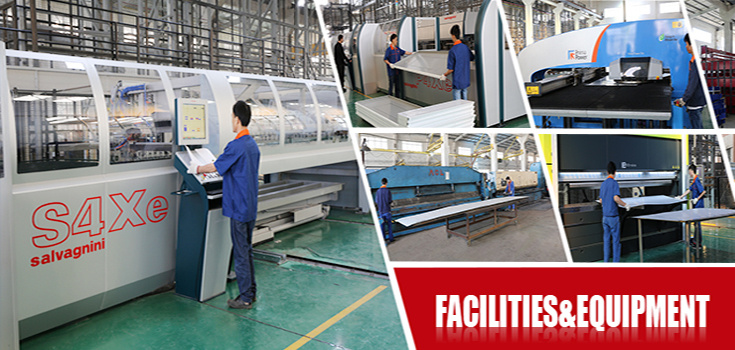

EquipmentWe adopted the most advanced plate flexible production line imported from Italy, which take the absolutly advantages in the Electromechanicl field, can be called as the pioneer in the sheet metal industrial.

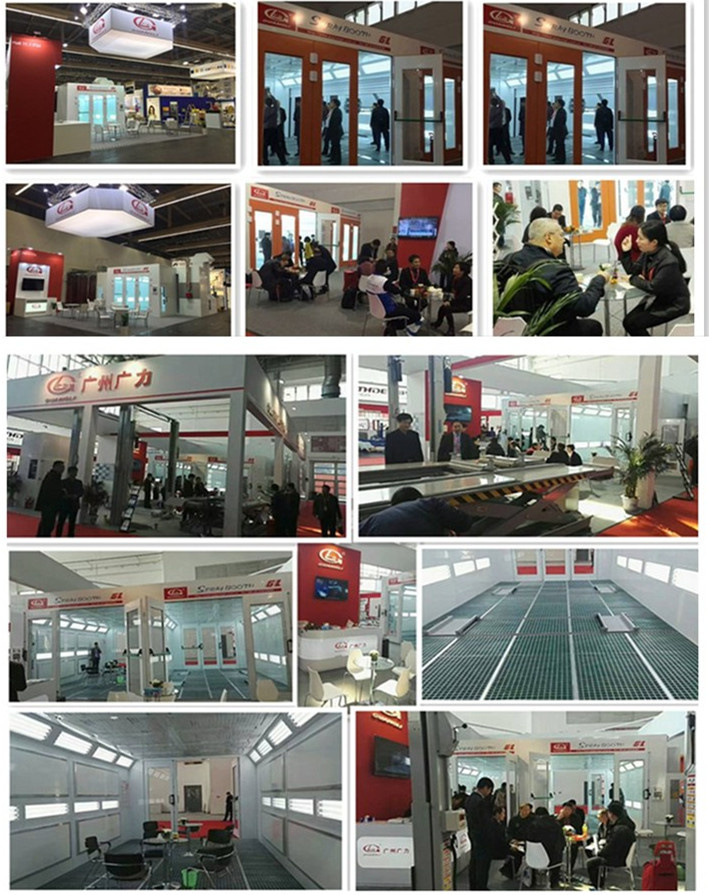

Exhibitions
FAQ1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays. Contact Information:Tel:+86-20-86378972
Mobile +86 13925061383
Website:www.gzguangli.com
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. Is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
Ritian Electromechanical Engineering Facilities Co., Ltd. Is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
