China Guangli Factory Directly Supply Car Equitment Spray Baking Booth Cabinet with Good Pressure Lock for Safe

China Guangli Factory Directly Supply Car Equitment Spray Baking Booth Cabinet with Good Pressure Lock for Safe
Price: US $ 2000-25780/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: GL4000-A3
Door Width(M): 3.0
Door Height(M): 2.66
Air Flow (M3/H): 30000
Lighting System: Upper Light and Side Light
Filters: High Efficiency Filter
Color: Red Blue Orange White
Usage: Car Painting Baking
Vehical Suited: Saloon Car
Warranty: Yes
Heating System: Riello Brand Diesel Burner
Certification: GS
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Type: Painting Spray Booth
Brand: Guangli

Product Description

China GuangLi factory directly supply car equitment spray baking booth cabinet with good pressure lock for safe

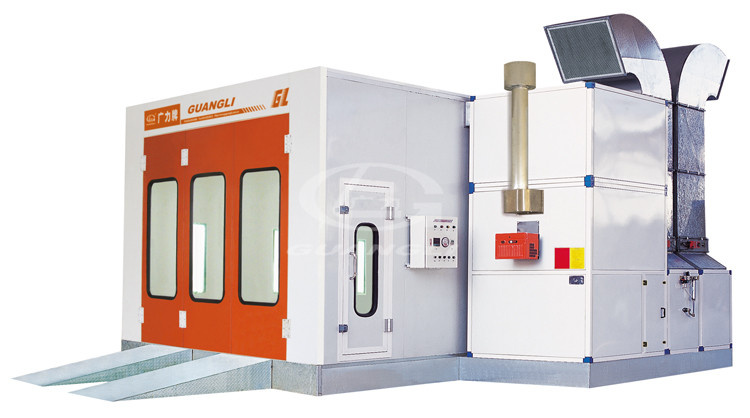

Guangli Spray Booth Description

--Wall panel :sandwich style,δ=50mm,rock wool available as required.
--Basement :steel strucutre,full grids.
--Ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--Water soluable paint with hot-air acceleration system: 1 set
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust /intake damper,electrical VCD as optional.  One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello /RG5S burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set. side light:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking, phase-locking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
ModelGL4000-A3
External size (m)(LxWxH)7.0x5.6x4.0
Internal size (m)(LxWxH)6.9x3.9x2.7
Entrance Width(m)3.0
Entrance Height(m)2.66
Fan capacity( m3 /h )30000
Air velocity (m/s)0.3-0.5
Drying Temperature20-80
Oil consumption (L/unit)6-8
Power (kw)26
Suitable Automobile TypeSaloon Car

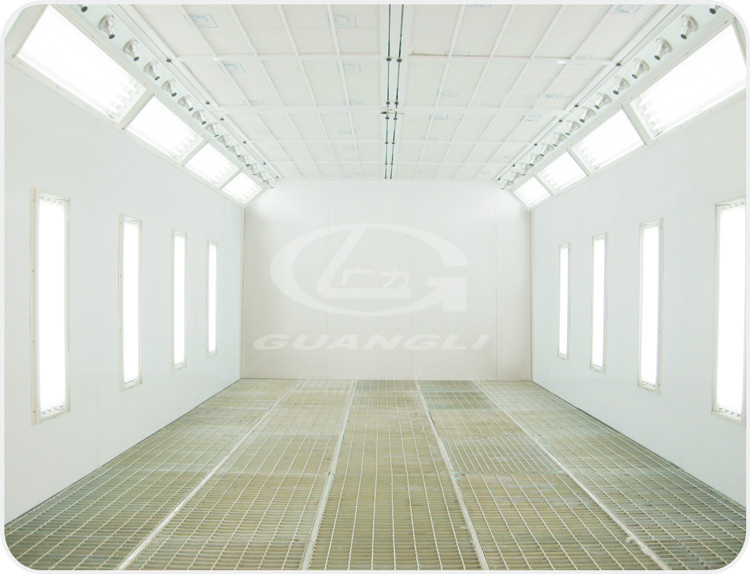

Guangli Spray Booth Show

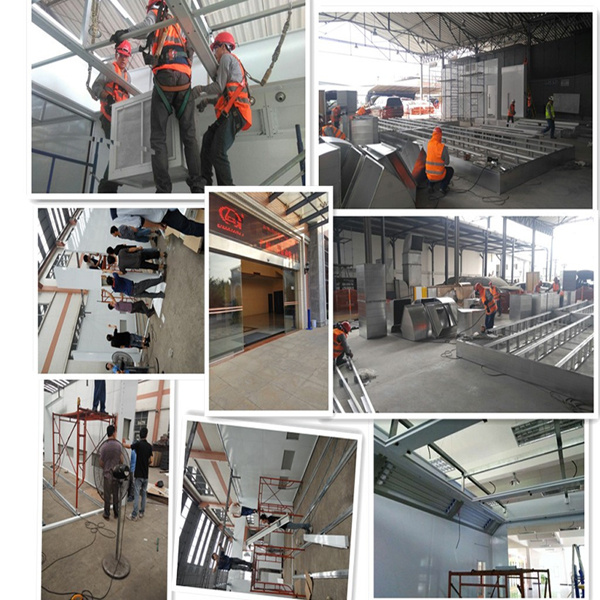

Real Case

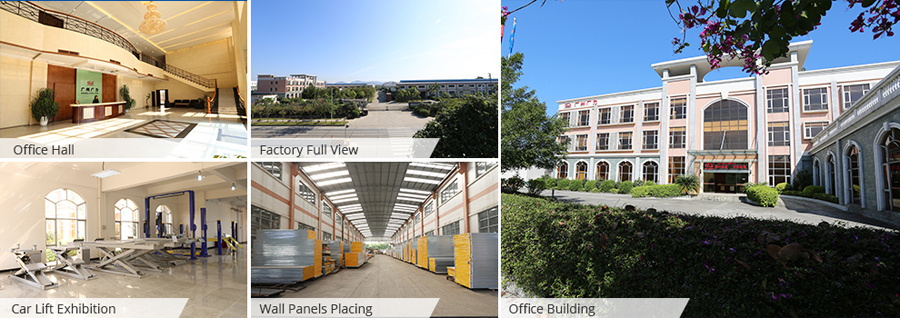

Factory Show
Founded in 1994, GUANGLI has our own enterprise headquarters and production base, which covers
58,000M2 of grounding area and 36,000M2 of building area. Now the largest one in South China in this
field, having a good reputation among Chinese
 auto-maintenance enterprise.
Our main products contain spray/baking booths, auto car lifts, prep rooms,painting mixing rooms,auto powder coating lines etc. Our products have CE certificates and our company has passed ISO9001.

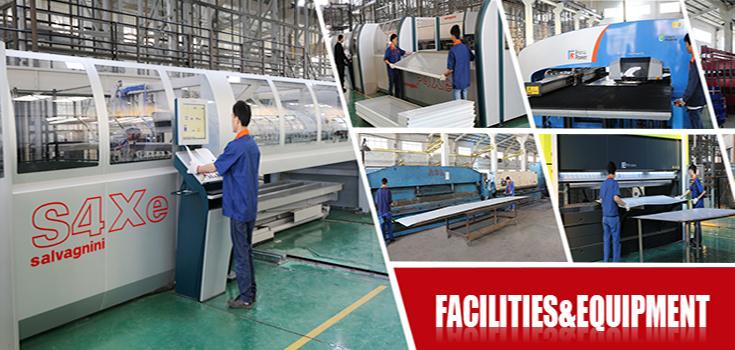

Equipment
We have the most advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.


Exhibitions


FAQ

1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.


Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.

Warmly welcome to Contact:
Sunnie Di
Tel:+86-20-86378972
Mobile :+86 13925061383
Website:www.gzguangli.com
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. Is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D

Team and material sources, our products are excellent in performance and craftsmanship.

We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.

Ritian Electromechanical Engineering Facilities Co., Ltd. Is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
