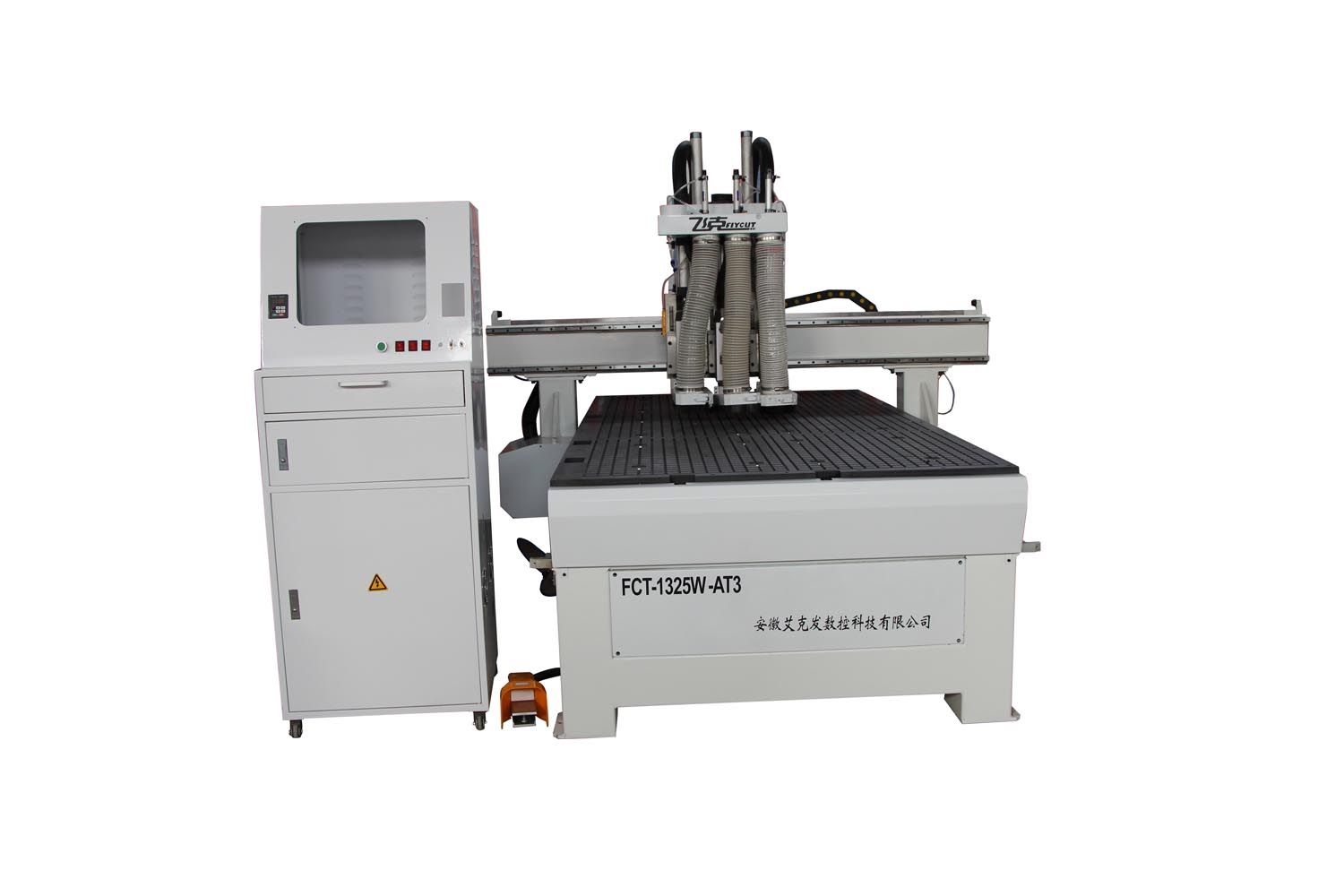

Engraving and Cutting Wood CNC Router

Prod Model:	FCT-1325W-AT3
Model:	Fct-1325W-At3
Working Size:	1300*2500mm
Control System:	Nc Studio
Spindle Power:	Air 6kw, 3.5kw*2
Motor Drive:	Hybrid Servo
Transmission:	Xy Gear Rack, Z Ball Screw
Rails:	Taiwan PMI
Table:	Vacuum Table
Spindle Layout:	Horizontal
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO
Spindle Number:	Threee Spindles

Product Description

Engraving and Cutting wood CNC Router

Features:

1.This machine use 3 different tools for carving different designs on wood, no need to change tools manully, easy to operate machine and making programme.

2.The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.

3.The special instruments to eliminate welding stress, high-precision planer ensure the precision and no deformation.

4.The major machine body makes the stability and no shacking in high speed.

5.XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.

6.The professional mechanical design, scientific structure and generous appearance.

7.XYZ axis use anti-dust system, prevent dust during working, make sure the long lifspan of spare parts.

8.High quality driver motors, spindle motors, cables, inverters,etc.

9.High Accuracy, High Torsion and Professional Gear Box without any gaps, ensure high engraviing accuracy.

10.Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Appplication:

Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.

Special configuration:

Servo motor and driver, large models, imported spindles, etc.

Technical parameters:


Model	FCT-1325W-AT3
Table size	1300×2500mm
Working size	1300×2500mm
Spindle power	NO.1 spindle 6kw air cooling,NO.2 spindle 3.5kw air cooling
Z axis structure	Independent Z axis,3 air cylinders,high accuracy ball screw
Spindle rotate	0-18000rpm
Motor driver	Hybrid servo
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	XY gear rack, Z ball screw
XYZ rails	Taiwan PMI
Mechanical accuracy	less 0.03/300mm
Table	Vacuum table
Max speed	30m/min
Engraving speed	15m/min
Working voltage	380V/50Hz
Net weight	1300kg



Our services:

1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our factory.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.We will solve your problems immediately by E-mail, fax, Skype ,wechat,whatsaap,telephone.
6.Machine has been adjusted before delivery.
