| Prod Model: |
11237BBC86 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size: |
1300*790*2310 |
| Internal Size: |
1200*600*770 |
| Work Surface Height: |
750mm |
| Max Opening: |
480mm |
| HEPA Filter: |
Two, 99.999% Efficiency at 0.3um |
| Package Size: |
1480*1000*1760mm |
| Application: |
School Lab |
| Advantage: |
Easy Operation |
| Warranty: |
1 Year |
| Certification: |
Ce, ISO9001, SGS |
| Material: |
Work Zone Interior Is Made of Three Pieces of 304 |
| Type: |
Laboratory Parts |
Product Description

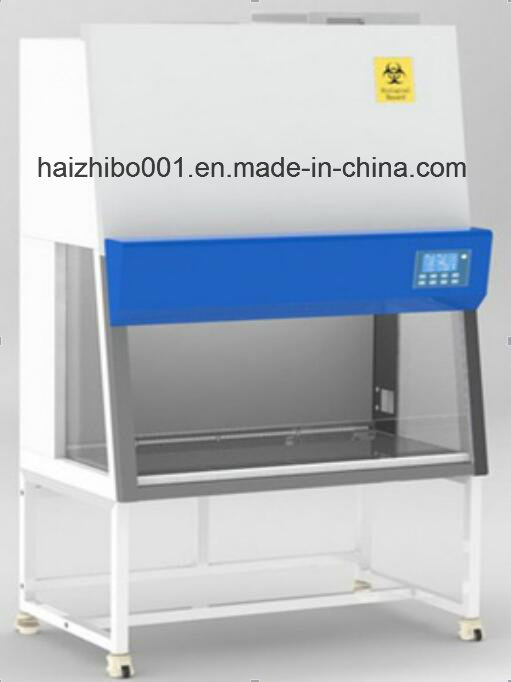

Class II Biosafety Cabinet 11237BBC86 delivers maximum safety, comfort and convenience. Featuring an advanced design for easy operation and maximum safety, it could be used wherever protection is of paramount importance in safety levels 1 to 3, including research, pharmaceutical quality control labs, pharmacies, clinics and hospitals.
Main Advantages:
1. The hinged front window can be fully opened for easy and thorough cleaning of the unobstructed rear wall and all interior surfaces.
2. The transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
3. The 10° Sloped front allows an ergonomic, fatigue-free working posture.
4. The front window is motorized for convenient, one-hand operation. The window control is mounted on the front control panel.
5. When fully lowered the front window, it seals automatically against a closed-cell peripheral gasket to isolate the interior and prevent escape of contaminants during decontamination.
6. Front window can be closed manually in case of power failure.
Certificates:
ISO9001, ISO14001, ISO13485, CE, EN12469: 2000, MET
| Models | 11237BBC86 |
| External Size | 1300*790*2310 |
| Internal Size | 1200*600*770 |
| Work Surface Height | 750mm |
| Max Opening | 480mm |
| Tested Opening | Safety Height less than or equal to 200mm |
| Average Airflow Velocity | inflow: 0.53 m/s (105 fpm);
Down flow: 0.36 m/s (105 fpm) |
| Airflow Volume | inflow:430 m3 / h (270 cfm)
downflow:720 m3 /h(430 cfm)
exhaust:360 m3 /h(220 cfm) |
| HEPA Filter | Two,99.999% efficiency at 0.3um |
| Noise | EN12469 less than or equal to 60dB |
| Fluorescent Lamp Intensity | great than or equal to 1000lux |
| UV Lamp(Optional) | 30W germicidal UV lamp.Emission of 253.7 nanometers for most
efficient decontamination |
| Material | Work zone interior is made of three pieces of 304 stainless steel;
Main Body: Cold-rolled steel with anti-bacteria powder;
Side and front window:Two-layer laminated toughened glass |
| Electrical(220-240V,AC,50HZ) | Cabinet consumption/Amp:430W/2.1A
Total load of 4 sockest: less than or equal to 500W
BTU/Hr:1466 |
| Standard Accessory | Waterproof sockets *4,Base stand,Remote control,Fluorescent lamp,Drain valve |
| Optional Accessory | Armrest,Airflow tester,Formalin fumigation sterilizer,Infrared sterilizer |
| Gross Weight | 300kgs |
| Package Size | 1480*1000*1760mm |
