Yueqing Joymell Electric Co., Ltd. >> Electric Power Outdoor Stainless Steel Cabinet for Switches

Electric Power Outdoor Stainless Steel Cabinet for Switches

Electric Power Outdoor Stainless Steel Cabinet for Switches
Price: US $ 5.4-80/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: JMX
Model: Jmx Power Enclosure
Material: Normally Cold Rolled Steel, Can Others
Plate: with Plate
Lock: with Lock
Thickness: Normally 0.8, 1.0, 1.2, 1.5mm, Per Customers
Color: Customized, Normllay Grey Ral7032
Protection: IP66 to En60529
MOQ: 1PCS If Normal Size
Type: Power
Structure: Fixed Board
Certification: Ce
Operation Voltage: Low Voltage and High Voltage
Size: Customized
Application Range: Power Plant, Home, Factory, City Power, etc.
Shell Material: Metal(Stainless Steel, Cold-Rolled Steel, etc)
Shell Protection Grade: IP66, IP65, IP55
Brand: Joymell

Product Description

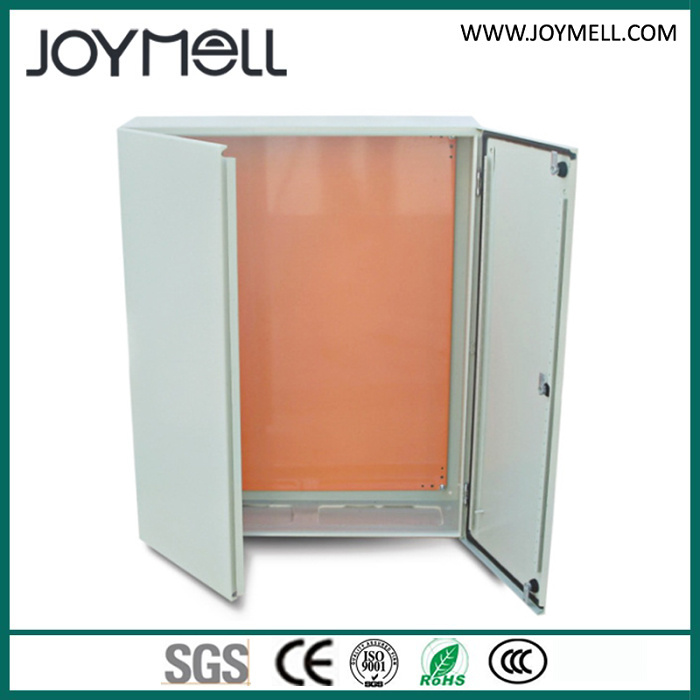

Electric Power Outdoor Stainless steel Cabinet for switches



1.Metal Power Distribution box introduction:
---Application:
   Used in Generator system as Generator cabinet, power plant, home or city distribution box with IP66 waterproof grade, etc...
---Standard configuration:
   Enclosure and door
   Mounting plate
   Bar Lock
   Polyurethane door seal
   Cable gland plate and gasket
---Degree of protection:
   IP66 to EN60529
---External mechanical impact resistance:
   IK10
  Surface treatment:
  Textrured epoxy polyester powder coating
---Material and color:
   Body and front door:Cold roll steel to paint in RAL7032
---Mounting plate:
   Galvanized steel or plain steel to paint in RAL2004 smooth finish

2. Sizes:  Sizes can be customized
ModelH (mm)W(mm)D(mm)Other sizes can be
customized.

Color can be
customized
JMX403015400300150
JMX403020400300200
JMX404020400400200
JMX503020500300200
JMX503025500300250
JMX504020500400200
JMX504025500400250
JMX504030500400300
JMX604020600400200
JMX604025600400250
JMX605020600500200
JMX605025600500250
JMX606025600600250
JMX606030600600300
JMX705025700500250
JMX705030700500300
JMX806025800600250
JMX806030800600300
JMX10060251000600250
JMX10060301000600300
JMX10080251000800250
JMX10080301000800300
JMX12080251200800250
JMX12080301200800300

3.Packing: Carton Packing.

4. Production line and delivery time:
Normal sizes with some stock, we have big capacity can provide fast delivery time 3-7days around. If a 40HQ container abut 10days.

5. Other product series:
Manual transfer switch1A~1600A, 3P/4P.
Automatic Transfer switch1A~3200A, 2P/3P/4P.
Metal power distribution boxMetal box, size can color can be customized.
Plstic boxDifferent ways, competitive price,  welcome to contact
Surge protectorB,C,D Class, AC, DC type you can choose. Different types and discharge current you choose.
Power supplyHot used in Gepenerator system, 120W 12/24V. And other types
Current transformerDifferent size you can choose, quality guarantee, hot used in Generator cabinets.
Push buttonMetal or plastic, different types for power cabinet.

6. Q&A:
1) Q:Your company ? And products?
     A:   Joymell is factory for ATS, Enclosure/Distriution box, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
2)  Q:   What's the shipment?
      A:   We have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3)   Q:   Your address ?
      A:    Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4)   What's the ATS guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5)    What's about MOQ? Delivery time ?
       A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6)    What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7)    What's your contact information ?
         A: Website: www.joymell.com,   welcome to contact us anytime.
Welcome your inquiry ^!^





Joymell Electric Co., Ltd, with brand Joymell, specialized in Manufaturing and International sourcing service.

Main products including Automatic Transfer switch, Manual transfer switch, Generator Enclosure box, Power supply, Current transformer, Surge protector, Circuit breaker, Cable glands, etc, are following international standards CE IEC, TUV, ISO9001 etc.

We have hundreds of brother companies providing good sources, can be your sourcing agent in China to save cost and a whole series service.

Joymell with experienced Quality management engineers and system, to make sure the products we produced and sourced are with high quality to support customers.

Joymell is a company full of love, we believe enjoy work enjoy life. To provide employees best working conditions, and best treatments. training and learning opportunities to make employees improve themselves.

Joymell also attends some social acitivities, to help old and orphan etc. To take as much social responsibility as can.

Our target is to provide customers as much profit as can, and first-time service. To make employees enjoy work enjoy life.

Welcome to contact Joymell.
