Prod Model: |
JMX |
Model: |
Smx Distribution Board |
Material: |
Normally Cold Rolled Steel, Can Others |
Plate: |
with Plate |
Lock: |
with Lock |
Thickness: |
Normally 0.8, 1.0, 1.2, 1.5mm, Per Customers |
Color: |
Customized, Normllay Grey Ral7032 |
Protection: |
IP66 to En60529 |
MOQ: |
1PCS If Normal Size |
Type: |
Power |
Structure: |
Fixed Board |
Certification: |
Ce |
Operation Voltage: |
Low Voltage and High Voltage |
Size: |
Customized |
Application Range: |
Power Plant, Home, Factory,City Power, etc. |
Shell Material: |
Metal(Stainless Steel, Cold-Rolled Steel, etc) |
Shell Protection Grade: |
IP66, IP65, IP55 |
Brand: |
Joymell |
Product Description

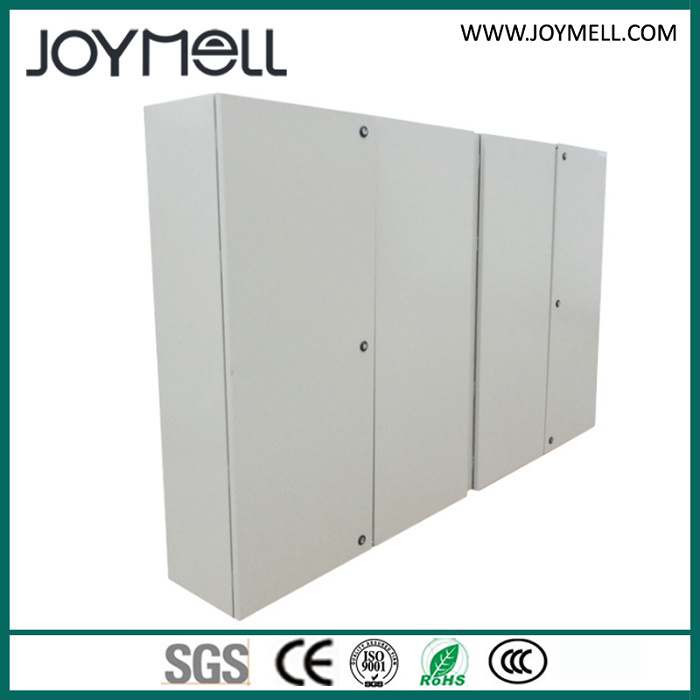

IP66 Electric Metal Power distribution cabinet
1.Metal Power Distribution box introduction:
---Application:
Used in Generator system as Generator cabinet, power plant, home or city distribution box with IP66 waterproof grade, etc...
---Standard configuration:
Enclosure and door
Mounting plate
Bar Lock
Polyurethane door seal
Cable gland plate and gasket
---Degree of protection:
IP66 to EN60529
---External mechanical impact resistance:
IK10
Surface treatment:
Textrured epoxy polyester powder coating
---Material and color:
Body and front door:Cold roll steel to paint in RAL7032
---Mounting plate:
Galvanized steel or plain steel to paint in RAL2004 smooth finish
2. Sizes: Sizes can be customized
Model | H (mm) | W(mm) | D(mm) | Other sizes can be customized.
Color can be customized |
JMX403015 | 400 | 300 | 150 |
JMX403020 | 400 | 300 | 200 |
JMX404020 | 400 | 400 | 200 |
JMX503020 | 500 | 300 | 200 |
JMX503025 | 500 | 300 | 250 |
JMX504020 | 500 | 400 | 200 |
JMX504025 | 500 | 400 | 250 |
JMX504030 | 500 | 400 | 300 |
JMX604020 | 600 | 400 | 200 |
JMX604025 | 600 | 400 | 250 |
JMX605020 | 600 | 500 | 200 |
JMX605025 | 600 | 500 | 250 |
JMX606025 | 600 | 600 | 250 |
JMX606030 | 600 | 600 | 300 |
JMX705025 | 700 | 500 | 250 |
JMX705030 | 700 | 500 | 300 |
JMX806025 | 800 | 600 | 250 |
JMX806030 | 800 | 600 | 300 |
JMX1006025 | 1000 | 600 | 250 |
JMX1006030 | 1000 | 600 | 300 |
JMX1008025 | 1000 | 800 | 250 |
JMX1008030 | 1000 | 800 | 300 |
JMX1208025 | 1200 | 800 | 250 |
JMX1208030 | 1200 | 800 | 300 |
3.Packing: Carton Packing.
4. Production line and delivery time:
Normal sizes with some stock, we have big capacity can provide fast delivery time 3-7days around. If a 40HQ container abut 10days.
5. Other product series:
Manual transfer switch | 1A~1600A, 3P/4P. |
Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
Metal power distribution box | Metal box, size can color can be customized. |
Plstic box | Different ways, competitive price, welcome to contact |
Surge protector | B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose. |
Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
Current transformer | Different size you can choose, quality guarantee, hot used in Generator cabinets. |
Push button | Metal or plastic, different types for power cabinet. |
6. Q&A:
1) Q:Your company ? And products?
A: Joymell is factory for ATS, Enclosure/Distriution box, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
2) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3) Q: Your address ?
A: Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4) What's the ATS guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5) What's about MOQ? Delivery time ?
A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6) What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7) What's your contact information ?
A: Website: www.joymell.com, welcome to contact us anytime.
