Shenzhen Superb Heater Technology Co., Limited >> Electric Heater/Far Infrared Ceramic Heating Lamp

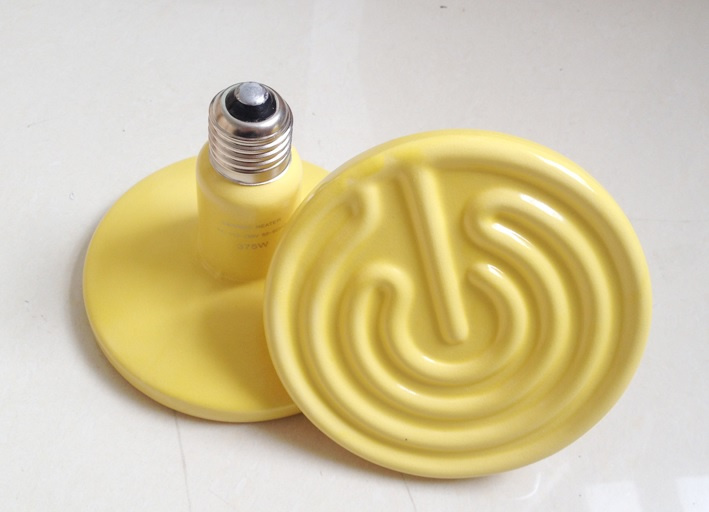

Electric Heater/Far Infrared Ceramic Heating Lamp

Electric Heater/Far Infrared Ceramic Heating Lamp
Price: US $ 10/Piece
Min Order: 20/Piece
Pay Type: T/T,Western Union
Prod Model: Ceramic Heating lamp
Dimension(L*W*H: Custom Size
Voltage: 380 V
Power(W): 100W-2000W
Warranty: 1 Year
After-Sales Service Provided: Overseas Third-Party
Color: White/Black/Yellow
Accessory: Adjustable Thermostat
Life Span: >3000 Hours

Product Description

Electric Heater/Far Infrared Ceramic Heating lamp



ceramic infrared heaters are made out of ceramics. These emitters have a Nichrome (NiCr) wire directly casted into ceramic and they produce temperatures from 300 deg F to 750 deg F. The wavelength produced with at these temperatures is between 3 6 microns. They feature a glazed surfaced to avoid for protection from oxidation and corrosion. Typically ceramic infrared heaters need 10 15 minutes to reach full operating temperature. A thermocouple can be casted directly into the ceramic. Ceramic infrared heaters come in different colors which may indicate the temperature range. Some of ceramic infrared  heaters also change color when hot in order to easily recognize failed elements in a heater bank. They come in different shapes. A flat surface spreads the infrared energy over a wider area, while a concave surface focuses the energy more to a desired spot.Ceramic infrared heaters are used for comfort heating, saunas and for industrial heating application requiring lower temperatures.






Main technical parameter and property:

1. Rupture strength for base body:

440Kg/cm2

2.Resistance in common temperature:

1012 ohm 0cm

3.Property:good chemical stability;strong causticity-resistance;perfect oxidation-resistance

4.Heat losing in the non-radiation surface is small

5.The base body is heated to 800 C and put in cold water repeatly for ten times and no cracking.

6.The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage.

7.The max radiance of element>0.9

8.The effect of energy saving is obvious,increasing 10-25% compared with silicon carbide element

9.The life span can prolong more than a few times compared with silicon carbide element.



Specification:

Size(mm)

Shape

Power(Kw)

Size(mm)

Shape

Power(Kw)

245×65

arc

0.25-1.0

300×300×16

flat

0.8-1.5

240×60

arc

0.5-1.0

240×160×16

flat

0.6-1.0

125×65

arc

0.2-0.5

Φ70

disk

0.1-0.2

120×60

flat

0.1-0.325

Φ100

disk

0.2-0.3

120×60

arc

0.1-0.325

Φ140

disk

0.3-0.4

120×120

flat

0.1-0.8

Φ150×Φ100×Φ60

haff

0.25-0.3

120×120

arc

0.1-0.8

125×125

flat

0.4-0.8



Applying domain:



Embedding type ceramic far infrared radiated heating elements are produced based on direct of international advanced technique and many years'research,with high conent of technology,good whole property,cleanness & sanitation,convenient assemble,acid-resistance,erodibility-resistance

Safe use,long life span ect.Widely used in vacuum plastic uptake,food roast, medical treatment and sanitation ect various infrared dryness and roast,solidify ect.They have ideal energy saving effect in the industry such as electron spin,light industry, electromechanical chemical industry, medical treatment,food industry ect and have obvious society benefit and economy benefit.



Sperbheater company can produce based on specification of customer.

Shape:black hollow core,disk,flat plate,arc

Optional Power: 100W-2000W(based on size)

Other:thermocouple,probe of thermocouple






Product Feature

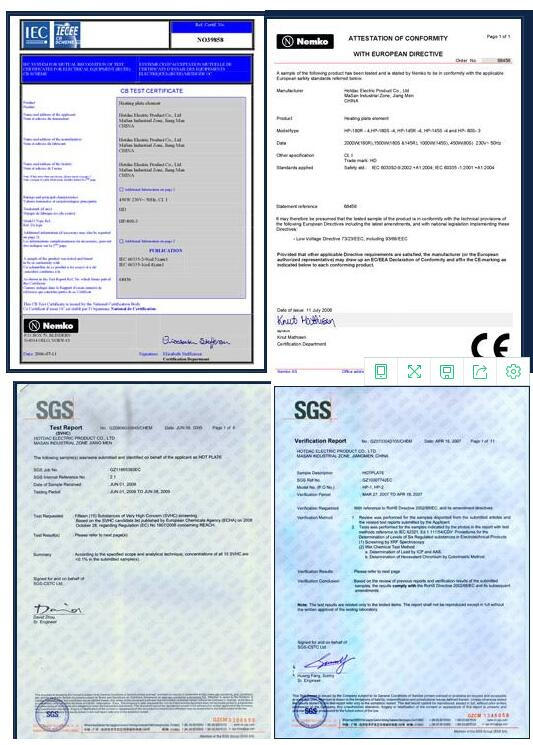

Our certificate

OUR ADVANTAGES:

1.Minimum order: 3pcs

2.Delivery time : in stock 1-2days ,out stock 3-7days

3.More than 50  different sizes stock


4.Products are divided into two grades

A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.

B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers

5.Provide OEM service.

6.Quality Assurance:Under normal conditions consistent with the design range ,

A grades 365days

B grades 180days



Superb Heater Technology has been focused on the production of Ceramic Heater since 1985, which is well-known as one of the leading manufacturers and suppliers of industrial screw plug bendable immersion tubular heaters heating elements. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.


Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
