Shenzhen Superb Heater Technology Co., Limited >> Coating Applicator Thermocouple Ceramic Infrared Heaters

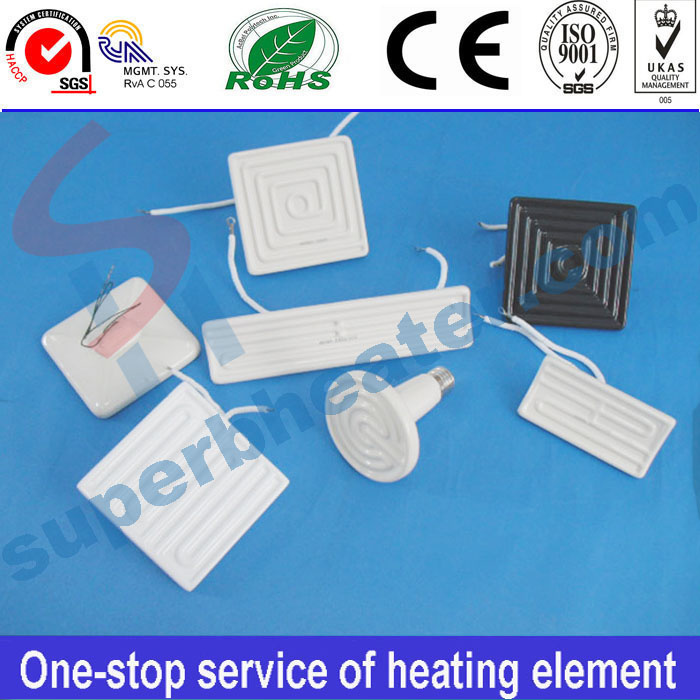

Coating Applicator Thermocouple Ceramic Infrared Heaters

Coating Applicator Thermocouple Ceramic Infrared Heaters
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: Ceramic Infrared Heaters

Product Description

ed (IR) ceramic heater


IRCeramic heater are made out of ceramics. These emitters have a Nichrome (NiCr) wire directly casted into ceramic and they produce temperatures from 300 deg F to 750 deg F. The wavelength produced with at these temperatures is between 3 6 microns. They feature a glazed surfaced to avoid for protection from oxidation and corrosion. Typically ceramic infrared heaters need 10 15 minutes to reach full operating temperature. A thermocouple can be casted directly into the ceramic. Ceramic infrared heaters come in different colors which may indicate the temperature range. Some of ceramic infrared  heaters also change color when hot in order to easily recognize failed elements in a heater bank. They come in different shapes. A flat surface spreads the infrared energy over a wider area, while a concave surface focuses the energy more to a desired spot.Ceramic infrared heaters are used for comfort heating, saunas and for industrial heating application requiring lower temperatures.

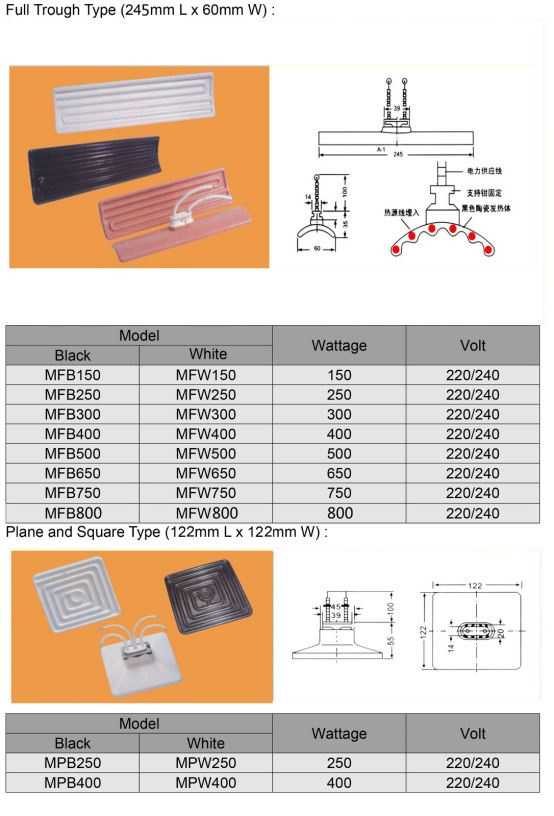

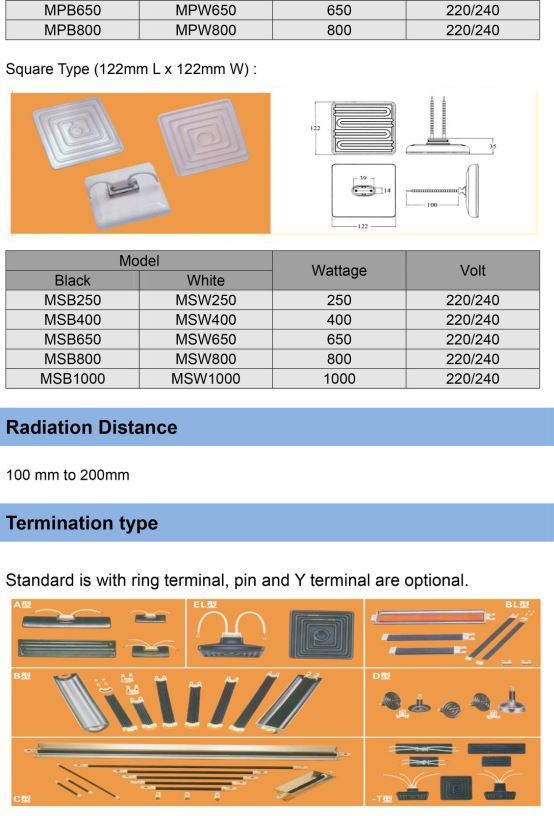

We have standrad size 245*60mm,240*60mm,122*122mm,122*60mm,60*60mm ,then we can do as customer demand size


Size(mm)

Shape

Power(Kw)

Size(mm)

Shape

Power(Kw)

245*65

arc

0.25-1.0

300×300×16

flat

0.8-1.5

240*60

arc

0.5-1.0

240×160×16

flat

0.6-1.0

125*65

arc

0.2-0.5

Φ70

disk

0.1-0.2

120*60

flat

0.1-0.325

Φ100

disk

0.2-0.3

120*60

arc

0.1-0.325

Φ140

disk

0.3-0.4

120*120

flat

0.1-0.8

Φ150×Φ100×Φ60

haff

0.25-0.3

120*120

arc

0.1-0.8

125×125

flat

0.4-0.8



Features

1. Embedding type ceramic far infrared radiated elements apply glaze with high radian,ceramic with good heat and shock property are sintered once by nichrome wire.
2. Heat losing in the non-radiation surface is small.
3. It has energy efficiency and environmental protection benefits
4.The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of powr supply for forty times without damage.

Application

1.Heating in PH environment (for example: Footwear processing, tape, plywood heating).
2.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machin).
3.Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
4.Heating in vertical or half round array (for example: Angle iron,Aluminum windows paint stove) .

Design and produce according to the requirements of customers on operating voltage, power, size, length etc.

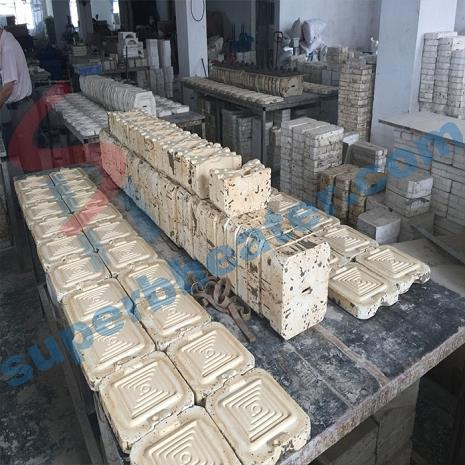

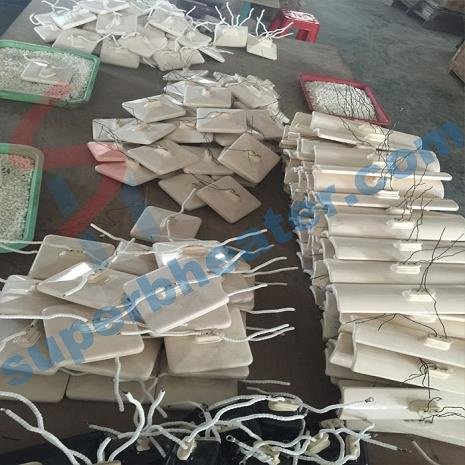

OUR WORK SHOP





Packing and shipment





OUR ADVANTAGES

1.Minimum order: 10pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 50  different sizes stock
4.Provide OEM service.

Superb Heater Technology has been focused on the production of coating applicator thermocouple ceramic infrared heaters elstein -werk quality heaters since 1985, which is well-known as one of the leading manufacturers and suppliers of coating applicator thermocouple ceramic infrared heaters elstein -werk quality heaters. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
