| Prod Model: |
ELE-6090 |
| Voltage: |
220V 1pH |
| Power(W): |
1500 (2.2 Kw for Option) |
| Weight: |
170kg |
| Warranty: |
12 Months for Whole Machine |
| Moving Type: |
Gantry Moving |
| Table Surface: |
T-Slot Table |
| Driver: |
Yako2608 Big Driver |
| Transmission: |
Tbi Ball Screw |
| Orbit: |
Taiwan Hiwin Linear Guide |
| Working Area: |
600X900X150mm |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
Product Description

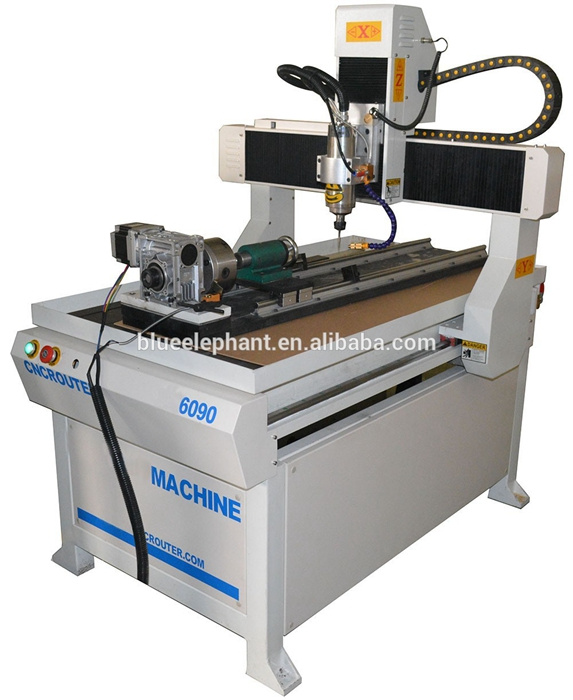

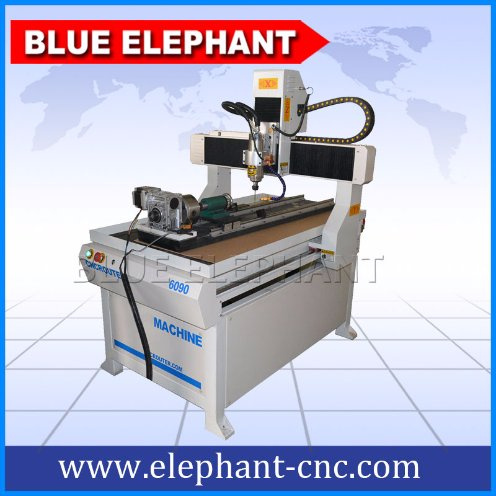

factory supply smart wood 6090 router cnc with promotional price
Configuration:
- Working area: 600mm*900mm*120mm
- Aluminum profile T-slot working table with PVC protection
- 1.5 KW water cooling spindle (Top brand in China)
- Stepping motor system
- TBI Ball screw from Taiwan
- Linear Rail: Taiwan HIWIN Linear Guide for Y axis
- NCSTUDIO control system
- Inverter: 1.5KW FU Ling inverter ( TOP Inverter brand in China)
- Driver: YAKO driver ( TOP Inverter brand in China)
- Cast iron lathe bed
- Mist cooling sprayer and flume for working on metal
- Switch: Japanese OMRON Switch
- Cable: Highly flexible towline; fire-resistant double-sheathed cable.
- Type 3 software
- Voltage: 1PH 220V 50HZ
- Package: plywood case
Parameters:
Model | ELE-6090 |
X,Y,Z travel( mm) | 600x900x120 |
Spindle power | 1.5kw water cooling spindle |
Spindle rotation speed | 0-24000RPM |
Max. Rapid Travel Rate | 9000mm/min |
Max. Working Speed | 6000mm/min |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
X,Y,Z Repositioning Accuracy | ±0.01mm |
Table Surface | T-slot working table |
Transmission | Taiwan TBI Ball Screw |
Drive Motors | stepper |
Controlling system | DSP |
Working Voltage | 220V,1 PH,50/60HZ |

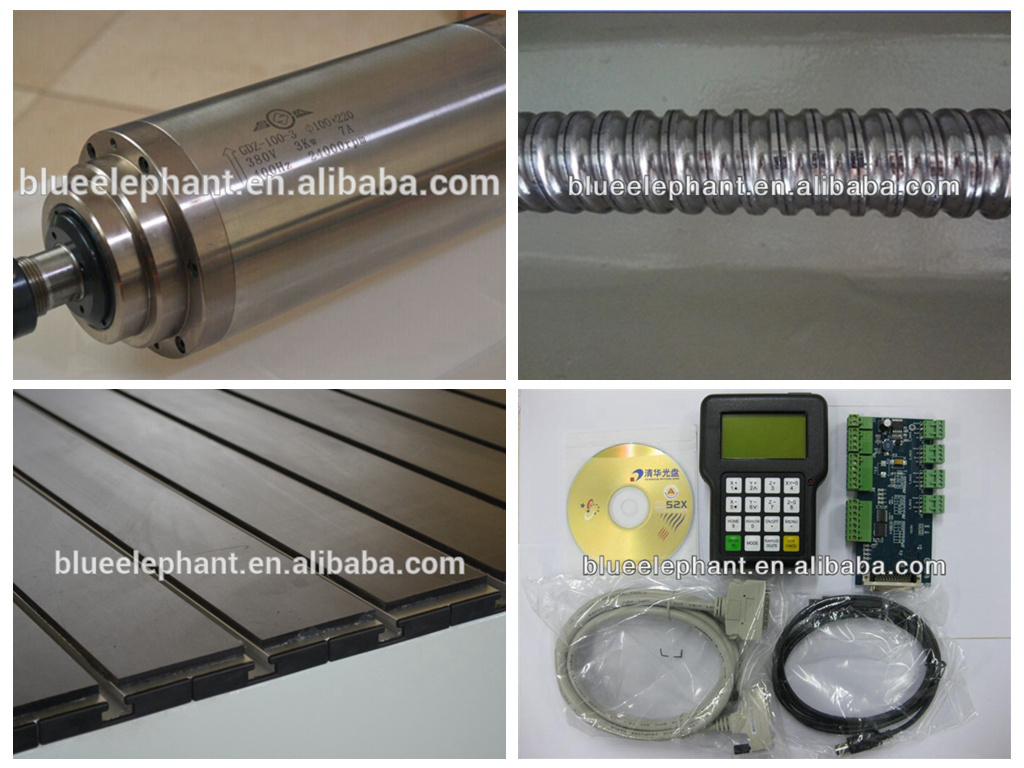

Details:
Application:1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Samples:
After sale service:
1,Within 7 days since your local customs clearance: if the cnc machine's any parts has any problems, we will change it free.
2,Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3,Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4,We offer 24 hours technical support by call, email
5,Our technician can give you remote guide online (Skype or MSN) if you have any question
6,We can record videos of operating the cnc router machine
7,Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Packaging & Shipping
| Packaging Details: | plywood case package for hot-sale cnc wood engraving machine |
|---|
| Delivery Detail: | Shipped in 7 days after payment |
|---|
FAQ:Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
MOQ ?
1 set machine, mixed order is also welcomed.
If you have any needs or problems,please contact me!

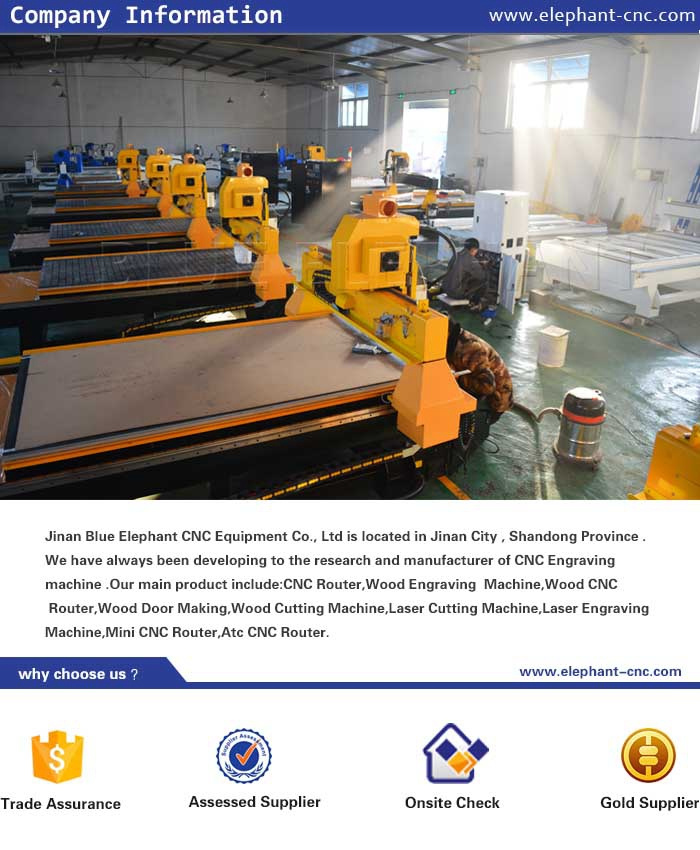

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
