| Price: | US $ 6000-12000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Money Gram |

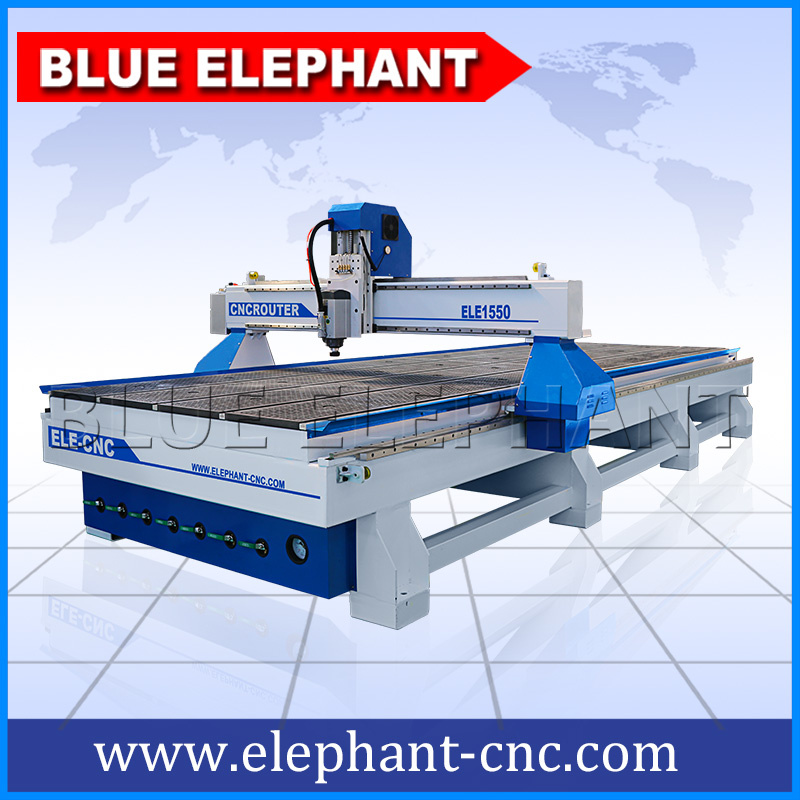

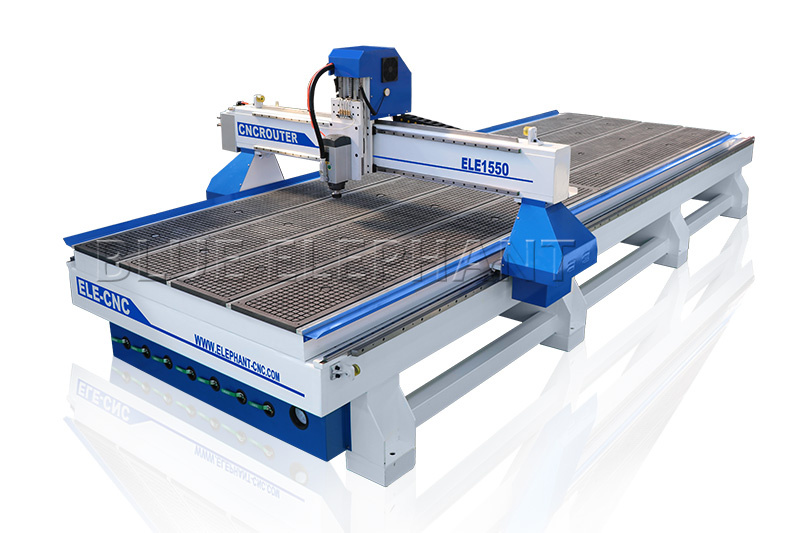

| Prod Model: | ELE1550 |
|---|---|
| Voltage: | AC380V/50Hz |
| Weight: | 1500kg |
| Control System: | Richauto DSP A11 Handle Control |
| Spindle: | Italy Hsd 4.5kw Air Cooling Spindle |
| Motor: | FL118 Stepper Motor |
| Working Area: | 1500X5000X200mm |
| Inverter: | 5.5kw Taiwan Delta Inverter |
| Software: | Ucancam / Artcam/Type3 |
| Vacuum Cleaner: | 3kw Double-Bag Vacuum Cleaner |
| Drive: | Control Strictly 2811 Big Drive |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
Features:
Advantages:
Technical parameters:
Description | Parameter |
X,Y,Z Working Area | 1500x5000x200mm |
Table Surface | T-slot and vacuum working table |
Structure | Industrial class square tube strong structure |
X, Y Structure | 20#Taiwan ABBA Linear guide and helical rack |
Z Structure | Taiwan TBI Ball screw |
X,Y Resolution | <0.01mm |
Spindle Power | 4.5KW Italy HSD air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 stepper motor and YAKO2811 drive |
Inverter | 5.5 kw Taiwan Delta Inverter |
Control System | DSP A11 handle controller with USB port |
Lubrication | Manual Lubrication system |
Tool sensor | Manual tool sensor calibration |
Dust Collector | dust collector with 2 pockets |
Vacuum pump | 4kw germany becker vacuum pump |
Control box | Single Control box |
Option | Oil mist cooling system |
Limit switch | Japan OMRON limit switch for X, Y, Z axis
|
Command Language | G Code |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | ARTCAM 2012 software, (Option: Artcam Type3 Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional Parts:
1.1 Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.
1.2 Spindle cover and Dust collector
They are designed for human operation protection and promise clean table surface, save maintenance time for you.
1.3 Pump
We can provide vacuum pump or water circulation pump for your choice.
1.4 Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.
We can also provide other optional parts according to your needs.
Sample :
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving.
5.Cylindrical object.

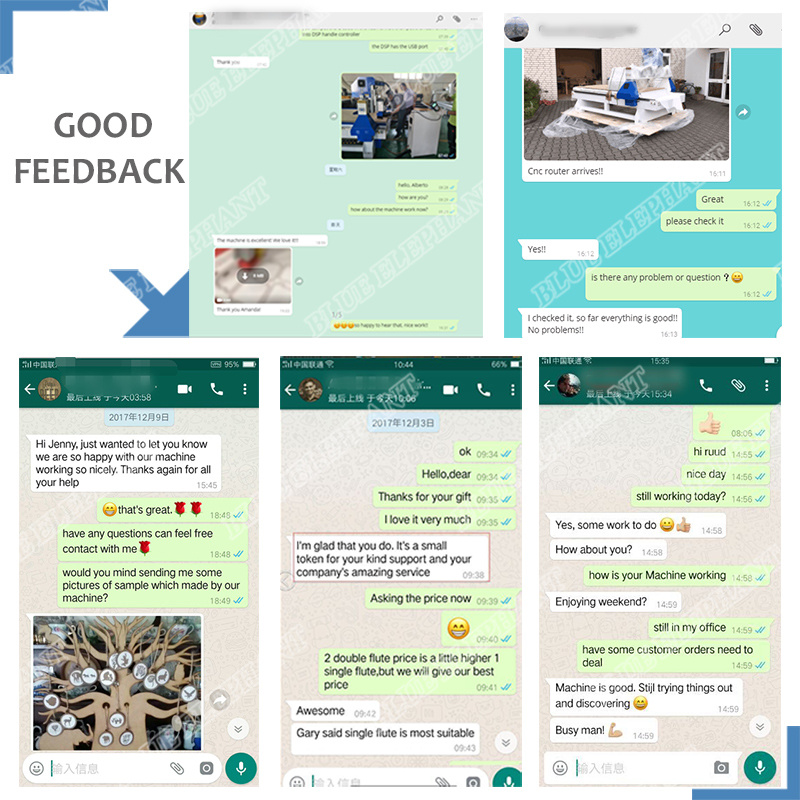

Feedback:
Our Services:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

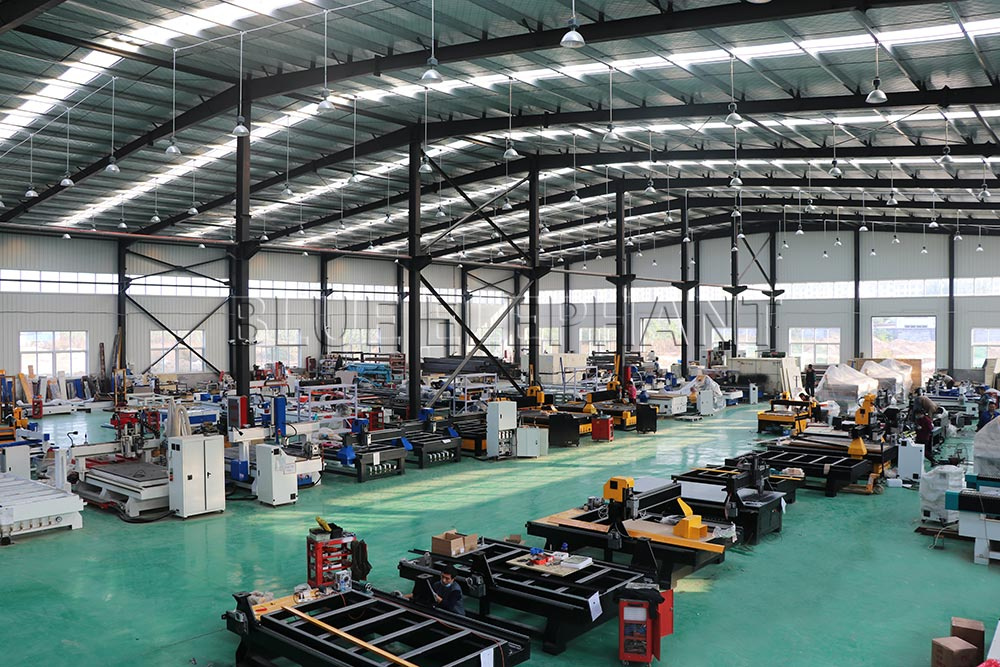

Welcome to our factory:
